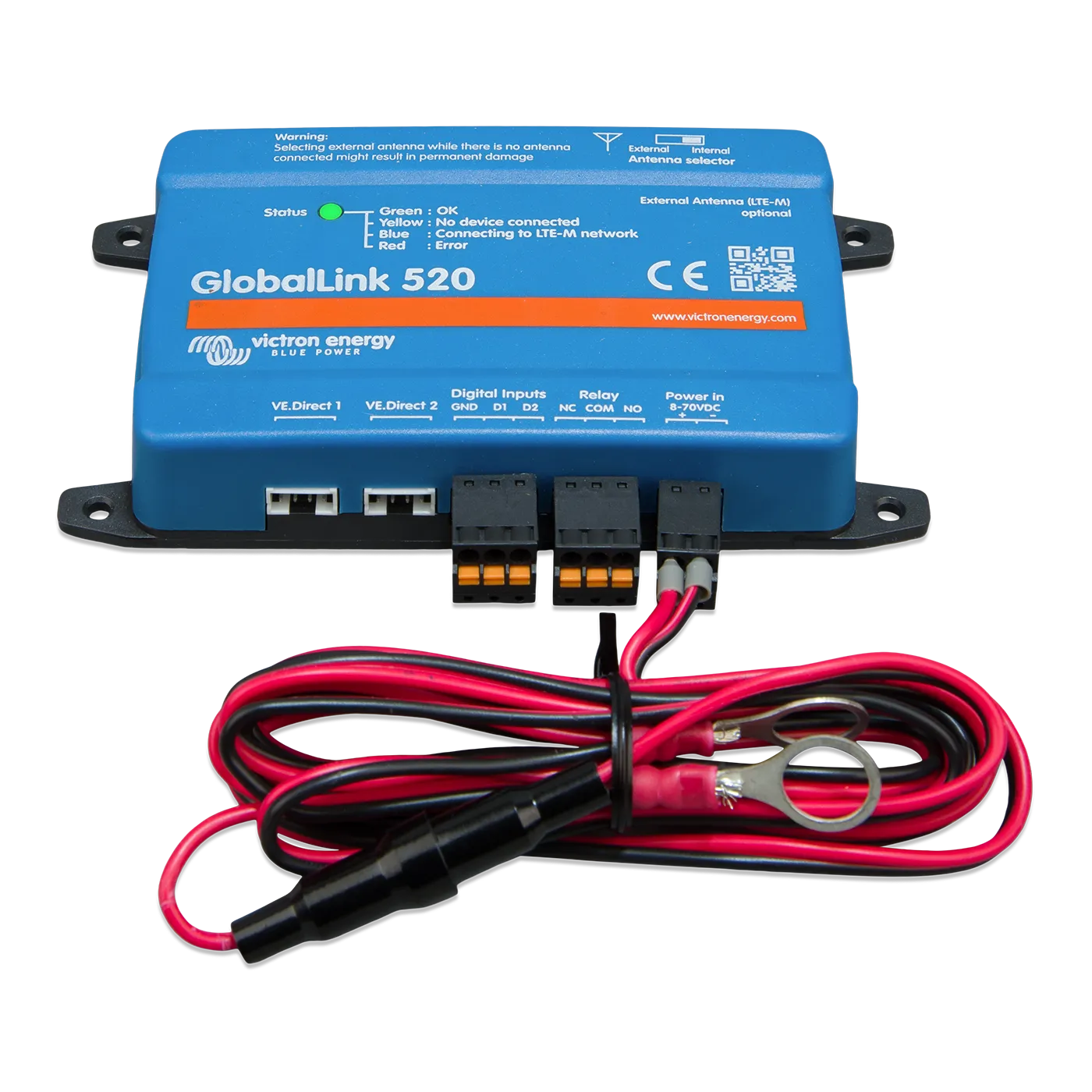

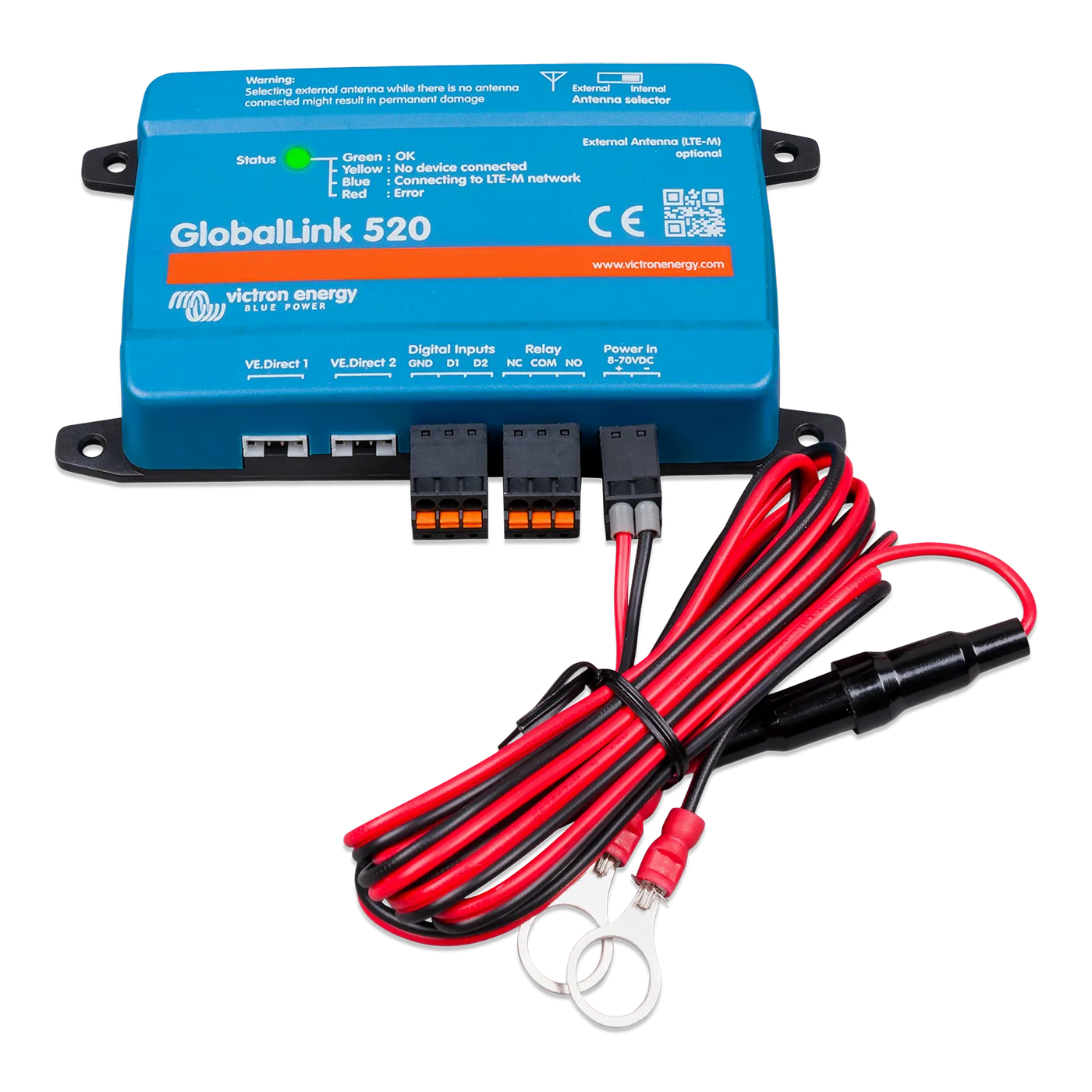

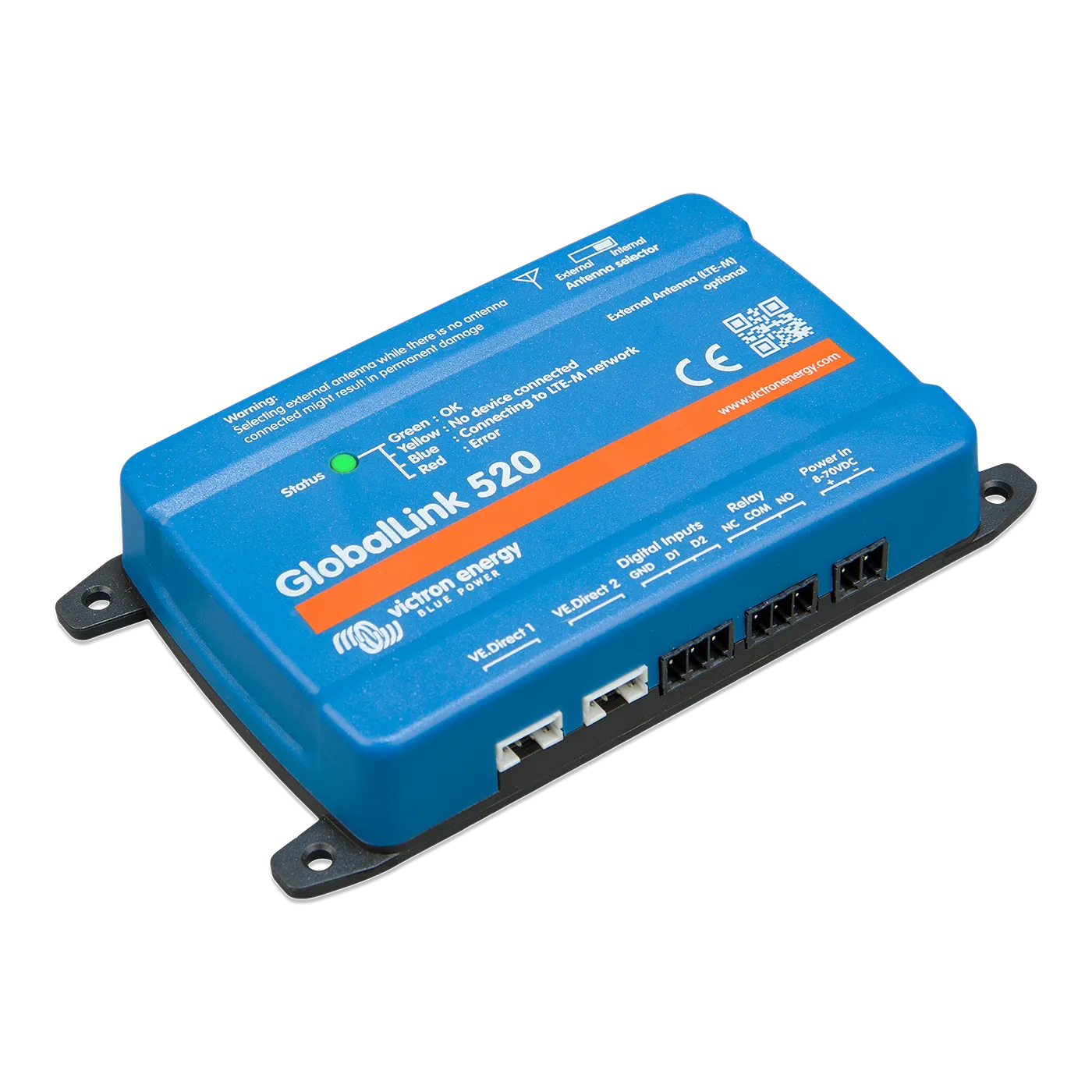

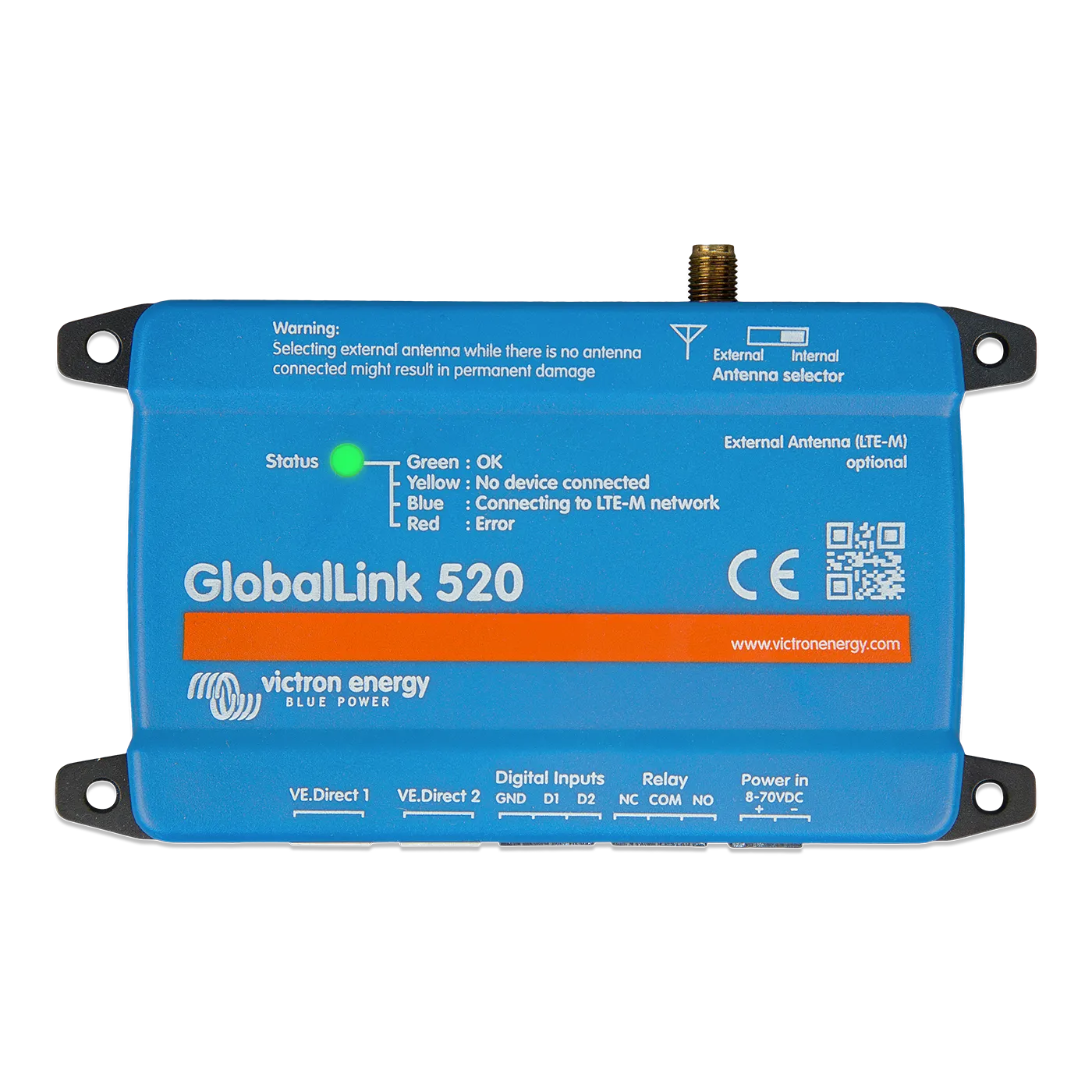

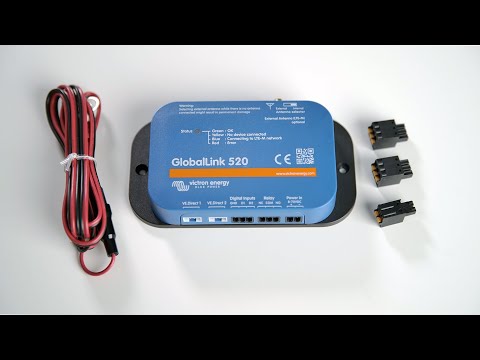

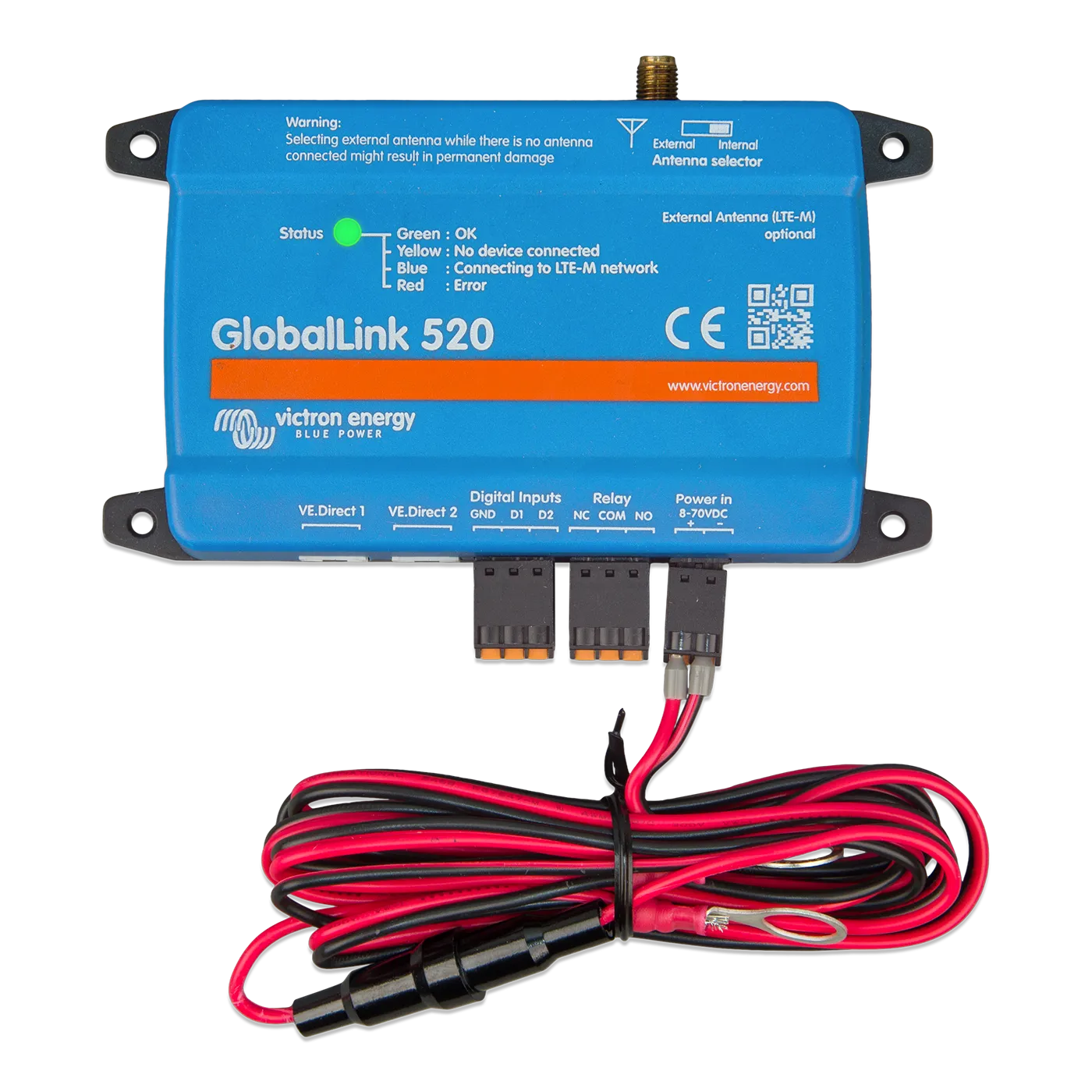

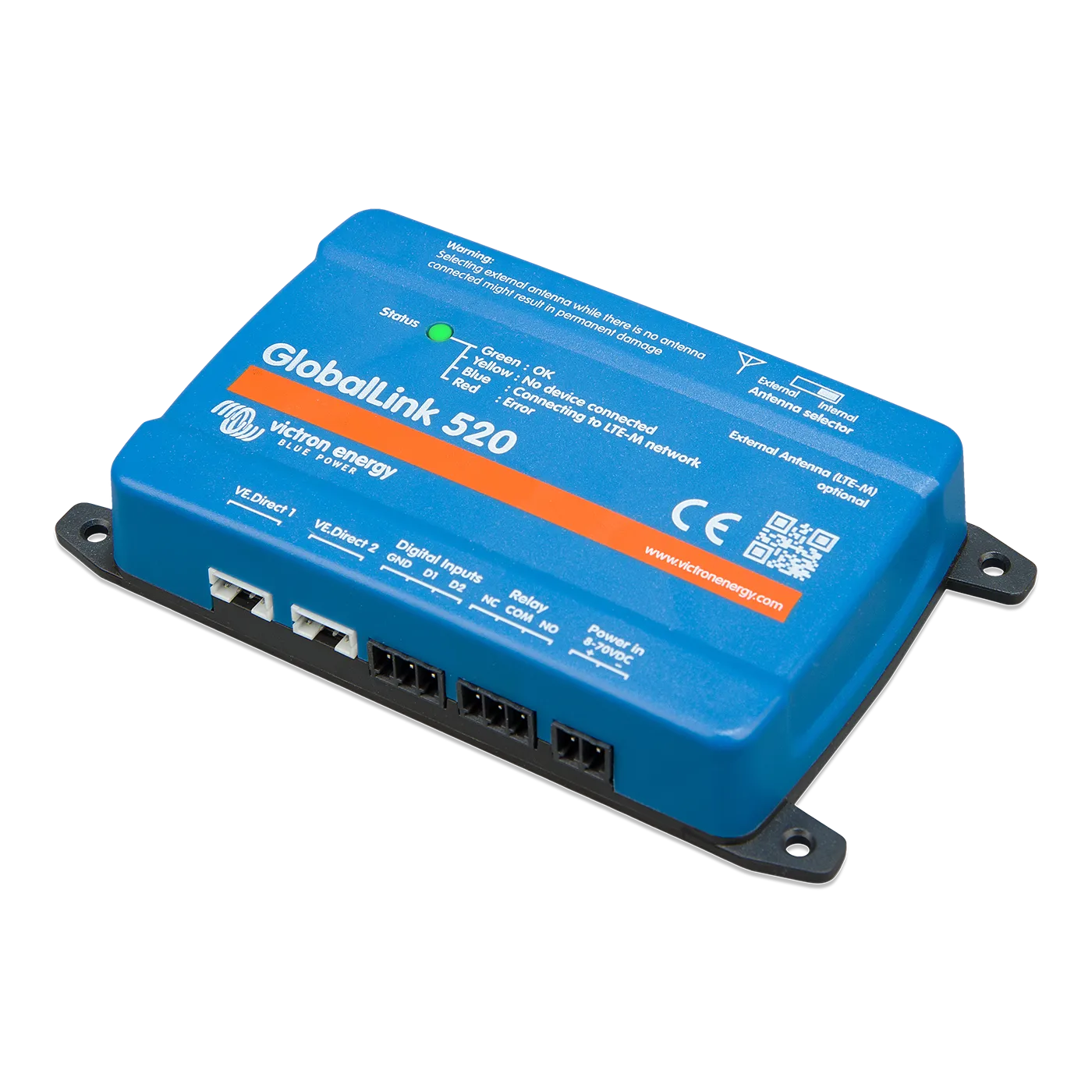

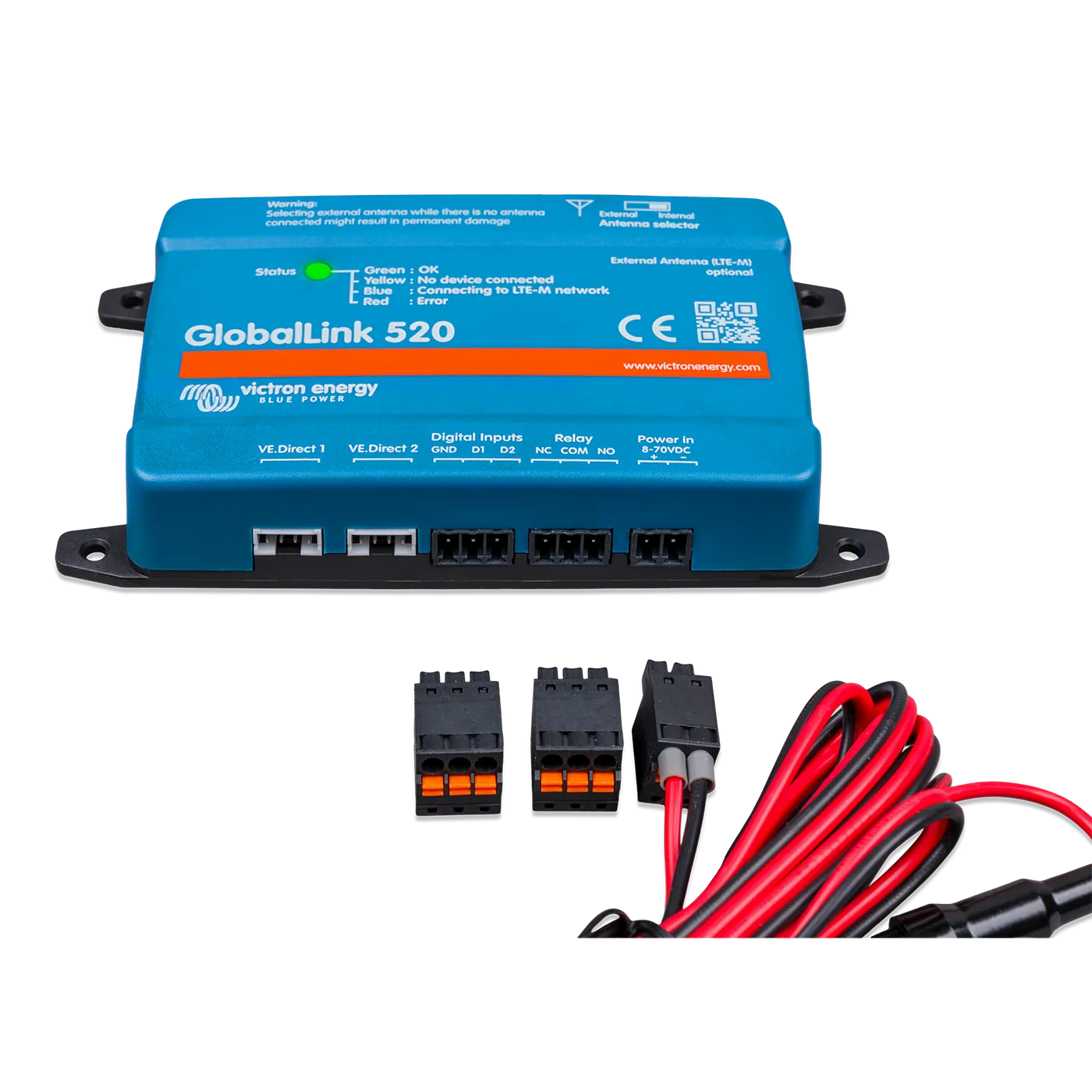

Victron Energy GlobalLink 520 - VRM Monitoring Gateway with 5-Year Prepaid SIM
Free shipping over $49
60-day hassle-free returns

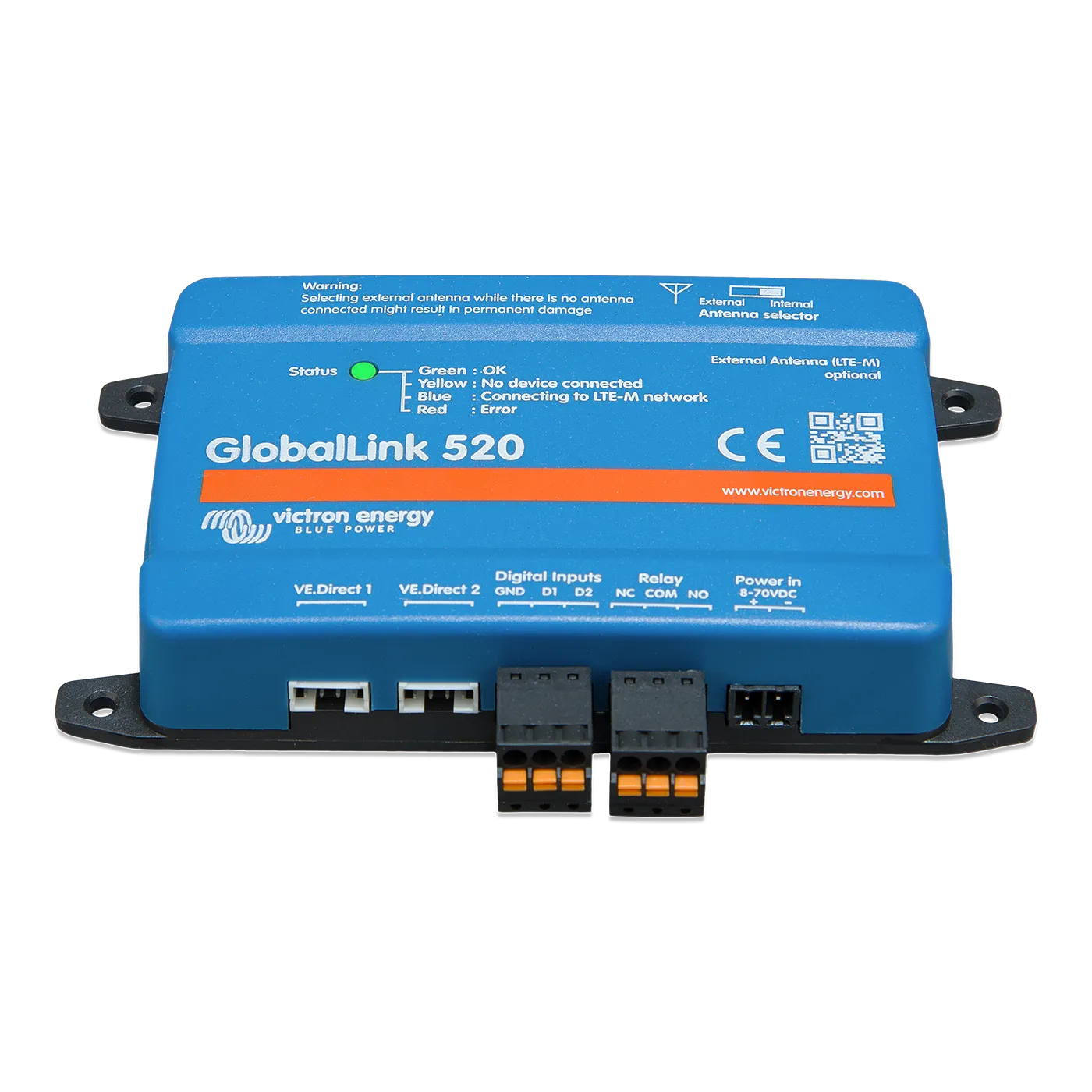

The Victron GlobalLink 520 is the easiest, no-subscription way to keep an eye on a Victron system from anywhere. It links your gear to the free VRM (Victron Remote Management) portal over 4G — and it ships with a pre-installed, pre-paid SIM that includes 5 years of cellular connectivity. No SIM to buy, no data plan to manage, no monthly fees. Power it up, pair your devices, and watch your system online.
What it connects
- 2 VE.Direct ports (always isolated) — wire in two VE.Direct devices such as a SmartSolar MPPT, a SmartShunt, or a BMV battery monitor.
- Up to 10 Bluetooth Smart products — the GlobalLink pulls data wirelessly (BLE) from nearby Victron Smart devices.
- RuuviTag sensors — add wireless temperature, humidity, and pressure sensors; their data shows up directly in VRM.
- 2 digital inputs and 1 relay (NO/NC; DC 2 A @ 30 VDC, AC 0.5 A @ 125 VAC) for basic alarm/switching.
On VRM you can watch battery state of charge, power consumption, PV harvest, generator and grid status, and temperatures, set up alerts, and review historical data and diagnostics — all from your phone or laptop.
GlobalLink vs. a GX device: the GlobalLink 520 is a lightweight monitoring gateway — it is not a GX device and does not run Venus OS, so it doesn't do full system control, ESS, generator auto start/stop, or NMEA 2000. For a larger system, or if you need on-site control and a touchscreen, choose a Cerbo GX (with a GX LTE 4G for cellular). The GlobalLink shines on smaller installs where you just want subscription-free remote monitoring.
Easy setup and flexible antennas
Configure it in minutes over Bluetooth with the VictronConnect app. It has an internal antenna plus an SMA connector for an optional external LTE-M antenna — add the outdoor wall-mount or puck antenna (3 m lead) where signal is weak, such as inside a metal hull or enclosure. After the included 5 years, the unit also supports a custom SIM.
Specs (GlobalLink 520)
| Connectivity to VRM | 4G cellular — LTE Cat 1 (up to 10 Mbps down / 5 Mbps up) with GSM/GPRS/EDGE fallback |
| Included SIM | Pre-paid 1nce data SIM with 5 years of connectivity; custom SIM also supported |
| Inputs | 2 × VE.Direct (isolated), up to 10 Bluetooth Smart devices, RuuviTag (BLE), 2 digital inputs |
| Relay | 1 × NO/NC — DC 2 A @ 30 VDC, AC 0.5 A @ 125 VAC |
| Bluetooth | Yes (data + VictronConnect setup) |
| WiFi | No |
| Antenna | Internal, plus SMA connector for optional external LTE-M antenna |
| Supply voltage | 8–70 VDC |
| Mounting | Wall |
| Dimensions (H×W×D) | 123 × 67 × 23 mm |
| Operating temperature | −20 °C to +50 °C |
Why buy from Blue Marine
Blue Marine is an authorized Victron Energy dealer. Every GlobalLink 520 ships brand-new with the full 5-year Victron product warranty (separate from the SIM's 5-year connectivity), free shipping, and local pickup available. Not sure whether a GlobalLink or a Cerbo GX is right for your system? Ask us — we'll help you choose.
Manuals & Datasheets
Datasheets
Manuals
Guides & resources
- GlobalLink 520 — Enclosure Dimensions (EN)
- GlobalLink 520 — Enclosure Dimensions 3D (EN)
- GlobalLink 520 — Enclosure Dimensions 3D, New Design (EN)
Need a document you don't see here? Schedule a consultation or email support@bluemarine.com and we'll send it over.
