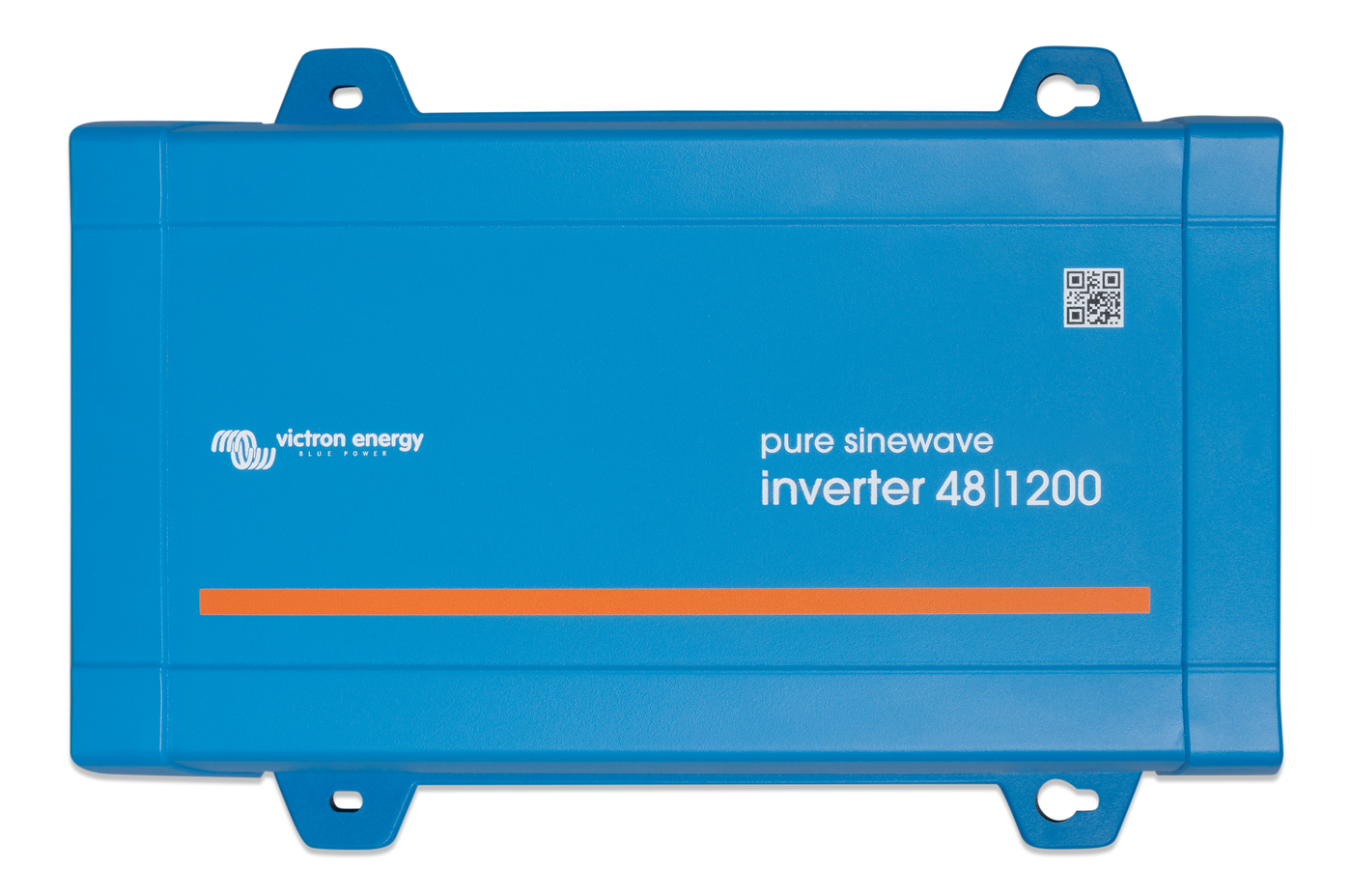

Victron Energy Phoenix Inverter VE.Direct (120V, 250VA–1600VA)
Free shipping over $49
60-day hassle-free returns
The Victron Phoenix VE.Direct inverter series delivers reliable, pure sine wave AC power from 12V, 24V, or 48V battery systems—ideal for marine, RV, and off-grid applications. Available in power ratings from 250VA to 1600VA, these inverters offer exceptional efficiency, low standby consumption, and full protection for your sensitive electronics.
Key Features
-
Pure sine wave output – Safely powers sensitive electronics
-
VE.Direct communication – Monitor and configure via USB (separate VE.Direct to USB cable required) or Bluetooth with the VictronConnect app (separate VE.Direct Smart Bluetooth Dongle required)
-
ECO mode – Minimizes standby consumption to save battery life
-
High surge capacity – Starts inductive loads like compressors and pumps
-
Full electronic protection – Includes overload, short circuit, and temperature safeguards
-
NEMA 5-15R or GFCI outlet – GFCI models are UL 458 listed for added safety
Model Specifications
| Model | Cont. Power | Peak Power | Max Efficiency | Dimensions (inches) | Weight (lbs) |
|---|---|---|---|---|---|
| 250VA | 250 VA | 400 W | Up to 88% | 3.4 H × 6.5 W × 10.2 D | 5.3 |
| 375VA | 375 VA | 700 W | Up to 89% | 3.4 H × 6.5 W × 10.2 D | 6.6 |
| 500VA | 500 VA | 900 W | Up to 91% | 3.4 H × 6.8 W × 10.8 D | 8.6 |
| 800VA | 800 VA | 1500 W | Up to 91% | 4.1 H × 8.5 W × 12.0 D | 12.1 |
| 1200VA | 1200 VA | 2200 W | Up to 92% | 4.6 H × 9.1 W × 12.9 D | 16.3 |
| 1600VA | 1600 VA | 3000 W | Up to 92% | 4.6 H × 9.1 W × 12.9 D | 17.6 |
Technical Details
-
Input voltages: 12V, 24V, or 48V (depending on model)
-
Output voltage: 120V ±3%, 60Hz ±0.1% (adjustable)
-
No-load consumption: 4.2–10W (standard) / under 3W (ECO mode)
-
Operating temperature: -40°C to +65°C (fan-assisted)
-
Ingress protection: IP21
-
Remote on/off; screw-terminal DC connection; pair with the Victron Filax 2 for automatic transfer switching
Ideal For
Sailboats and motorboats
Campervans and RV systems
Off-grid cabins and backup AC setups
Need 230V instead? See the 230V Phoenix VE.Direct inverters. For a larger 3000VA unit with VE.Bus, see the Phoenix Inverter 3000VA 120V.
Sizing help? Get a custom quote or call (800) 628-6306.
Blue Marine is an authorized Victron Energy dealer — ships brand-new with the full 5-year Victron warranty, free shipping, and local pickup available.
Manuals & Datasheets
Datasheets
Manuals
Guides & resources
- Inverter VE.Direct 250/375VA — Enclosure dimensions (EN)
- Inverter VE.Direct 250/375VA — Enclosure dimensions 3D (EN)
- Phoenix Inverter VE.Direct — UL 458 Safety Certificate
Need a document you don't see here? Schedule a consultation or email support@bluemarine.com and we'll send it over.
