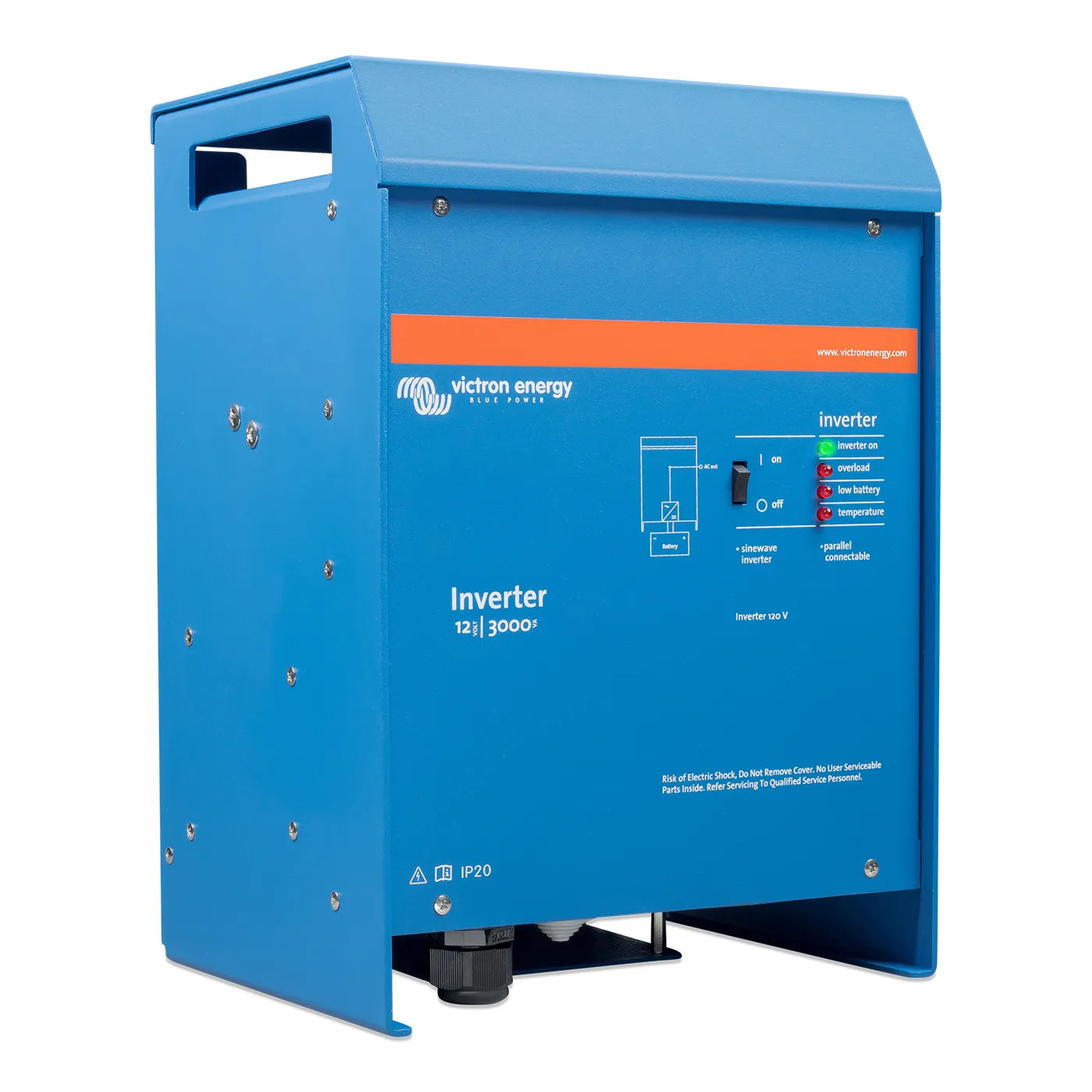

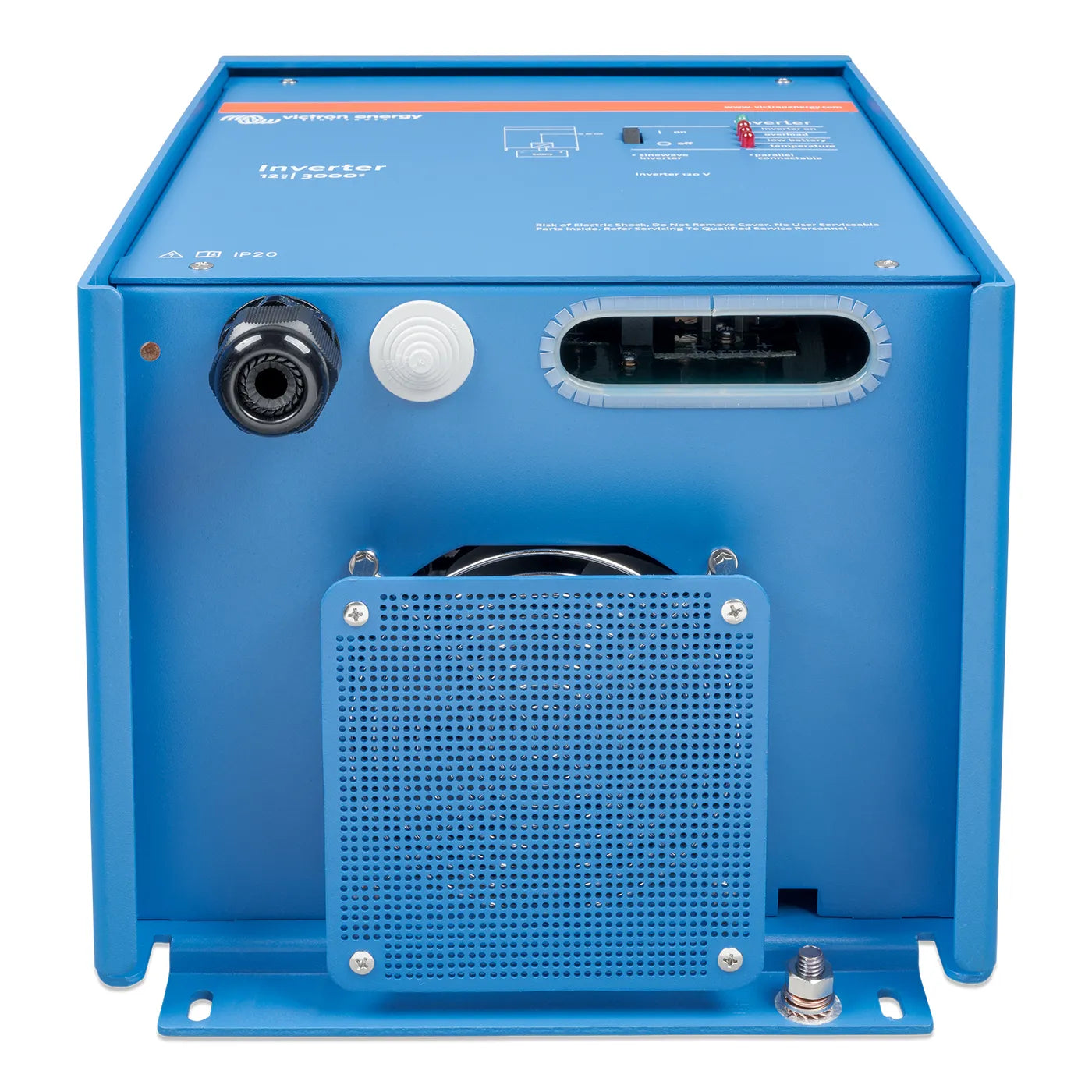

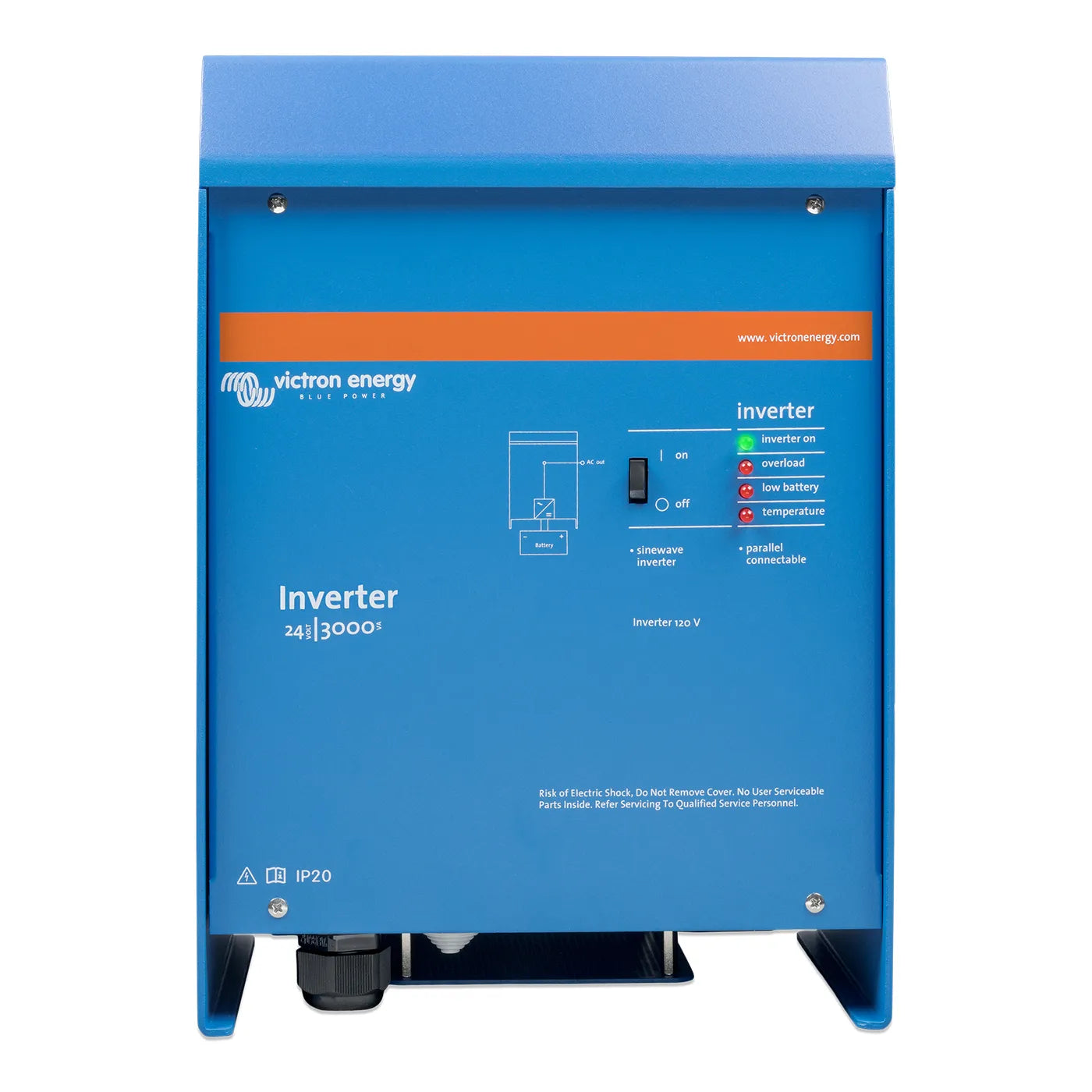

Victron Phoenix Inverter 120V VE.Bus

The Victron Energy Phoenix Inverter 3000VA 120V is a high-performance, pure sine wave inverter engineered for professional-grade marine, RV, and off-grid applications. Combining high-frequency and low-frequency conversion technologies, this inverter delivers best-in-class efficiency, rugged reliability, and the versatility to power even the most sensitive electronic equipment.

Key Features

• Pure Sine Wave Output
  Clean and stable AC power for all appliances, including sensitive electronics like computers and navigation gear.

• High Peak Power
  Delivers strong surge capacity to start demanding loads such as refrigerators, compressors, or power tools.

• SinusMax Design – Superior Engineering
  Built with hybrid HF technology, the Phoenix Inverter offers optimized efficiency, compact size, low weight, and high reliability under demanding conditions.

• Parallel and 3-Phase Operation
  Scale your system by connecting up to six inverters in parallel for greater output (up to 30kVA). Three-phase configuration also supported.

• High Efficiency
  Up to 92% efficiency at full load ensures minimal energy loss and extended battery life.

Technical Specifications

• Continuous Power Output: 3000VA / 2400W at 25°C

• Peak Power Output: 6000W

• Input Voltage Range: 9.5 – 17V DC (12V system) / 19 – 33V DC (24V system)

• Output Voltage: 120V AC ±2%

• Output Frequency: 60Hz ±0.1%

• No Load Power Consumption: ~20W (search mode: < 10W)

• Maximum Efficiency: Up to 92%

• Communication: VE.Bus for remote monitoring, configuration, and parallel operation

• Operating Temperature: -40°F to +150°F

Dimensions & Weight

• Dimensions (H x W x D): 14.3 x 10.2 x 8.6 inches

• Weight: 38 lbs

Ideal Applications

• Sailboats, yachts, and workboats

• Camper vans and RVs

• Off-grid homes and cabins

• Backup AC power for mission-critical loads

Optional Accessories

• VE.Bus Smart Dongle – Bluetooth-enabled monitoring via VictronConnect app

• MK3-USB Interface – For configuration via PC

Backed by Victron Energy’s 5-Year Global Warranty, the Phoenix Inverter 3000VA 120V is built to perform reliably in the harshest environments—delivering stable power, scalable performance, and complete system integration flexibility.
