Victron Energy Quattro Inverter/Charger 230V (Euro 50Hz) - 3kVA to 15kVA

Note: This is a 230V / 50Hz (European standard) model with a single-phase output, most often used as a like-for-like replacement on a European-built boat. For US-standard 120/240V split phase you have three options: (1) configure the Quattro for 60Hz and pair it with a Victron Autotransformer also set to 60Hz, which splits the 230V/60Hz output into 120/240V; (2) use a Quattro-II 2x120V single-box split-phase unit; or (3) wire two Quattro 120V units in parallel (one per leg).

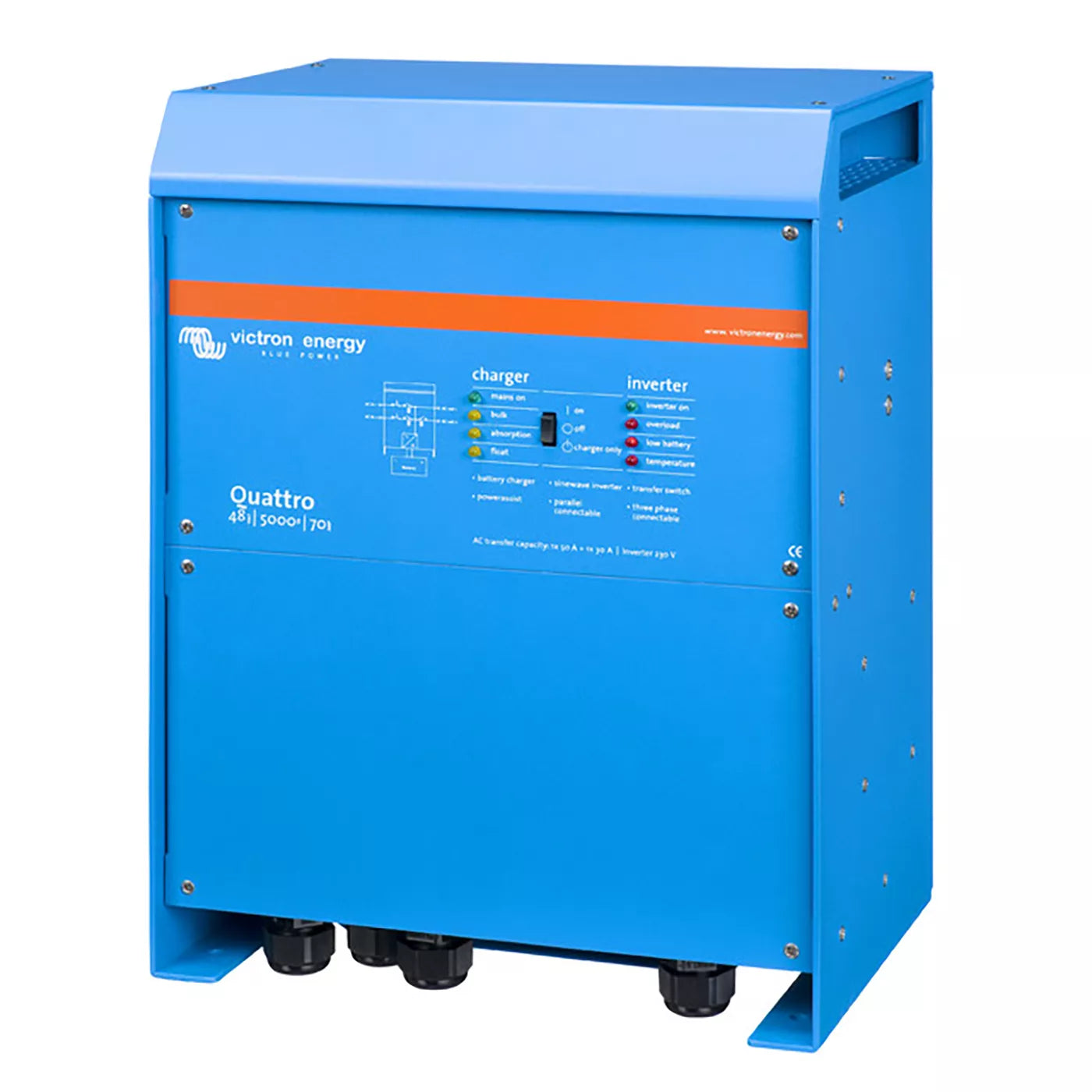

The Victron Quattro is a true marine- and off-grid-grade inverter/charger with two AC inputs. It combines a low-distortion pure sine wave inverter, a smart adaptive charger, and an integrated dual-AC-input transfer switch in one enclosure - so shore power, a generator (or two generators), your battery bank, and your loads all live behind one device.

This 230V / 50Hz listing spans 3 kVA to 15 kVA, at 12V, 24V, or 48V DC. Choose your model from the variant selector above.

Who the Quattro is built for

• European-built boats and yachts - a like-for-like 230V / 50Hz inverter/charger that auto-selects between shore power and a generator with a sub-20 ms changeover.
• Off-grid homes and larger installs - the 8 kVA, 10 kVA, and 15 kVA models handle whole-home off-grid loads from a 48V bank, with a generator input built in.
• Systems with shore power and a generator - the Quattro's two AC inputs and automatic source selection mean no external transfer switch.
• Installers and electricians - VE.Bus communication, VEConfigure, and parallel/three-phase scaling to very large systems.

Why this is the Quattro

Two AC inputs with an integrated transfer switch

Connect both shore power and a generator (or two generators) directly to the Quattro. It detects which source is live and switches automatically - no external transfer switch, no relays to size, no second enclosure on the wall.

No-break AC output and two AC outputs

The main output rides through any source loss in under 20 milliseconds, fast enough that computers and other electronics keep running. The second AC output is live only when an AC source is present - so non-critical loads like a water heater can't drain the battery overnight.

PowerControl and PowerAssist

Set a current limit on each AC input and the Quattro uses only the leftover capacity for charging, so the inlet breaker never trips (PowerControl). When a peak load exceeds the inlet rating, it supplements from the battery and recharges once the peak passes (PowerAssist). You can run loads larger than your inlet rating.

Adaptive multi-stage charging - lithium and lead-acid friendly

A four-stage charge profile (bulk, absorption, float, storage) with adaptive-charge software and an included battery temperature sensor, fully programmable for lithium, AGM, gel, and flooded banks. Maximum charge current ranges from 70 A (24/3000) up to 220 A (12/5000), by model. The 12V and 24V models also include a 4 A starter-battery trickle output.

Scales with your system: parallel and three phase

Three units configure for three phase, and up to four sets of three 15 kVA units can be paralleled for a 144 kW / 180 kVA system with 2,400 A of charging capacity. Configure with VE.Bus Quick Configure and VE.Bus System Configurator.

Monitor and control from anywhere

Add a Cerbo GX or Ekrano GX and your system is visible in the free VRM Portal from your phone, tablet, or laptop. Configure on-site with VEConfigure (via the MK3-USB interface) or the VictronConnect app over Bluetooth (via the VE.Bus Smart dongle).

Available variants

All variants are sold on this page - choose your model from the variant selector above.

Model	Battery	Cont. output at 25 C	Peak power	House charger	Aux output

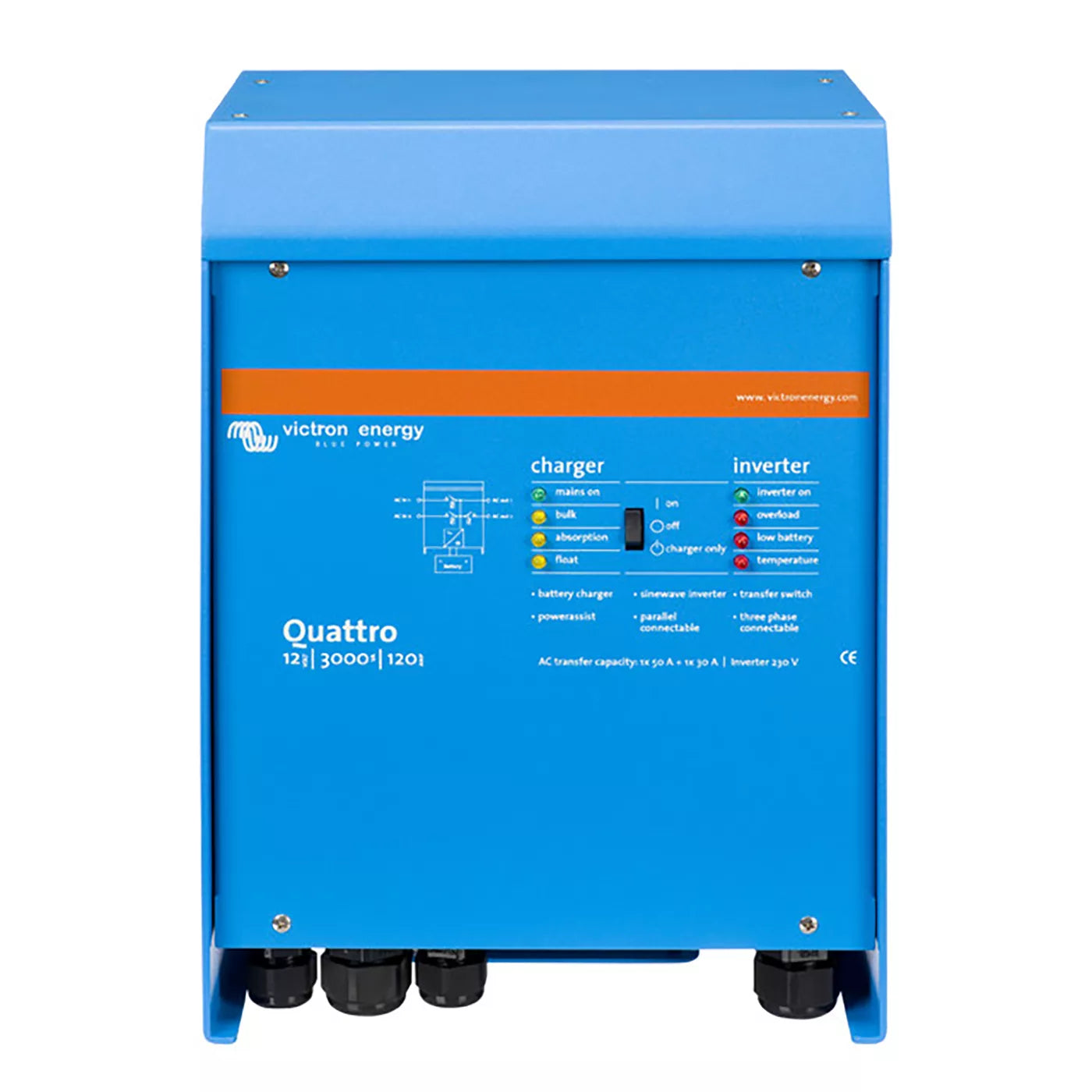

Quattro 12/3000/120-50/50 230V	12 VDC	2,400 W (3,000 VA)	6,000 W	120 A	25 A

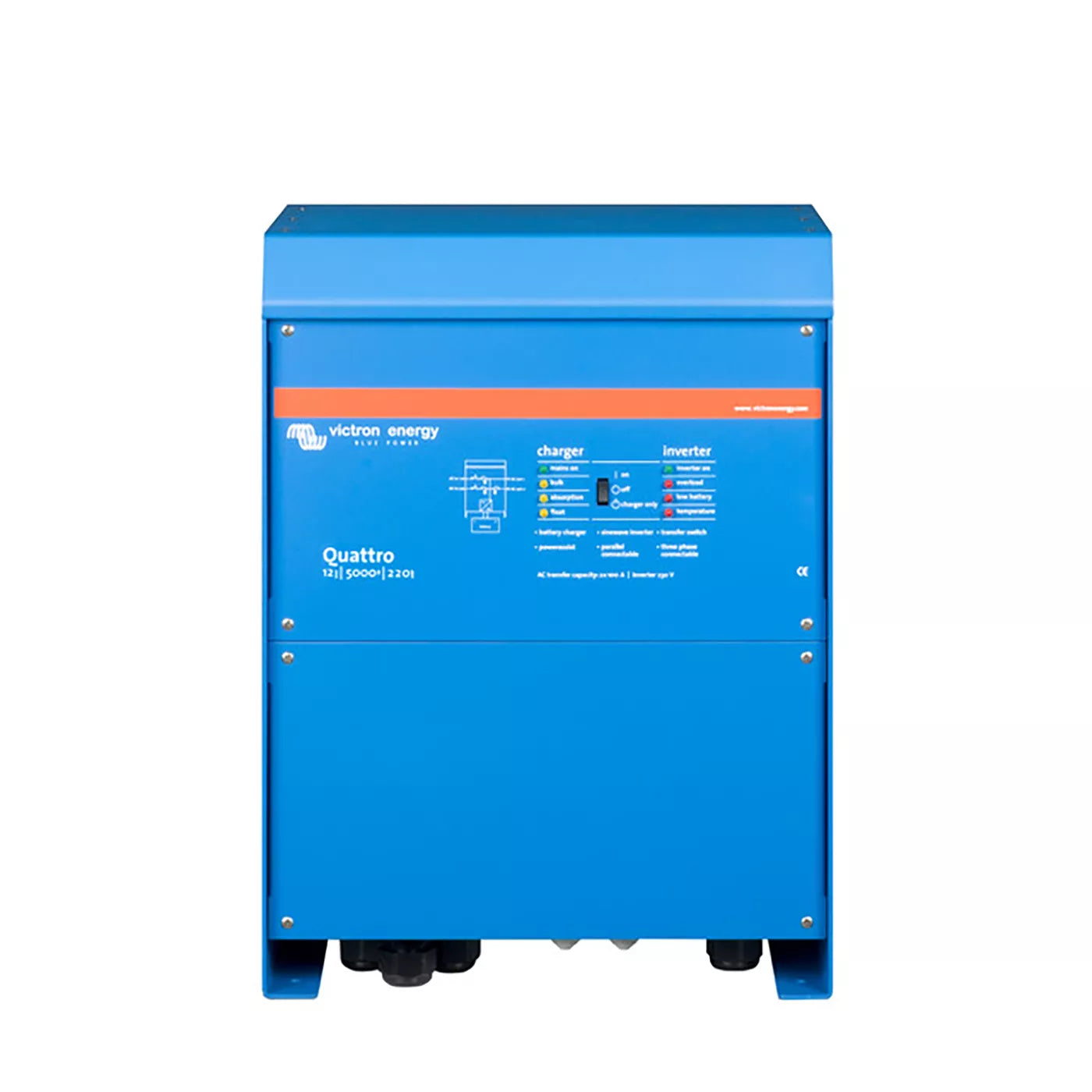

Quattro 12/5000/220-100/100 230V	12 VDC	4,000 W (5,000 VA)	10,000 W	220 A	50 A

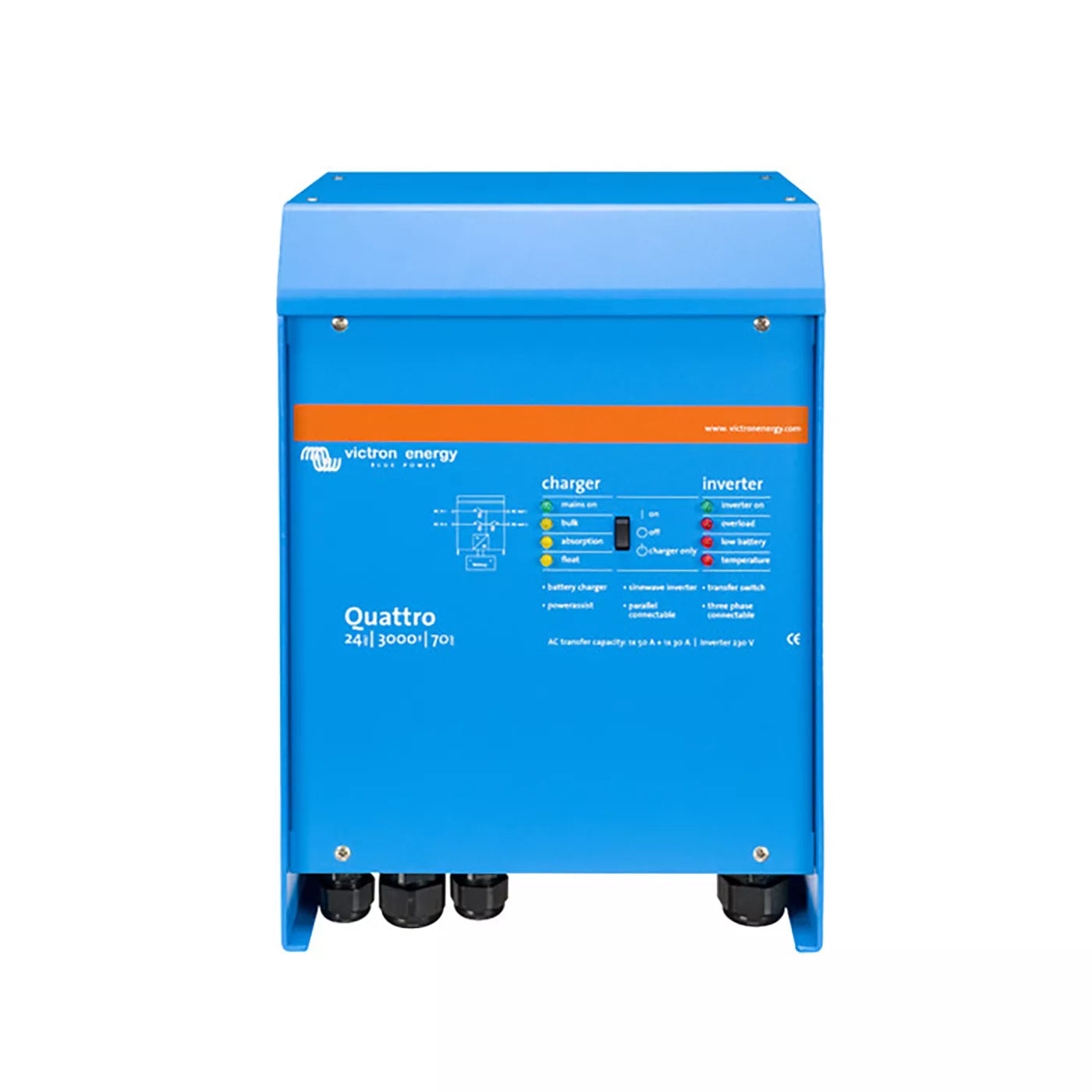

Quattro 24/3000/70-50/50 230V	24 VDC	2,400 W (3,000 VA)	6,000 W	70 A	25 A

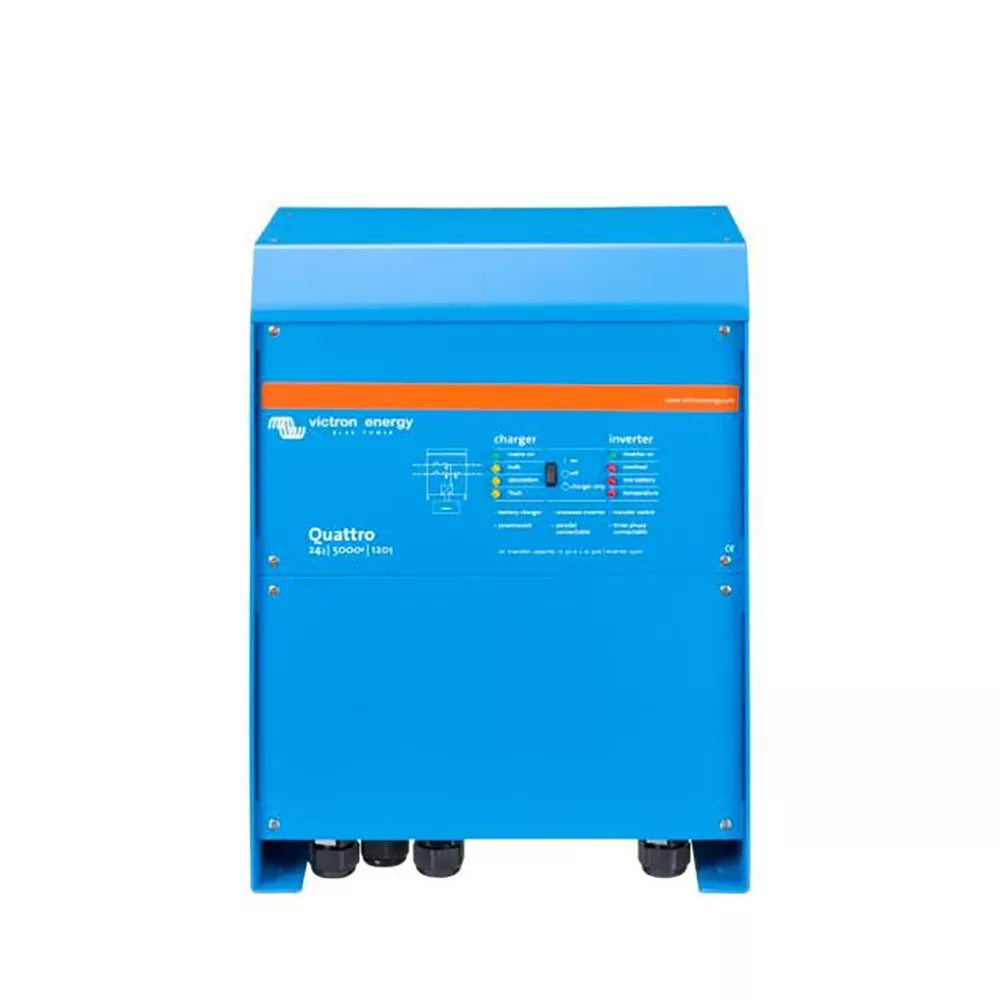

Quattro 24/5000/120-100/100 230V	24 VDC	4,000 W (5,000 VA)	10,000 W	120 A	50 A

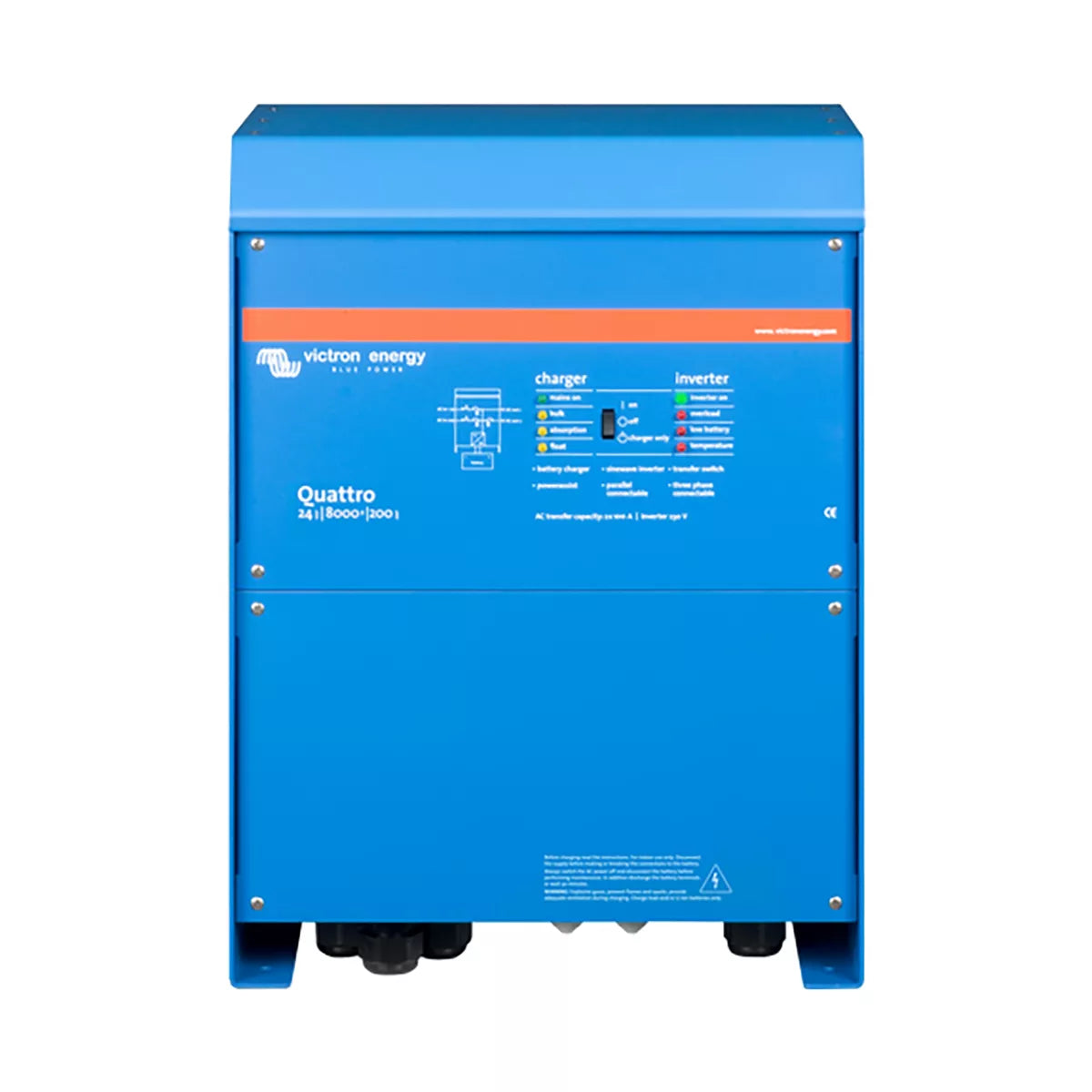

Quattro 24/8000/200-100/100 230V	24 VDC	6,400 W (8,000 VA)	16,000 W	200 A	50 A

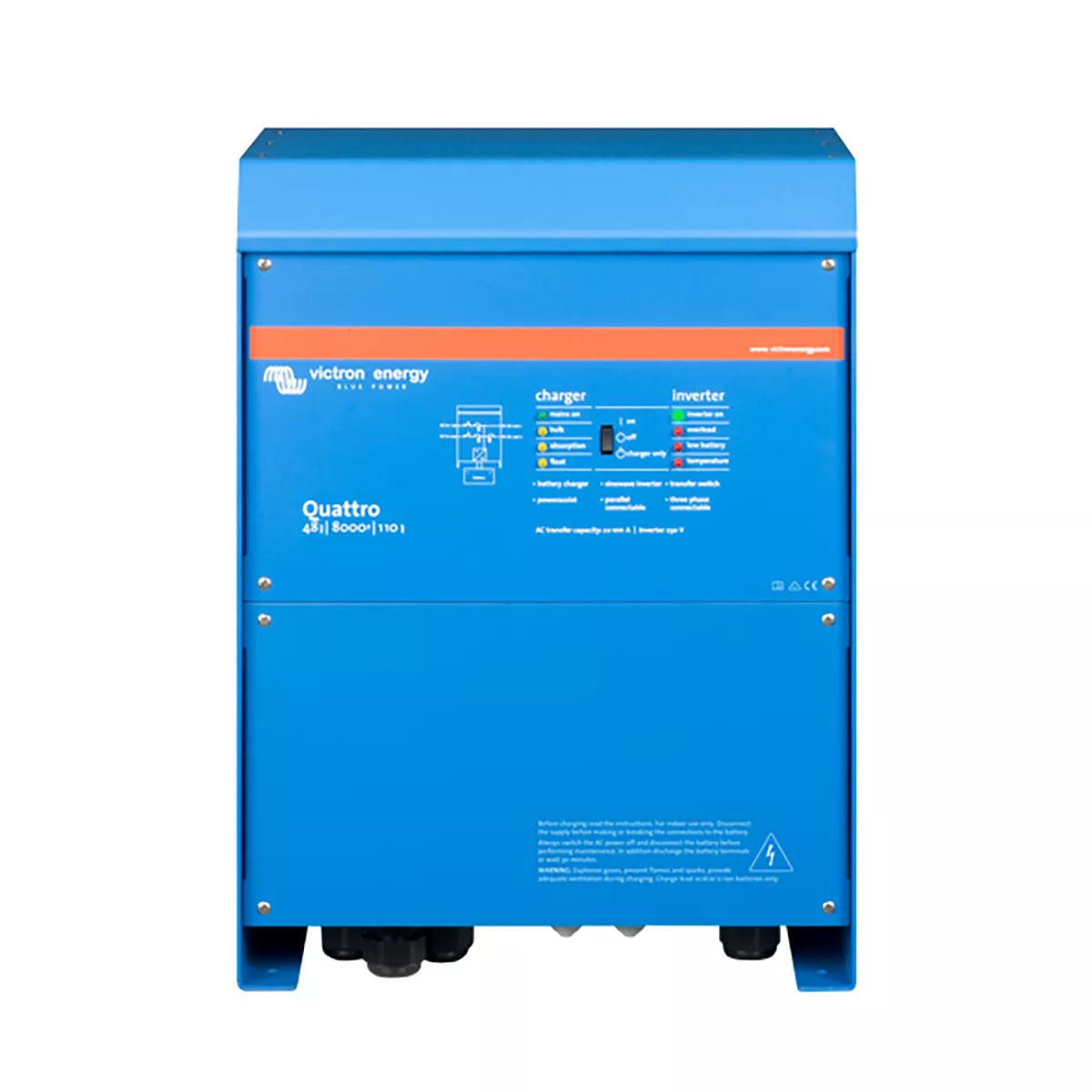

Quattro 48/8000/110-100/100 230V	48 VDC	6,400 W (8,000 VA)	16,000 W	110 A	50 A

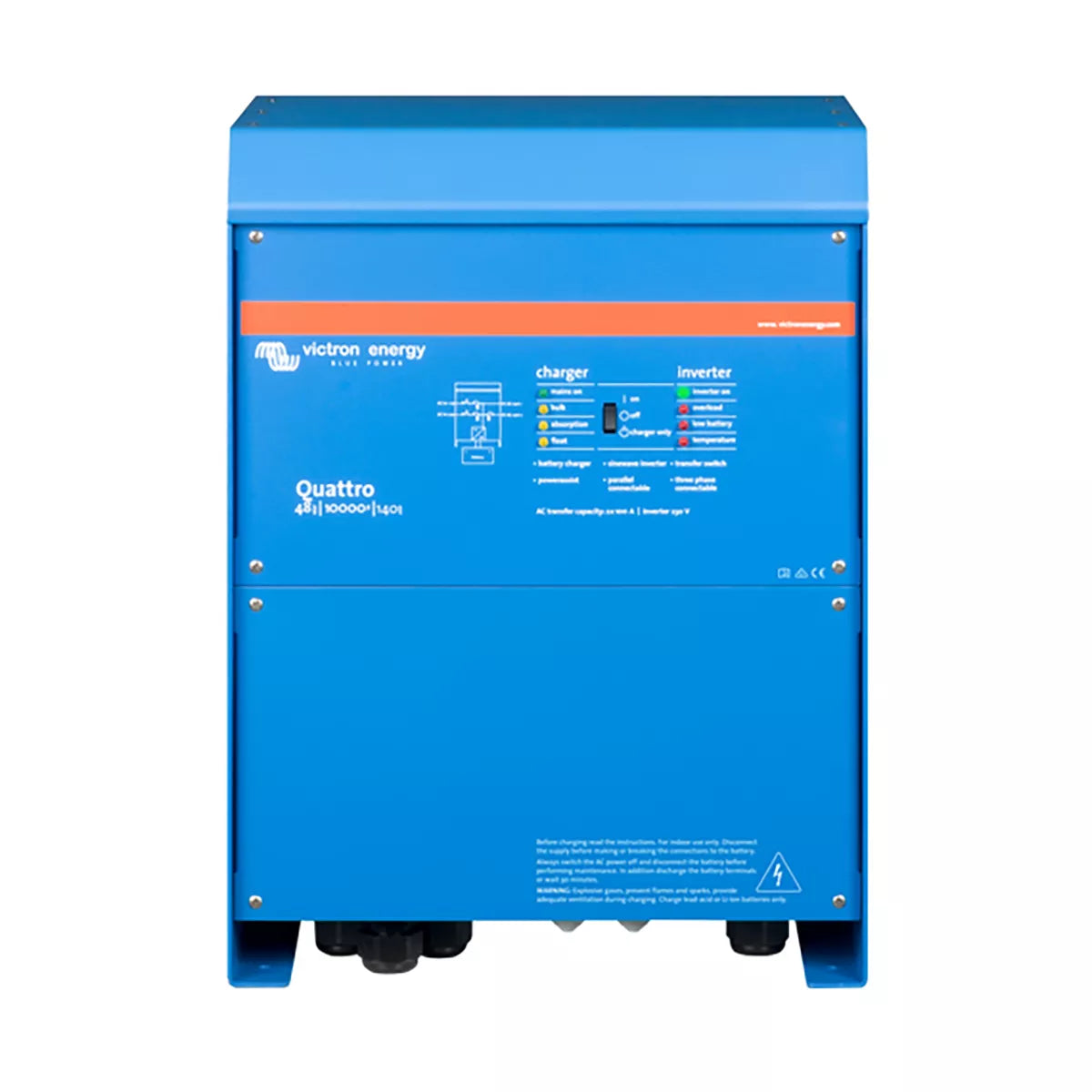

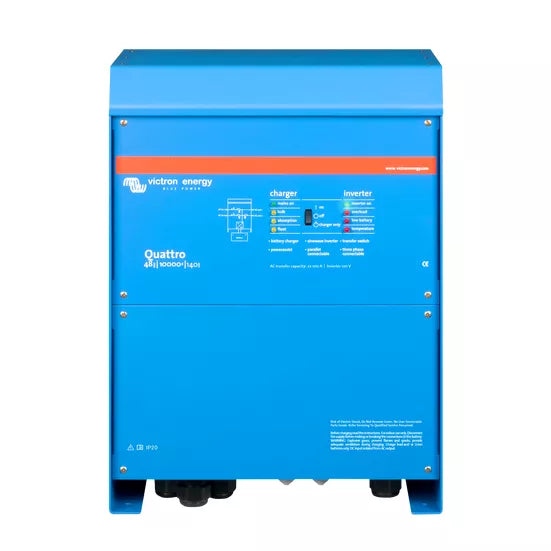

Quattro 48/10000/140-100/100 230V	48 VDC	8,000 W (10,000 VA)	20,000 W	140 A	50 A

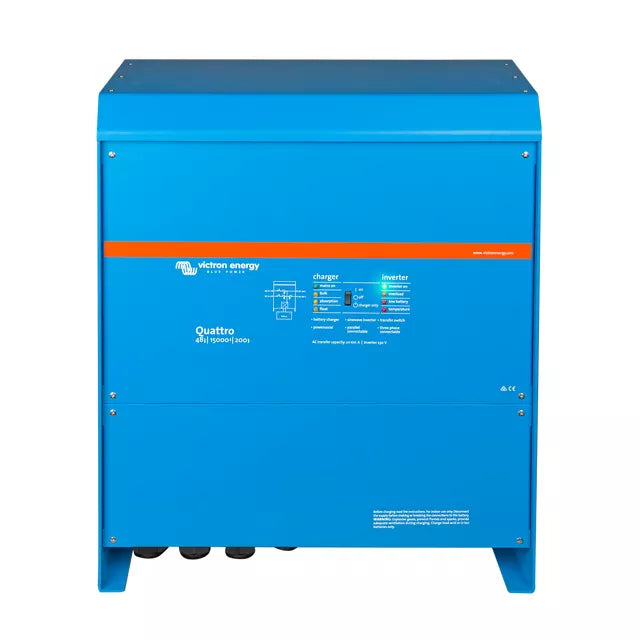

Quattro 48/15000/200-100/100 230V	48 VDC	12,000 W (15,000 VA)	25,000 W	200 A	50 A

Not sure which fits your bank? Get a custom quote from our Seattle team or book a system consultation and we'll size your inverter, charger, batteries, and cabling together.

Full technical specifications

AC inputs

• Two AC inputs with integrated transfer switch and automatic source selection
• Input voltage range: 187 - 250 VAC, 50/60 Hz, power factor > 0.8
• Maximum feed-through current: 2 x 50 A (3 kVA), 2 x 100 A (5 kVA and larger)

Inverter

• DC input voltage range: 9.5 - 17 V (12V), 19 - 33 V (24V), 38 - 66 V (48V)
• Output voltage: 230 VAC +/- 2%
• Output frequency: 50 Hz +/- 0.1% (adjustable to 60 Hz)
• Waveform: pure sine
• Continuous output at 25 C: 2,400 W (3 kVA), 4,000 W (5 kVA), 6,400 W (8 kVA), 8,000 W (10 kVA), 12,000 W (15 kVA)
• Peak power: 6,000 W (3 kVA), 10,000 W (5 kVA), 16,000 W (8 kVA), 20,000 W (10 kVA), 25,000 W (15 kVA)
• Maximum efficiency: 93-96% depending on model

Charger

• Adaptive 4-stage charging: bulk, absorption, float, storage
• Lithium-ion compatible
• Absorption voltage: 14.4 / 28.8 / 57.6 VDC (12V / 24V / 48V banks)
• Float voltage: 13.8 / 27.6 / 55.2 VDC
• Storage voltage: 13.2 / 26.4 / 52.8 VDC
• Maximum charge current: 120 A (12/3000), 70 A (24/3000), 220 A (12/5000), 120 A (24/5000), 200 A (24/8000), 110 A (48/8000), 140 A (48/10000), 200 A (48/15000)
• Starter-battery output: 4 A trickle (12V and 24V models only)
• Battery temperature sensor included

System and communication

• Auxiliary AC output: 25 A (3 kVA), 50 A (5 kVA and larger) - live only when an AC source is present
• Three programmable relays - general alarm, DC under-voltage, or genset start/stop (AC 230 V / 4 A; DC 4 A up to 35 V, 1 A up to 60 V)
• VE.Bus port for parallel and three phase operation, remote monitoring, and system integration
• Two general-purpose communication ports
• Remote on/off input
• Compatible with Cerbo GX, Ekrano GX, Digital Multi Control panel, VE.Bus Smart Dongle (Bluetooth), and MK3-USB interface

Protection

• Output short circuit
• Overload
• Battery voltage too high or too low
• Over-temperature
• 230 VAC on inverter output
• Excessive input voltage ripple

Enclosure and environment

• Material: aluminium, RAL 5012 blue
• Protection category: IP20 (pollution degree 2, OVC III)
• Operating temperature: -20 C to +60 C (fan-assisted cooling)
• Humidity (non-condensing): 95% max
• Maximum altitude: 2,000 m
• Battery connection: four M8 bolts (2 positive, 2 negative)
• AC connection: 6 AWG (13 mm2) screw terminals (3 kVA); M6 bolts (5 kVA and larger)
• Weight: 42 lb / 19 kg (3 kVA); 66-75 lb / 30-34 kg (5 kVA); 90-99 lb / 41-45 kg (8 kVA); 112 lb / 51 kg (10 kVA); 159 lb / 72 kg (15 kVA)

Standards and certifications

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
• EMC: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Road vehicles (12V and 24V models): ECE R10-4
• Anti-islanding: see Victron's website

Recommended accessories

• Victron Autotransformer - derive US 120/240V split phase from this 230V unit (both set to 60Hz)
• Cerbo GX or Ekrano GX - system controller and VRM gateway
• SmartShunt or BMV-712 Smart - battery state-of-charge monitoring
• MK3-USB interface - configure the Quattro from a laptop via VEConfigure
• Compatible lithium battery banks from Victron, Epoch, and MG Energy Systems
• Victron SmartSolar MPPT - pair to build a hybrid solar or ESS system

Installation and sizing help

Wiring a Quattro isn't plug-and-play. Battery cable sizing, fusing, both AC inlet ratings, and bonding all need to match the variant you choose. Two free resources to start with:

• Victron Wiring Unlimited - the canonical reference for sizing the DC and AC sides of a Victron system.
• Our AWG to Metric Conversion chart.

If you want a second set of eyes on your one-line diagram, our certified technicians do system consultations and full custom quotes. Email support@bluemarine.com or call (800) 628-6306.

Frequently asked questions

What's the difference between the Quattro and the MultiPlus-II?

The MultiPlus-II has one AC input. The Quattro has two AC inputs with a built-in transfer switch. If you have both shore power and a generator (or two generators) and want automatic source selection, the Quattro saves you an external transfer switch.

Can I use this 230V unit on US 120/240V power?

Not directly - its output is 230V / 50Hz (European standard). To run on US power, configure the Quattro for 60Hz and pair it with a Victron Autotransformer also configured for 60Hz, which converts the 230V/60Hz output into US-standard 120/240V split phase. Alternatively, the Quattro-II 2x120V or two Quattro 120V units in parallel give US split phase directly.

Is it lithium battery compatible?

Yes. The charger supports custom voltage and current profiles for LiFePO4 and other lithium chemistries, and it communicates with Victron's VE.Bus BMS over the communication port.

What warranty does it come with?

A 5-year limited warranty from Victron Energy, upgradable to 10 years for an additional 10% of the purchase price. Blue Marine handles the warranty claim process for you. Email support@bluemarine.com.
