Victron Energy Orion Non-Isolated High-Power DC-DC Converter (12/24/48V)
Free shipping over $49
60-day hassle-free returns
The Orion non-isolated high-power DC-DC converter series delivers stable, high-current voltage conversion between common DC systems — 12 V, 24 V, and 48 V. Use it to run 12 V loads from a 24 V or 48 V bank, to step 12 V up to 24 V, or to feed heavy-draw DC equipment with a clean, regulated supply. These are the workhorse converters for marine, RV, commercial-vehicle, and industrial systems where galvanic isolation isn't required.
Converter — and, on adjustable models, a buffer charger
Models with an adjustable output voltage can do double duty: set the output to your battery's float voltage and they will buffer-charge a battery — for example, keeping a 12 V starter or accessory battery topped up from a 24 V system. The fixed-output models (the 12/24-8, 24/12-40, and 24/12-60) are regulated converters/power supplies only and are not intended for charging. None of these are smart, multi-stage chargers; for adaptive alternator charging of a service bank, use an Orion-Tr Smart or Orion XS DC-DC charger.
High current, efficient, and continuous-duty
The range runs from 8 A up to 80 A of continuous output, with efficiencies up to 96%. Higher-current models use a temperature-controlled fan; all are protected against short circuit, overload, and over-temperature. Up to five units can be paralleled (adjustable models) to increase total output.
Simple, flexible installation

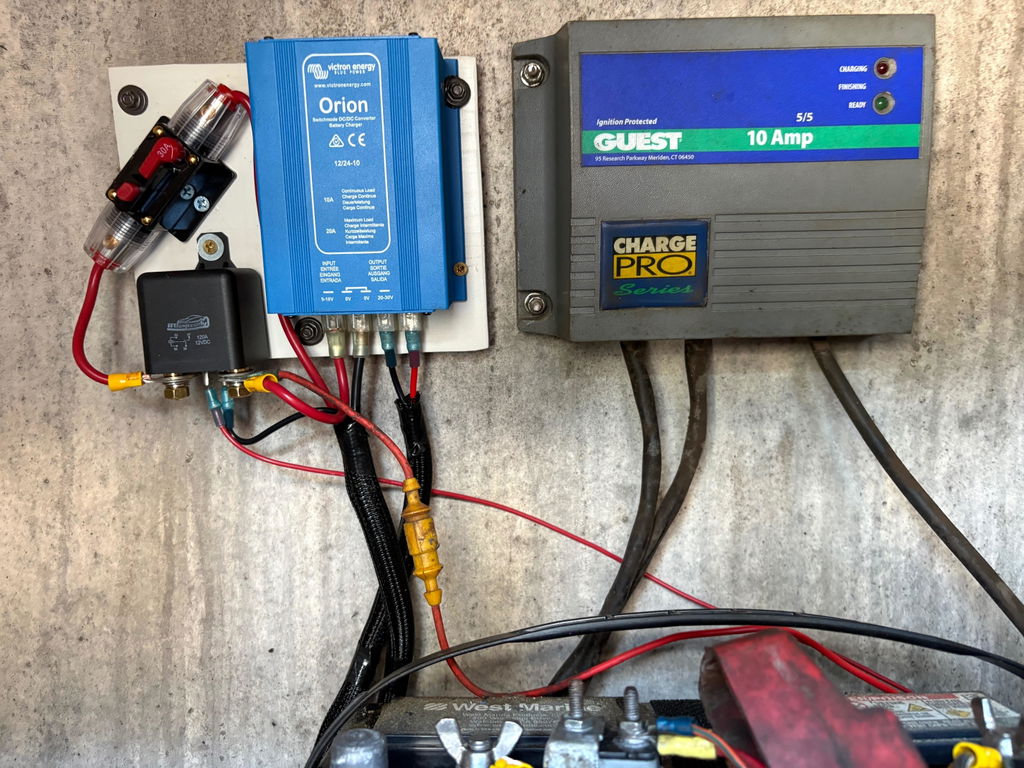

Most models include a remote on/off terminal, so an ignition signal or low-power switch can control the converter without a high-current switch in the input wiring. Connections vary by model: 6.3 mm Faston (spade) tabs on lower-current units, M6 bolts on higher-current units, and binding posts on the dedicated binding-post versions. Operating range is −20 to +55 °C.
Installation note: these converters are rated IP20 (indoor / protected location). On a boat or in an RV, mount them in a dry, ventilated space away from spray.
Choosing your model
Pick by input → output direction (12→24 V, 24→12 V, or 48→12 V) and continuous output current. Adjustable-output models also let you fine-tune the voltage (and buffer-charge). The output current, adjustability, terminal type, fan, and dimensions for each model are listed on the variant below.
Why buy from Blue Marine
Blue Marine is an authorized Victron Energy dealer. Every Orion converter ships brand-new with the full 5-year Victron warranty, free shipping, and local pickup available. Not sure whether you need a converter or a smart DC-DC charger, or which current rating fits your loads? We rig Victron systems on real boats — ask us before you order.
Manuals & Datasheets
Datasheets
- Orion High-Power DC-DC Converter — Datasheet (EN)
- Orion High-Power DC-DC Latest Models — Datasheet (EN)
Manuals
- Orion 12/24-8A DC-DC Converter — Manual (EN)
- Orion High-Power 24/12-25A — Manual (EN)
- Orion High-Power 24/12-40A — Manual (EN)
- Orion High-Power 24/12-70A — Manual (EN)
Guides & resources
- Orion 12/24-8A IP20 — Enclosure Dimensions
- Orion 12/24-8A IP20 — Enclosure 3D Drawing
- Orion 24/12-12A Converter — Enclosure Dimensions
Need a document you don't see here? Schedule a consultation or email support@bluemarine.com and we'll send it over.
