Victron BlueSolar MPPT Charge Controller — 150/35 to 250/100
Free shipping over $49
60-day hassle-free returns
The full large-controller range — same charging as the SmartSolar, without built-in Bluetooth. The Victron BlueSolar MPPT 150/35 through 250/100 covers everything from a 35 A mid-range controller to the 100 A flagships, with 150 V or 250 V of PV input and full 12 / 24 / 36 / 48 V battery support. The charging hardware is identical to the SmartSolar range; Bluetooth simply isn't built in. Add a VE.Direct Bluetooth Smart dongle for wireless setup, or configure over VE.Direct with a GX device. Want Bluetooth out of the box? Choose a SmartSolar model.
Who the BlueSolar MPPT 150/35–250/100 is built for
- Larger off-grid homes and cabins — 48 V banks and multi-kW arrays, where 35–100 A of charge is needed.
- Bluewater and liveaboard yachts — big arch and bimini arrays that have outgrown the 100-series.
- Expedition vehicles and large RVs — rooftop arrays feeding a 24 V or 48 V house bank.
- Installers and GX-monitored systems — the VE.Can models daisy-chain into one synchronised system; if you run a GX device you monitor over VE.Direct anyway.
How to read the model number
- First number = max PV input voltage. 150 V or 250 V — the higher ceiling lets you run more panels in series.
- Second number = max charge current. 35, 45, 60, 70, or 100 A into the battery.
Combine those with the maximum PV wattage your system voltage supports to size the controller. Wesley walks through the full math in our MPPT sizing guide.
VE.Direct or VE.Can?

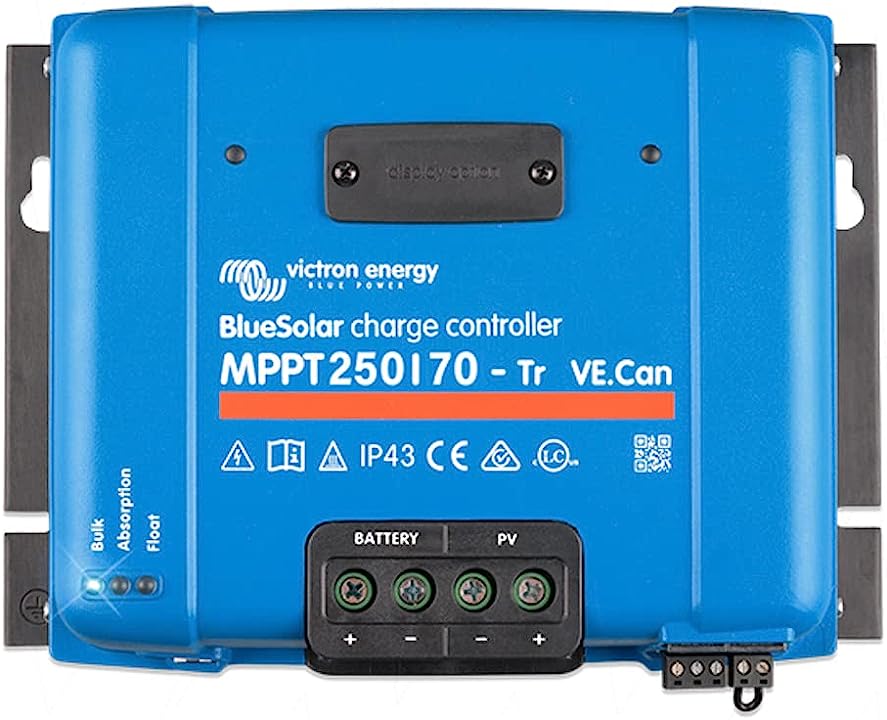

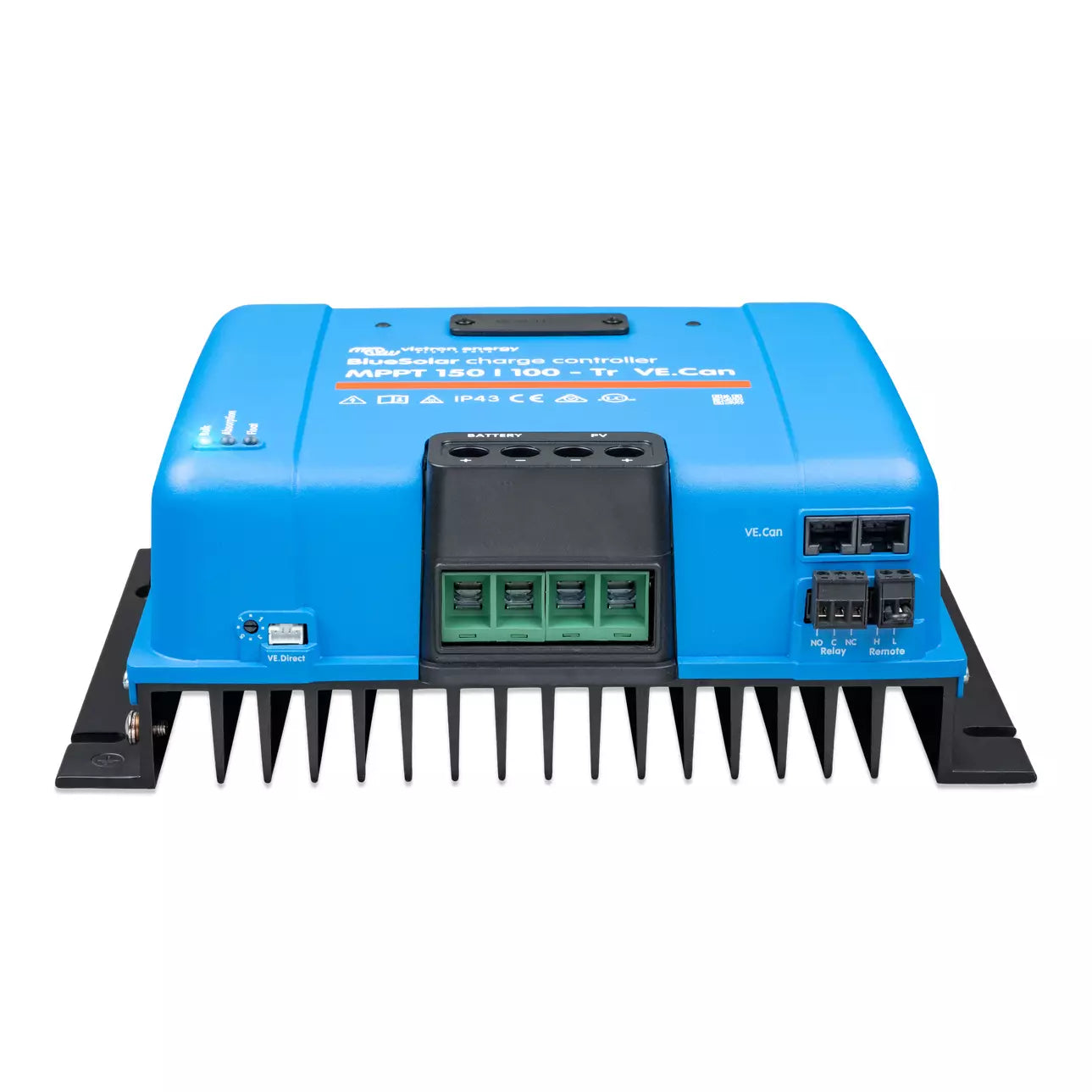

Every model here has a VE.Direct port. The 150/100, 250/70, and 250/100 add a VE.Can port, which lets you daisy-chain up to 25 controllers into one synchronised system — the right choice for large multi-controller arrays. The smaller VE.Direct-only models are ideal for single-controller systems. (A VE.Can bus needs a 120 Ω terminator at each end — see accessories.)
Tr or MC4 — which PV connection?

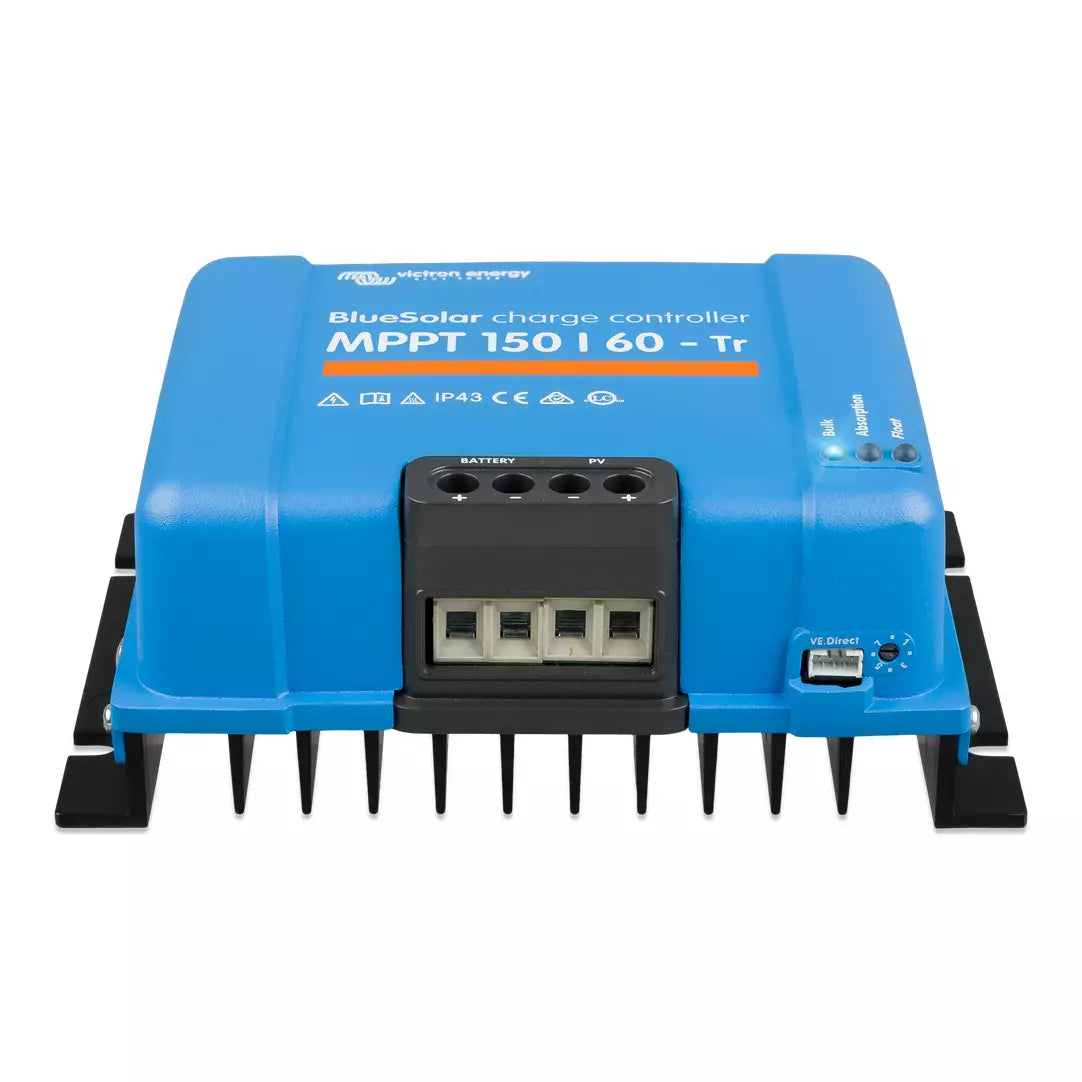

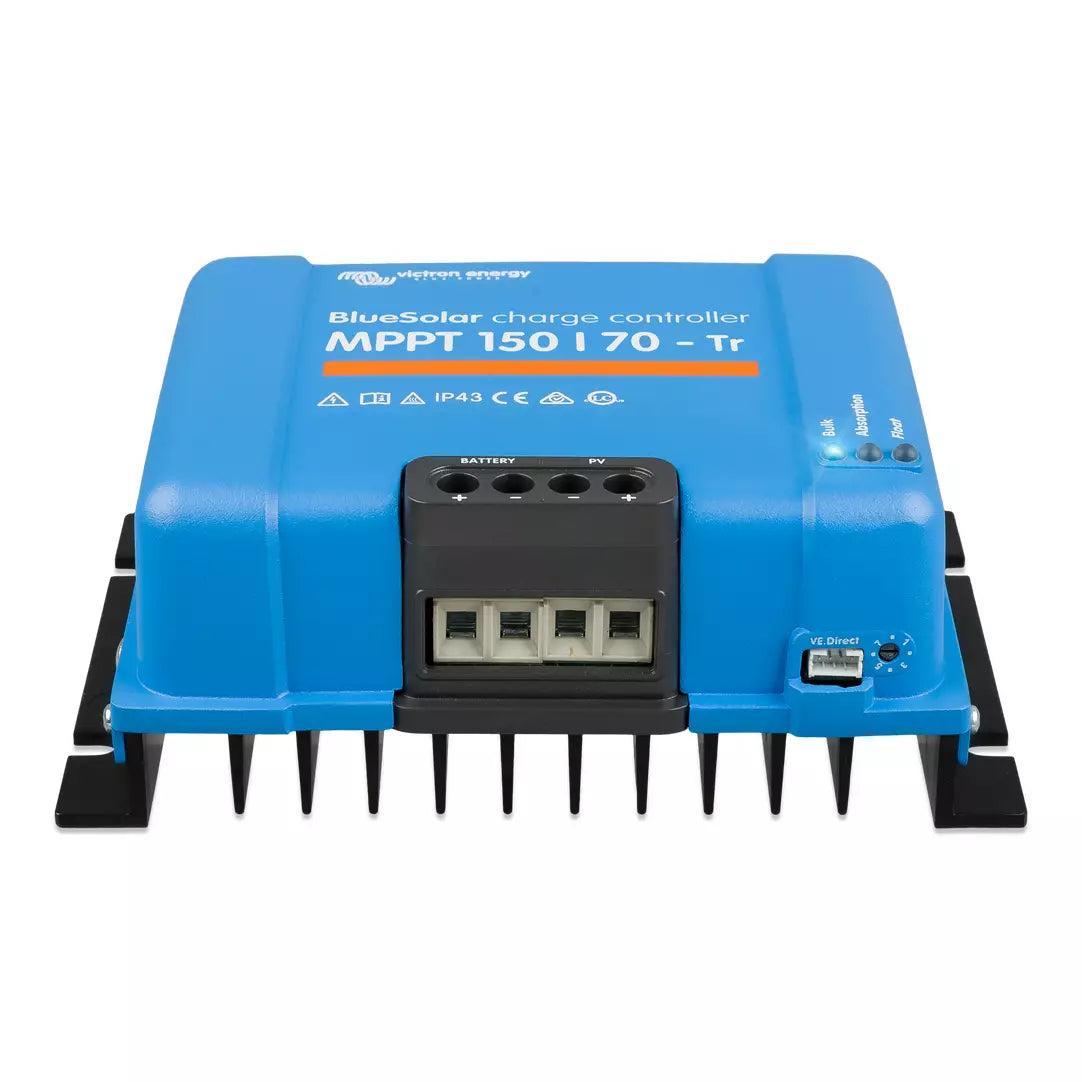

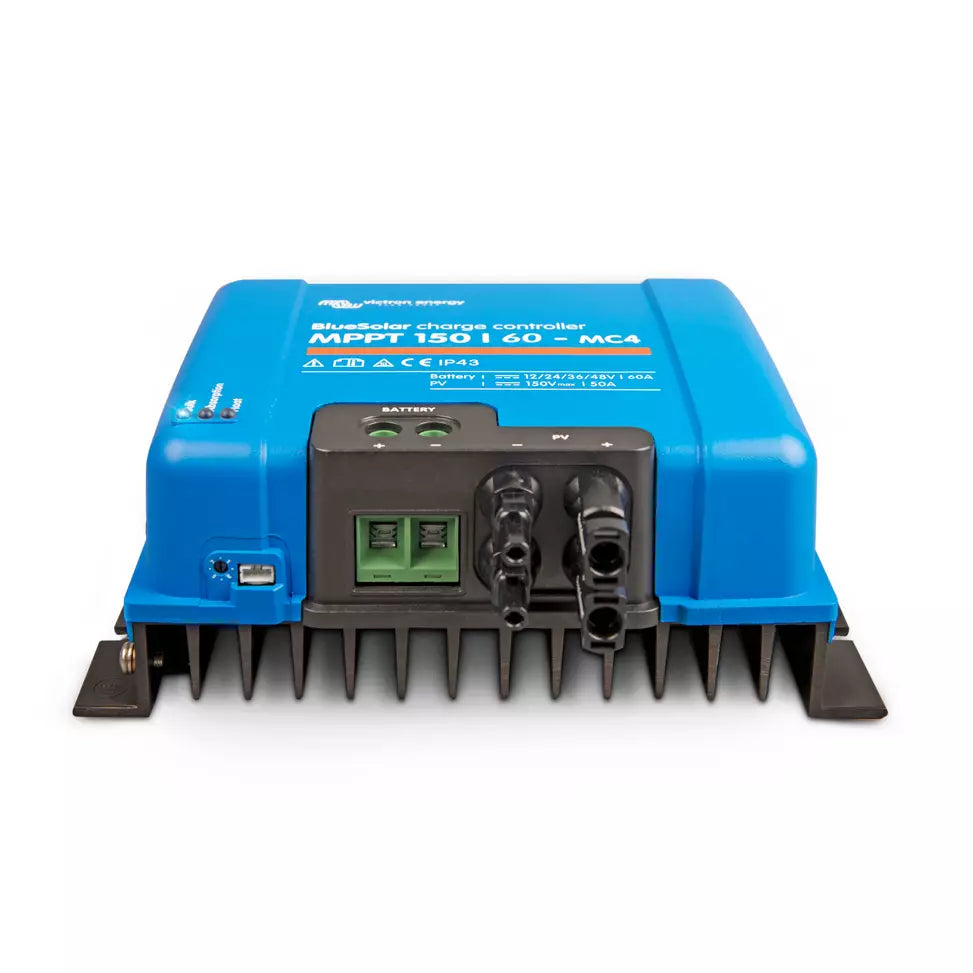

The 150/60 and 150/70 are offered in two versions: Tr (35 mm² / AWG 2 screw terminals — you bring your own PV wiring) or MC4 (two pairs of MC4 connectors built in). The other models use screw terminals.
Choose your controller
| Model | Comms | Max PV V | Charge A | Max PV power 12 / 24 / 36 / 48 V | Max PV short-circuit | Weight |
|---|---|---|---|---|---|---|
| 150/35 | VE.Direct | 150 V | 35 A | 500 / 1,000 / 1,500 / 2,000 W | 40 A | 1.25 kg |
| 150/45 | VE.Direct | 150 V | 45 A | 650 / 1,300 / 1,950 / 2,600 W | 50 A | 1.25 kg |
| 150/60 | VE.Direct | 150 V | 60 A | 860 / 1,720 / 2,580 / 3,440 W | 50 A | 3 kg |
| 150/70 | VE.Direct | 150 V | 70 A | 1,000 / 2,000 / 3,000 / 4,000 W | 50 A | 3 kg |
| 150/100 | VE.Can + VE.Direct | 150 V | 100 A | 1,450 / 2,900 / 4,350 / 5,800 W | 70 A | 4.5 kg |
| 250/70 | VE.Can + VE.Direct | 250 V | 70 A | 1,000 / 2,000 / 3,000 / 4,000 W | 35 A | 3 kg |

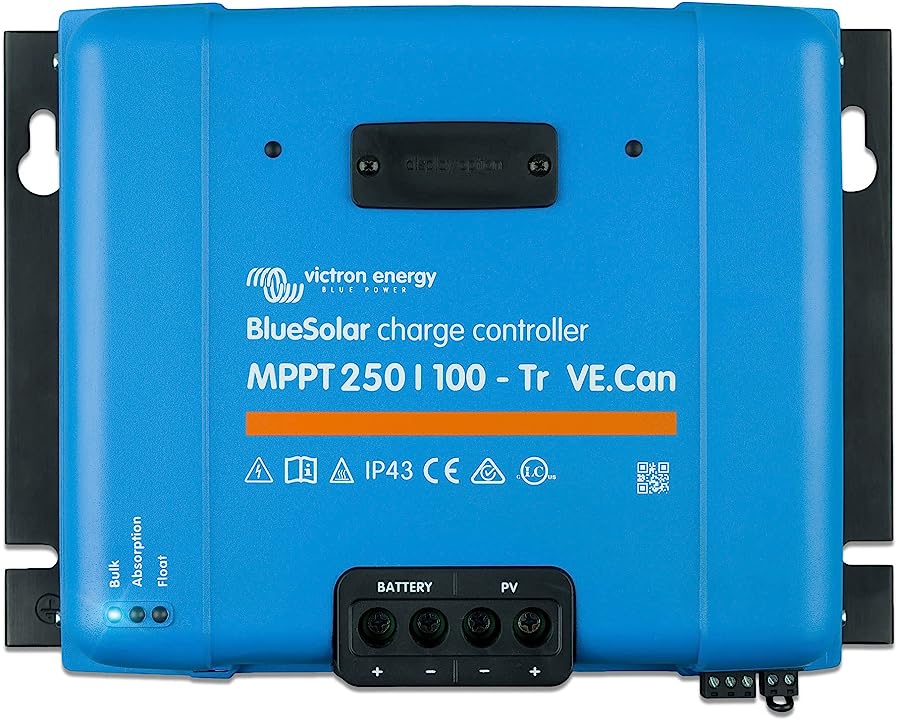

| 250/100 | VE.Can + VE.Direct | 250 V | 100 A | 1,450 / 2,900 / 4,350 / 5,800 W | 70 A | 4.5 kg |
12 / 24 / 48 V is auto-detected; 36 V is selected manually with the software tool. The 150-series runs at up to 98% efficiency, the 250-series up to 99%.
Why this range
- 35–100 A of charge. Covers mid-range arrays right up to multi-kW systems — up to 5,800 W of PV on a 48 V bank with the 100 A models.
- Ultrafast MPPT, up to 98–99% efficiency. The BlueSolar algorithm locks to the true power peak even under partial shading.
- VE.Can on the largest models. Daisy-chain up to 25 units for synchronised charging across a big array.
- Remote on/off + programmable relay on the 60 A and larger models — tie into a VE.Bus BMS and trip the relay on alarms or events.
- Add Bluetooth with a dongle. The VE.Direct Bluetooth Smart dongle gives the same VictronConnect experience as a SmartSolar.
- Multi-stage charging for every chemistry. Eight pre-programmed profiles plus a fully programmable mode; lithium must be set to the correct profile.
- 0 V recovery, passive cooling, 46-day trends. Starts a fully discharged bank, no fan, and stores a month and a half of history on the controller.
Shared specs
| Spec | Detail |
|---|---|
| Battery voltage | 12 / 24 / 48 V auto-select (36 V via software tool) |
| Max PV open-circuit voltage | 150 V (150-series) / 250 V (250-series) absolute max; 145 V / 245 V operating |
| Charge voltage (absorption / float) | 14.4 / 28.8 / 43.2 / 57.6 V · 13.8 / 27.6 / 41.4 / 55.2 V default, adjustable |
| Charge algorithm | Multi-stage adaptive; 8 pre-programmed + fully programmable |
| Maximum efficiency | 98% (150-series) / 99% (250-series) |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Self-consumption | Less than ~35 mA @ 12 V / 20 mA @ 48 V (model dependent) |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Protections | PV reverse polarity, output short circuit, over-temperature |
| Communication | VE.Direct (all); VE.Can added on 150/100, 250/70, 250/100. Bluetooth via optional dongle. |
| PV terminals | 16 mm² / AWG 6 (150/35, 150/45) or 35 mm² / AWG 2 / MC4 (60 A and larger) |
| Protection category | IP43 (electronics), IP22 (connection area) |
| Weight | 1.25 kg (150/35, 150/45) · 3 kg (60–70 A) · 4.5 kg (100 A) |
| Certifications | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Warranty | 5 years from date of purchase (extendable to 10 years for a 10% surcharge) |
Pair with
- VE.Direct Bluetooth Smart dongle — adds wireless VictronConnect setup and monitoring.
- RJ45 UTP cables & VE.Can terminators — for the VE.Can models on a multi-controller bus.
- Battery fuse — sized to the controller's charge current. Email us your model and we'll confirm the right MEGA fuse.
- Smart Battery Sense or BMV-712 — true battery voltage and temperature for more accurate charging.
- Cerbo GX MK2 or Ekrano GX — for always-on monitoring and remote access via VRM.
FAQs
Q: BlueSolar or SmartSolar?
Identical charging hardware. SmartSolar has Bluetooth built in; BlueSolar takes a VE.Direct Bluetooth dongle (or configures over VE.Direct with a GX device).
Q: Which models have VE.Can?
The 150/100, 250/70, and 250/100. Choose those for multi-controller synchronisation (up to 25 units). The smaller models are VE.Direct only.
Q: 150 or 250 — which max PV voltage?
Add up the cold-temperature open-circuit voltage of your series string. Stay below 145 V for the 150-series or below 245 V for the 250-series.
Q: Tr or MC4?
Only the 150/60 and 150/70 offer a choice: Tr (screw terminals) for a combined home-run, or MC4 to plug panel strings straight in (two pairs, max 30 A per connector).
Q: Can I use lithium?
Yes — select the lithium profile in setup (or follow the maker's voltages for third-party LFP).
Q: Does it have a load output?
No. These larger models have no load output — wire loads to the battery (through a BatteryProtect for low-voltage disconnect).
Q: What's the warranty?
5 years from date of purchase, extendable to 10 years for a 10% surcharge.
Still sizing your array? Read Wesley's MPPT sizing guide, or email support@bluemarine.com — a tech will confirm the right controller, terminators, and fuse before you order.
