Bixpy K-1 Outboard Kit
Free shipping over $49
60-day hassle-free returns
Overview
The K-1 Outboard Kit is Bixpy's best-selling way to put a motor on almost anything that floats — paddleboards, kayaks, canoes, and small inflatables. Everything you need comes in one box: the 2.7 lb K-1 motor, a buoyant waterproof Power Pack, a wireless remote, and a magnetic kill switch. Clip the motor to a mounting adapter, strap the battery down, and you're moving at up to 5.5 mph without paddling.
What makes the K-1 different from a trolling motor is how small and versatile it is. The motor weighs less than a full water bottle, the battery floats if it goes overboard, and the whole system runs from a wireless remote with 12 forward and 3 reverse speeds. For paddlers here in the Northwest, it's the difference between fighting an outgoing tide and enjoying the ride home.
One thing to plan for: the kit doesn't include a mounting adapter, because every craft attaches differently. Paddleboards use one of the SUP fin box adapters — see Compatibility & Mounting below to find the right one for your board.
Key Features
- 38 lb of thrust from a 2.7 lb motor — direct-drive brushless and water-cooled, with a NASA-inspired propeller that resists weed wrap.
- Buoyant, waterproof Power Pack — the included battery floats, is sealed to IP67, and doubles as a power bank with 5V USB and 12V outlets for phones, fish finders, and lights.
- Wireless remote with kill switch — 12 forward and 3 reverse speeds from your wrist, plus a magnetic kill-switch leash that cuts power instantly if you go in the water.
- All-day runtime — around 10 hours at low speed, or over an hour at full throttle on a typical 12 ft board.
- Fresh and salt water ready — the motor is waterproof to 100 ft; rinse after saltwater days and it keeps going.
- Solar option — choose the SUN80 bundle and recharge the Power Pack off-grid in 6–10 hours of sun.
In the Box
- Bixpy K-1 Motor
- Power Pack battery (PP-378 V4)
- Wireless remote (V4)
- Magnetic kill switch with floating leash
- Universal wall charger
- Allen key and quick-start guide

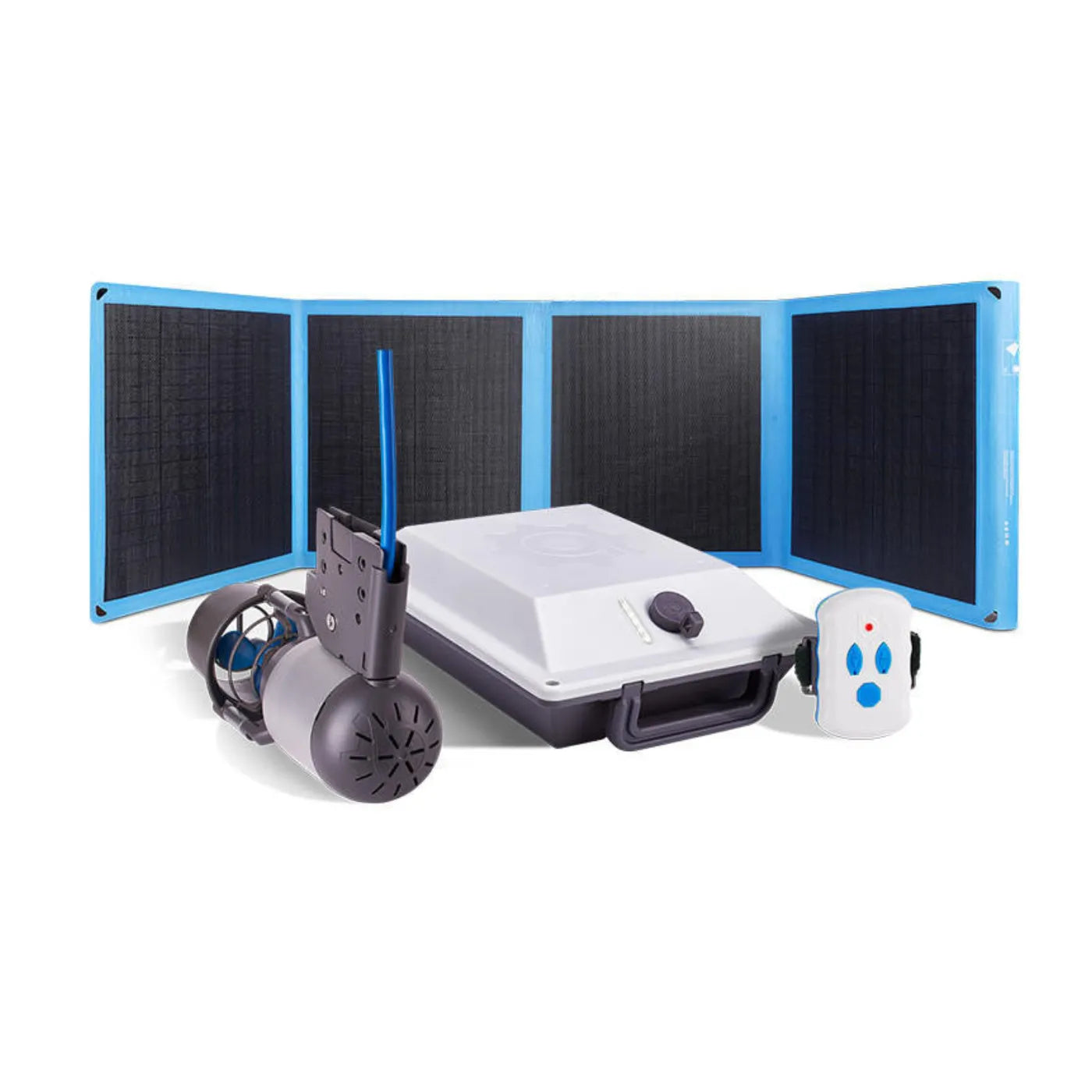

- Kit + SUN80 option adds: SUN80 V2 80W folding solar panel with charge cable
Technical Specifications
| Specification | Value |
|---|---|
| Motor thrust | Up to 38 lb |
| Motor weight | 2.7 lb (1.2 kg) |
| Motor type | Direct-drive brushless, water-cooled electronics |
| Water flow output | 130 GPM |
| Motor waterproof rating | To 100 ft (30 m) |
| Battery | Bixpy Power Pack (PP-378 V4), 378 Wh, 25.2 V nominal |
| Battery weight | 7.2 lb (3.25 kg), positively buoyant |
| Battery rating | IP67 water and dust proof |
| Speeds | 12 forward / 3 reverse, wireless remote |
| Typical runtime (12 ft board, 210 lb load) | ~10 hr low speed / ~4 hr mid / ~1.25 hr full throttle |
| Typical top speed | ~5.5 mph (varies with craft, load, and conditions) |
| Wall charge time | ~5.5 hours |
| Auxiliary outputs | 5V USB and 12V on the battery |
| Water compatibility | Fresh and salt water |
Applications & Use Cases
Paddleboarders use the K-1 to get back against wind and current, extend fishing range, or just cover more water. Kayakers add it for trolling and long crossings. It also suits canoes, packrafts, and small inflatables — anywhere a full trolling motor and lead-acid battery would be too much weight and bulk. Around Puget Sound, the tide doesn't always agree with your schedule; a K-1 means the trip home takes the time you planned, not the time the current allows.
Compatibility & Mounting
The K-1 clicks onto Bixpy's mounting adapters — the kit itself ships without one, so add the mount that matches your craft:
- Paddleboards: one of the SUP Fin Box Adapters (US fin box, Slide & Lock, or Flip & Lock), or a DIY fin box adapter if your board has no fin box.
- Kayaks, canoes, and dinghies: Bixpy makes power-pole, rudder, transom, and pedal-drive-well adapters — we're adding these to our catalog; ask us and we'll get you the right one.
- Not sure? Bixpy's adapter finder at bixpy.com/bixpyymm matches adapters to hundreds of specific board and kayak models.
The included Power Pack runs the motor on its own — no wiring needed. If you'd rather run the K-1 from your own 24V battery, look at the K-Power Motor Kit instead.
Care & Maintenance
Rinse the motor with fresh water after saltwater use and check the propeller for fishing line or weeds now and then. The K-1 Kare Kit keeps a spare propeller, weed grill, and remote battery in your kit bag. Store the Power Pack indoors at moderate temperature, and top up the charge before long storage.
Warranty
Covered by Bixpy's 1-year limited warranty against defects in materials and workmanship (2 years in the EU), from the date of original purchase from Blue Marine or another authorized Bixpy dealer. Bixpy products are made for recreational use — commercial and rental use isn't covered. Warranty service runs through Bixpy's US headquarters in San Diego, and as an authorized dealer we'll help with any claim.
Resources
Bixpy hosts installation guides, videos, and user manuals at bixpy.com/guides and bixpy.com/usermanuals, plus the adapter finder at bixpy.com/bixpyymm. Questions about matching a motor to your board or building a solar charging setup? Schedule an online consultation with one of our advisors.
Manuals & Documents
Need a document you don't see here? Schedule a consultation or email support@bluemarine.com and we'll send it over.
