This introductory off‑grid power system is ideal for small campers and towables. It delivers 1.2 kVA of continuous pure‑sine output (with a 2.2 kW surge) and includes 1.28 kWh of lithium battery storage. Its compact footprint keeps weight and space down, making it a budget‑friendly choice for minimalist rigs that still need reliable 120 V power.

Key Features

Compact 12 V system: The 1,200 VA inverter (2,200 W peak) and 1,280 Wh battery capacity run lights, laptops, cameras, a small TV and other modest loads, making it perfect for teardrop trailers and camper vans.
A 12.8 V/100 Ah LiFePO₄ battery provides safe, maintenance‑free energy with long cycle life.
Smart charging and monitoring: The SmartSolar MPPT 75/15 maximises solar harvest to fast‑charge the batteries.
Optimised for everyday off‑grid comforts: Designed to power LED lights, fans, laptops, small TVs and phone chargers, this system allows you to enjoy modern conveniences without shore power.
Tailored for 12 V RVs: Minimal space is required, making this a lean set‑up that’s perfect for small RVs or towables. It safely powers basic household appliances and provides near‑range monitoring, configuration and control via Bluetooth, as well as battery monitoring through a local display and the VictronConnect app. The system also features smart, efficient solar charging technology.

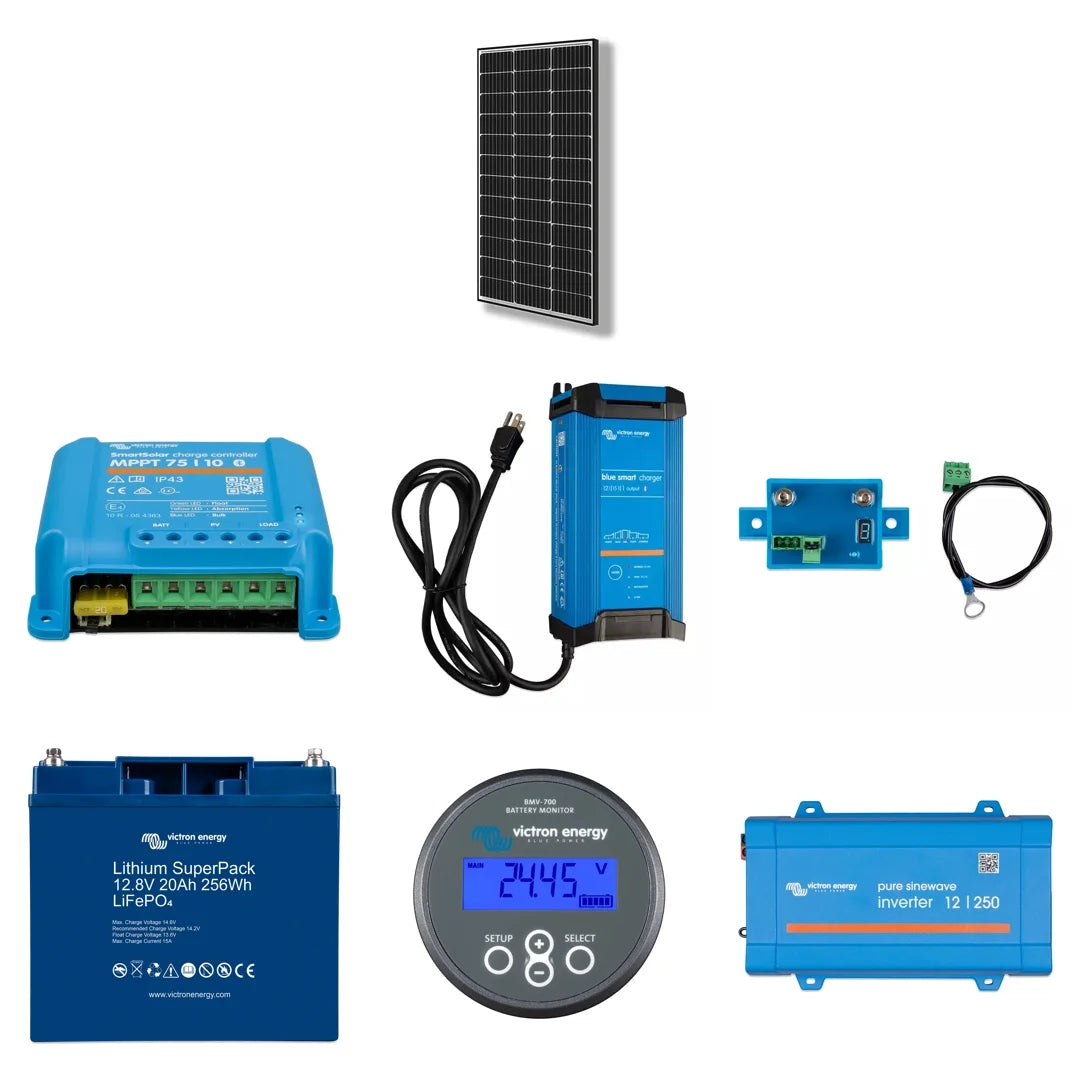

Main System Components

Solar panels: Two Lumera 100 W rigid panels provide up to 200 W of solar charging (mounting hardware and wiring not included).
SmartSolar MPPT 75/15: Maximises solar energy harvest and rapidly charges the battery; Bluetooth‑enabled for monitoring via the VictronConnect app.
Inverter: VE.Direct unit converts 12 V to a 110/120 V pure sine wave to safely power household appliances.
Battery charger: Blue Smart IP22 adapts its charge profile to efficiently recharge batteries from shore power; Bluetooth‑enabled for app monitoring.
Battery pack: Lithium SuperPack LiFePO₄ battery stores and distributes energy.
Battery protector: Automatically disconnects DC loads to prevent deep discharge; Bluetooth‑enabled for status monitoring.
Battery monitor: BMV series monitor tracks energy consumption and remaining battery capacity; Bluetooth‑enabled for easy monitoring.

Installation considerations: Solar panel mounting hardware, system wiring and fuses are not included. Refer to the wiring diagram for component connections and consider hiring an electrician or installation expert for professional installation. Note: Some of the items show in the wiring diagram are not included in this kit.
