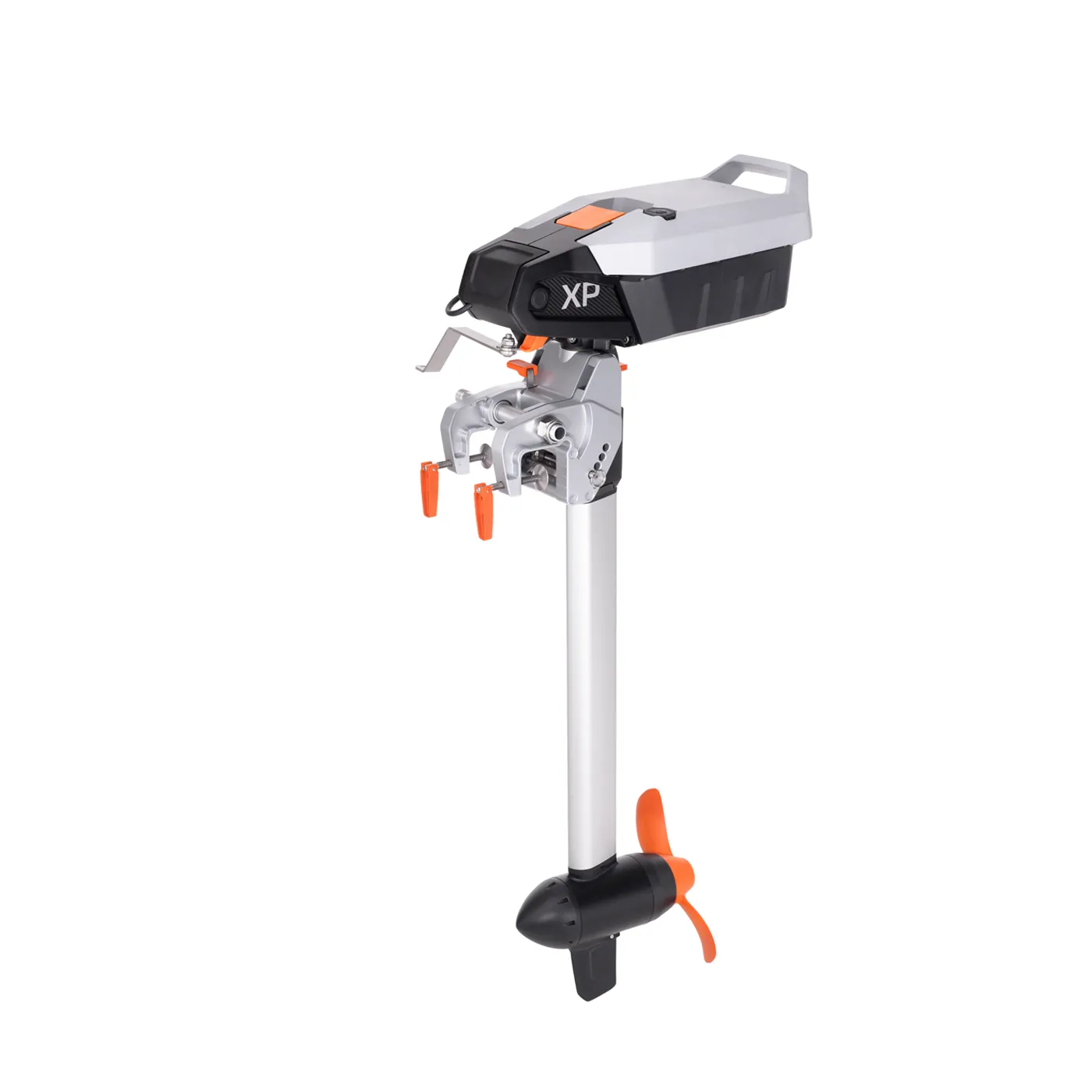

Torqeedo Travel XP Remote 5 HP Electric Outboard

The Torqeedo Travel XP Remote (1164-00) is the remote-steer version of Torqeedo's strongest Travel motor, built for boats run from a helm or console rather than a tiller. It delivers 1,600 W of input power (1,400 W shaft output, ~5 HP-equivalent) for about 44% more thrust than the standard Travel, with quiet, clean, emission-free operation and full IP67 waterproofing.

This version includes the TorqLink remote throttle (control type R, item 1976-00) so you can steer and control the motor remotely. Battery not included — the Travel XP Remote is designed for the Torqeedo Travel Battery XP (recommended for full output) and also runs on the standard Travel Battery at reduced output. Batteries are sold separately.

Key Features

• 1,600 W input power (1,400 W shaft output, ~5 HP-equivalent) — ~44% more thrust than the standard Travel.
• TorqLink remote throttle included (type R, 1976-00) for helm/console control.
• 44 V system with GPS-based range, battery, and speed data.
• 4-position trim and 90° tilt with auto kick-up and shallow-water positions.
• Lightweight — motor only about 27.8 lbs (12.6 kg) for the S shaft.
• Waterproof to IP67; ships with an 11x8 weedless propeller.
• TorqTrac Bluetooth app — view range and trip data on your smartphone.
• Available in Short (S) and Long (L) shaft versions.

How to Measure Your Transom Height & Choose Your Shaft Length

Picking the right shaft length is the single most important fitment decision on any outboard. It comes down to your boat's transom height — if the shaft is too short the propeller ventilates (sucks air) and loses thrust; too long and it adds unnecessary drag.

1. Measure your transom height. With the boat level, measure straight down from the top of the transom (where the motor clamps) to the lowest point of the hull/keel at the centerline.
2. Match it to the shaft length. Per Torqeedo's own guidance, a transom of about 15 in (38 cm) calls for the Short (S) shaft; about 20 in (51 cm) calls for the Long (L) shaft.
3. When you're between sizes, size up. A slightly long shaft runs fine; a too-short shaft will cavitate.

Specifications

• Input power: 1,600 W (1,400 W shaft output, ~5 HP-equivalent)
• System voltage: 44 V nominal
• Max current: 40.0 A
• Motor weight: S 27.8 lbs (12.6 kg) / L 28.7 lbs (13.0 kg), without battery
• Shaft length: Short 24.6 in (62.5 cm) / Long 29.5 in (75 cm)
• Standard propeller: 11x8 (weedless); max 1,400 rpm
• Control: TorqLink remote throttle (type R, 1976-00) included; GPS-based range data
• Steering 360°; 4-position trim; tilt to 90° with auto kick-up
• Waterproof rating: IP67; TorqTrac Bluetooth app
• Battery: Travel Battery XP (recommended) or Travel Battery at reduced output (sold separately)

Warranty

The Travel XP Remote is covered by Torqeedo's 24-month limited warranty from date of delivery against defects in workmanship and materials under normal, non-commercial use with proper installation and maintenance — Torqeedo repairs or replaces at its discretion. Normal wear and routine servicing are excluded, and claims must be made within 6 months of discovering the issue.

Blue Marine is an authorized Torqeedo dealer — ships brand-new with Torqeedo's 24-month limited warranty, free shipping, and local pickup available.
