Victron Energy Measurement Shunt (500A–6000A, 50mV)

A bare precision current-measurement shunt — the same component that ships inside Victron BMV battery monitors, without the quick-connect circuit board or Bluetooth electronics. A shunt is a calibrated low-resistance bar that drops exactly 50 mV at its rated current, so any compatible meter or battery monitor can read current by measuring that millivolt signal.

Use it as a replacement shunt, a spare, or as the high-current measuring element for a custom monitoring setup. The 1000 A, 2000 A, and 6000 A versions also accept the quick-connect PCB from a standard Victron 500 A shunt, so you can scale a BMV monitor or SmartShunt well beyond its included 500 A shunt.

• Rated at 50 mV output across the full range — 500 A, 1000 A, 2000 A, and 6000 A

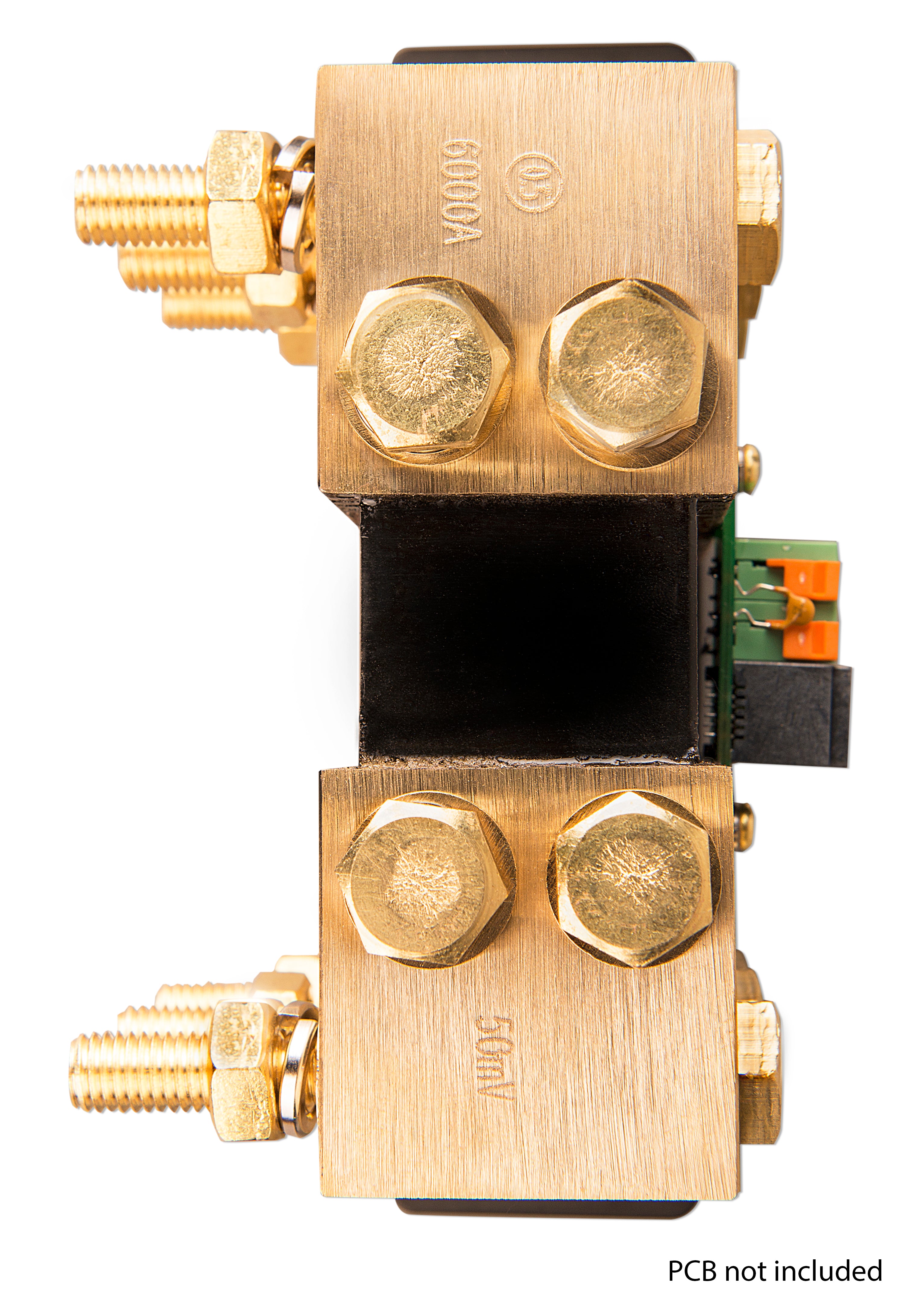

• 1000 A, 2000 A, and 6000 A are Class 0.5 accuracy with multiple M10 studs per side for high-current cabling

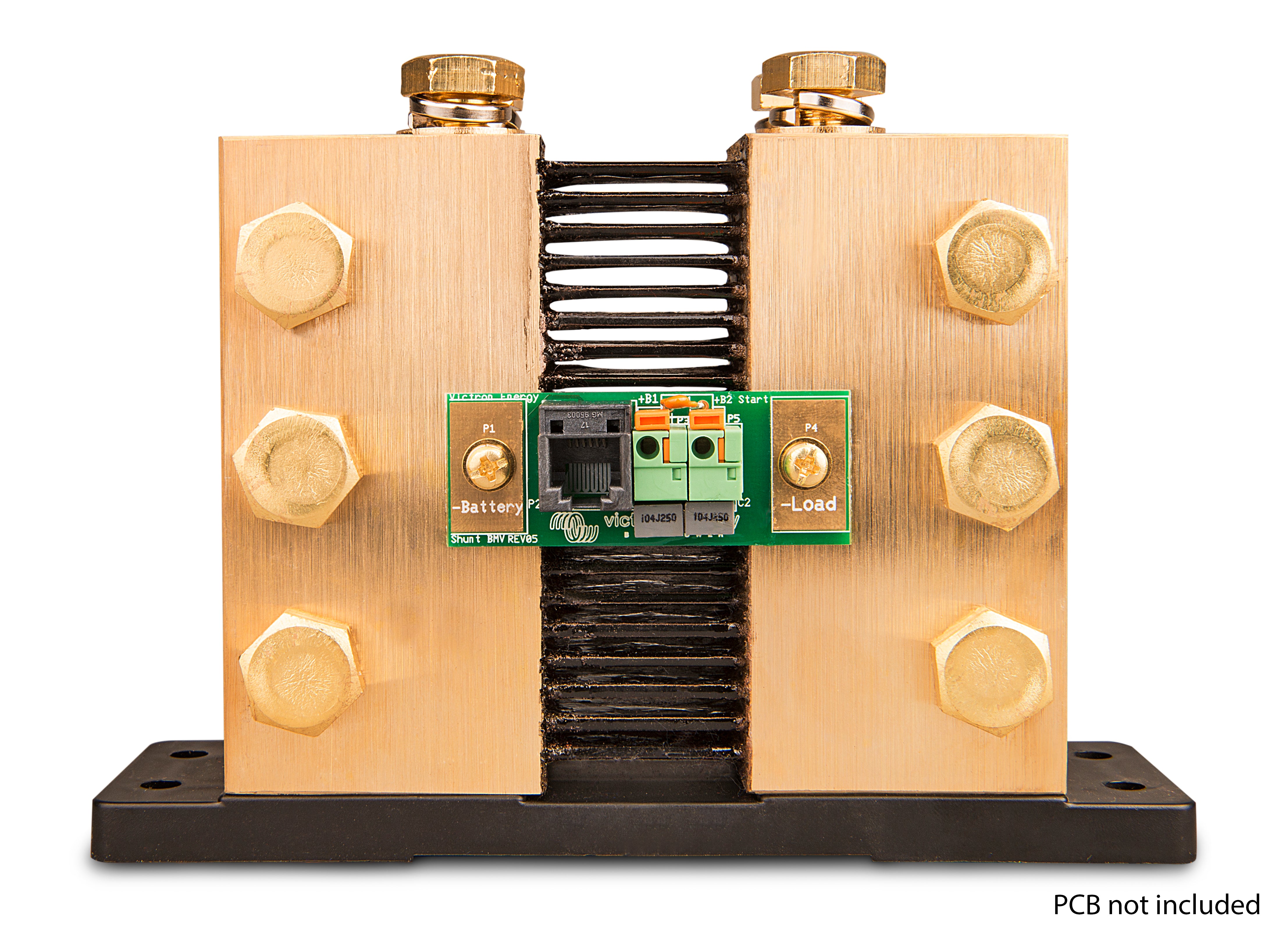

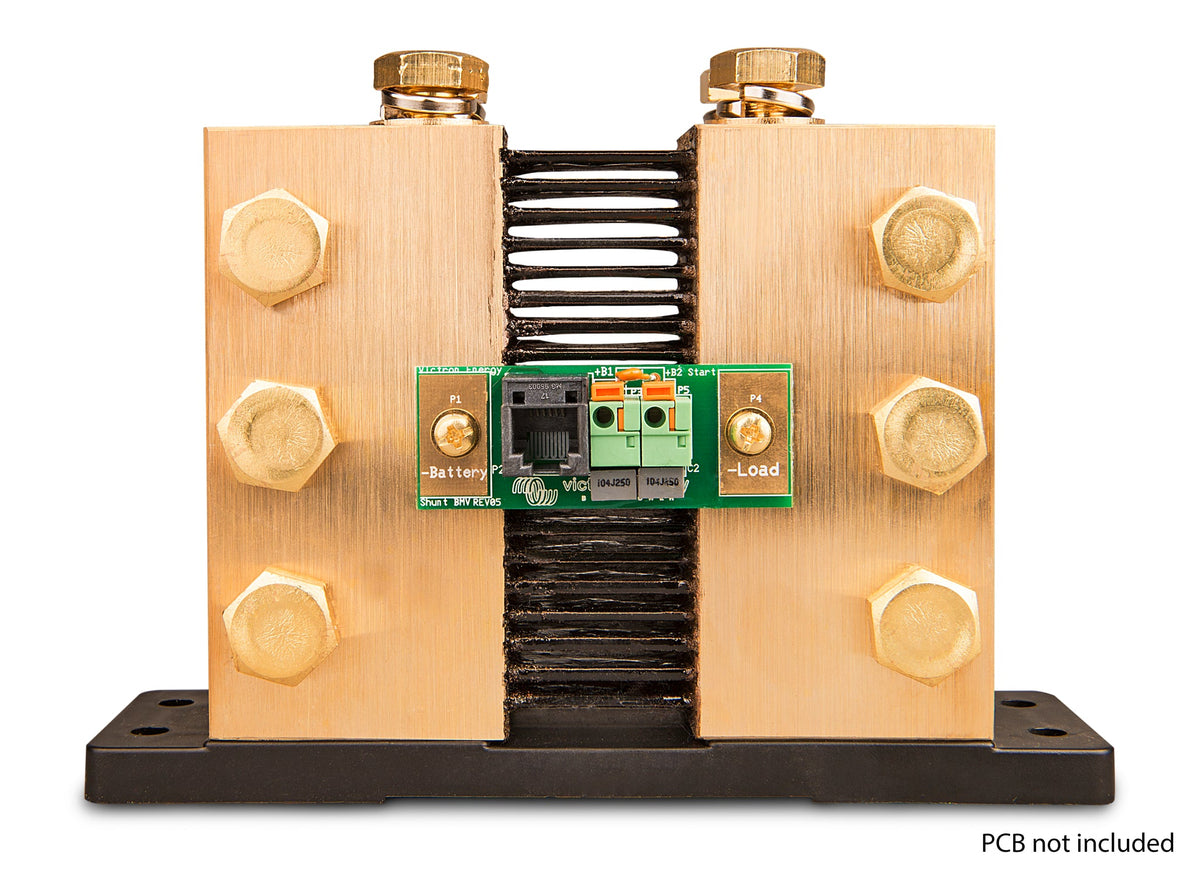

• 1000 A, 2000 A, and 6000 A accept the Victron 500 A quick-connect PCB — scale a BMV or SmartShunt to higher currents
• No electronics, no Bluetooth — pair with a BMV monitor, SmartShunt, or any 50 mV-compatible meter
• Ideal for large inverters, thrusters, traction packs, and high-current off-grid banks

Not sure which rating you need? Size the shunt above your worst-case continuous current. Get a custom quote or call (800) 628-6306.

Blue Marine is an authorized Victron Energy dealer — ships brand-new with the full 5-year Victron warranty, free shipping, and local pickup available.
