Victron Energy MC4 Solar Cable (PV-ST01)
Los Angeles — · Atlanta —
Victron's US warehouse count as of —. Indicative, not reserved.
Need more than we have in Seattle? Send us the quantity and we'll email you a secure checkout link. Larger orders going to a business address ship direct from Victron's US warehouse (typically 5–7 business days); everything else we bring into Seattle on our weekly Victron order and ship to you when it lands (typically 1–2 weeks).
Free shipping over $49
60-day hassle-free returns

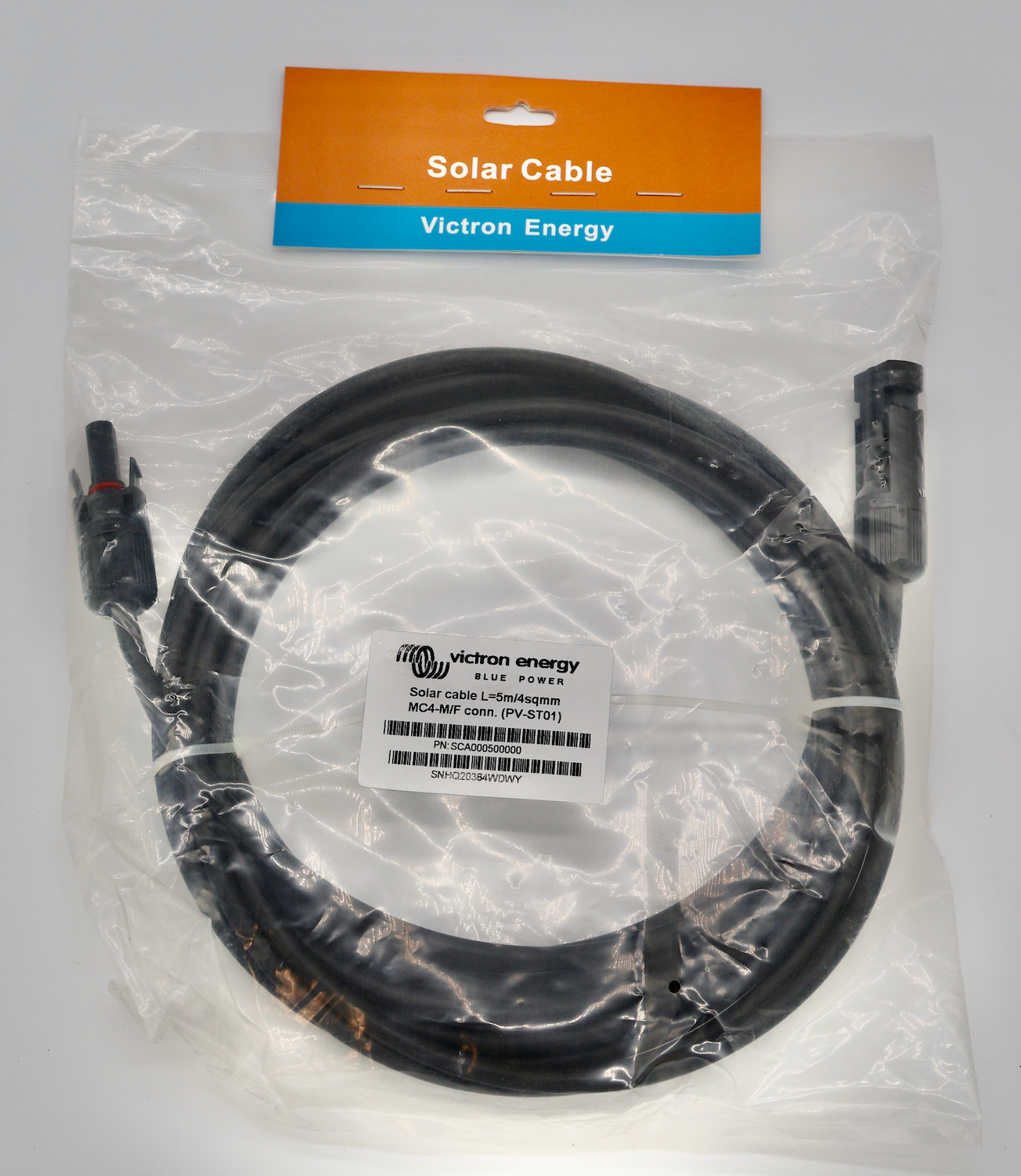

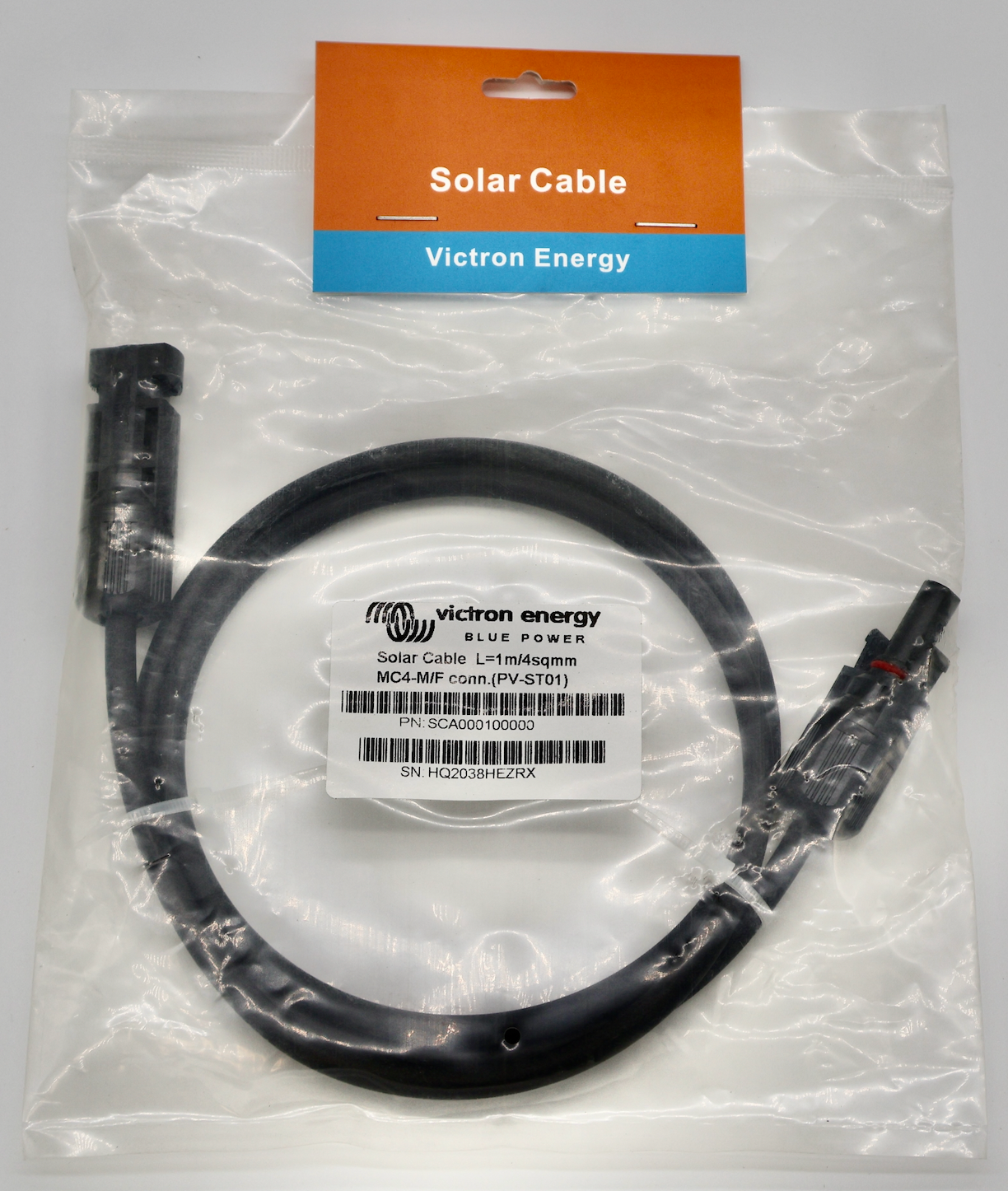

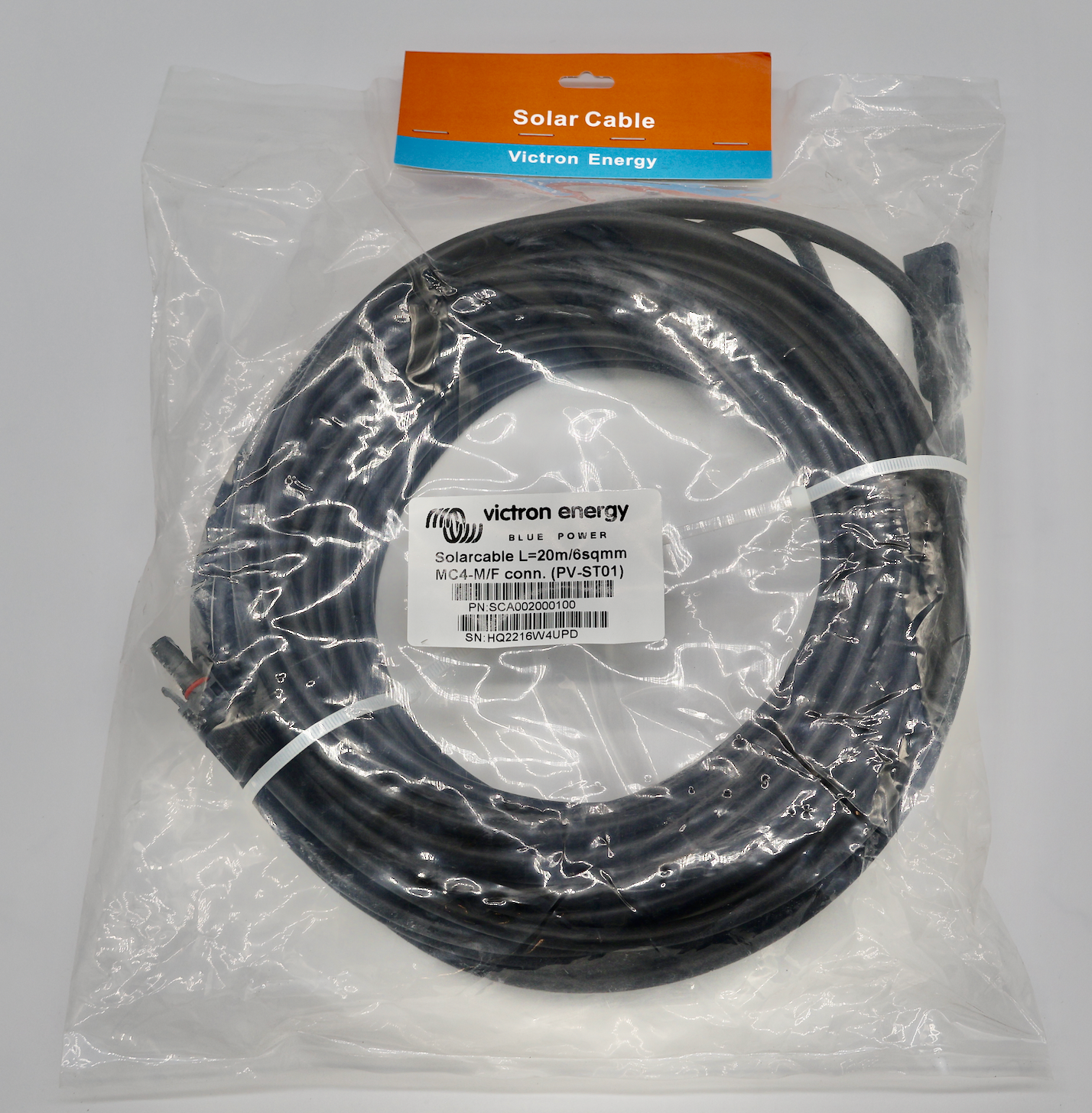

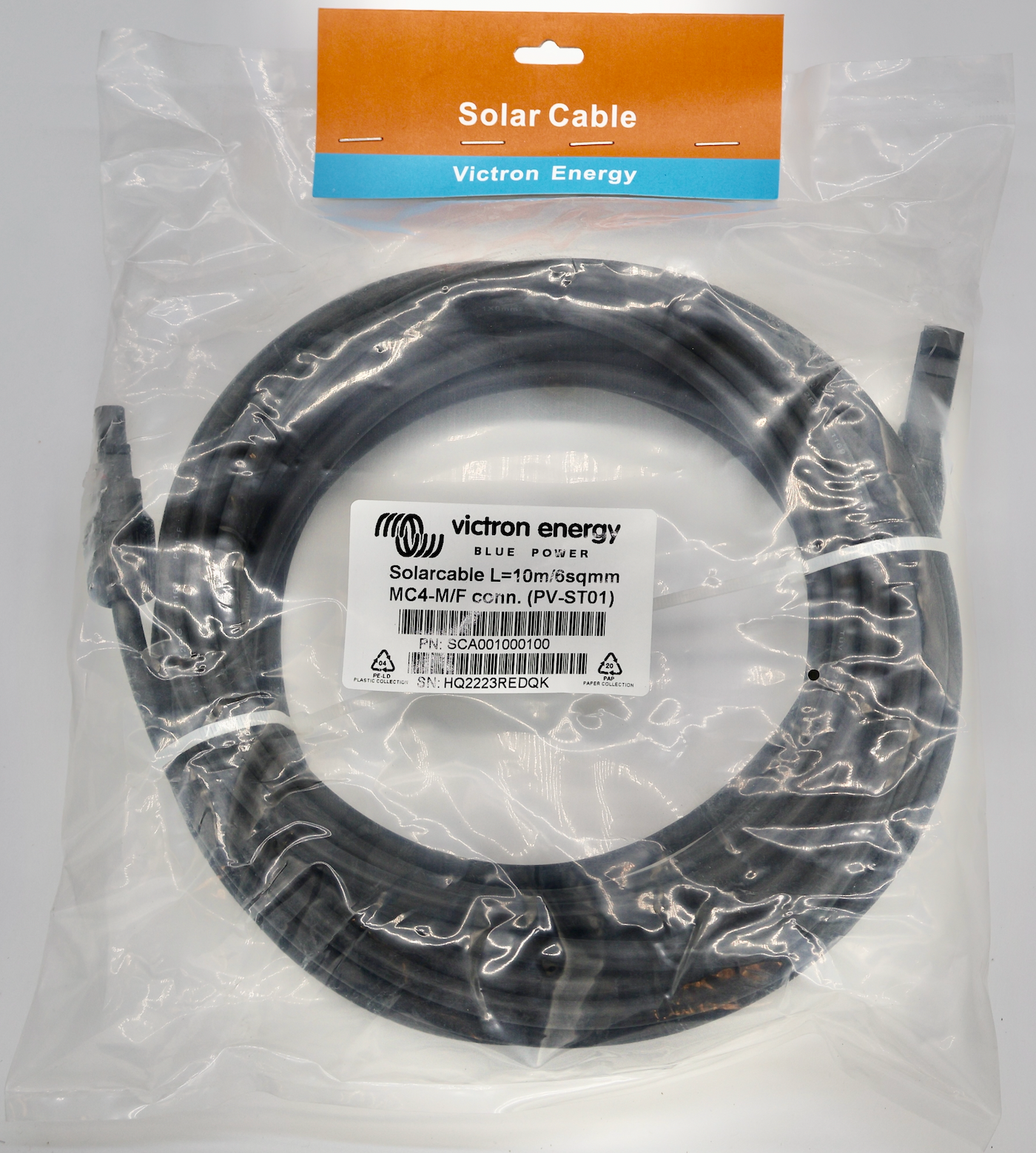

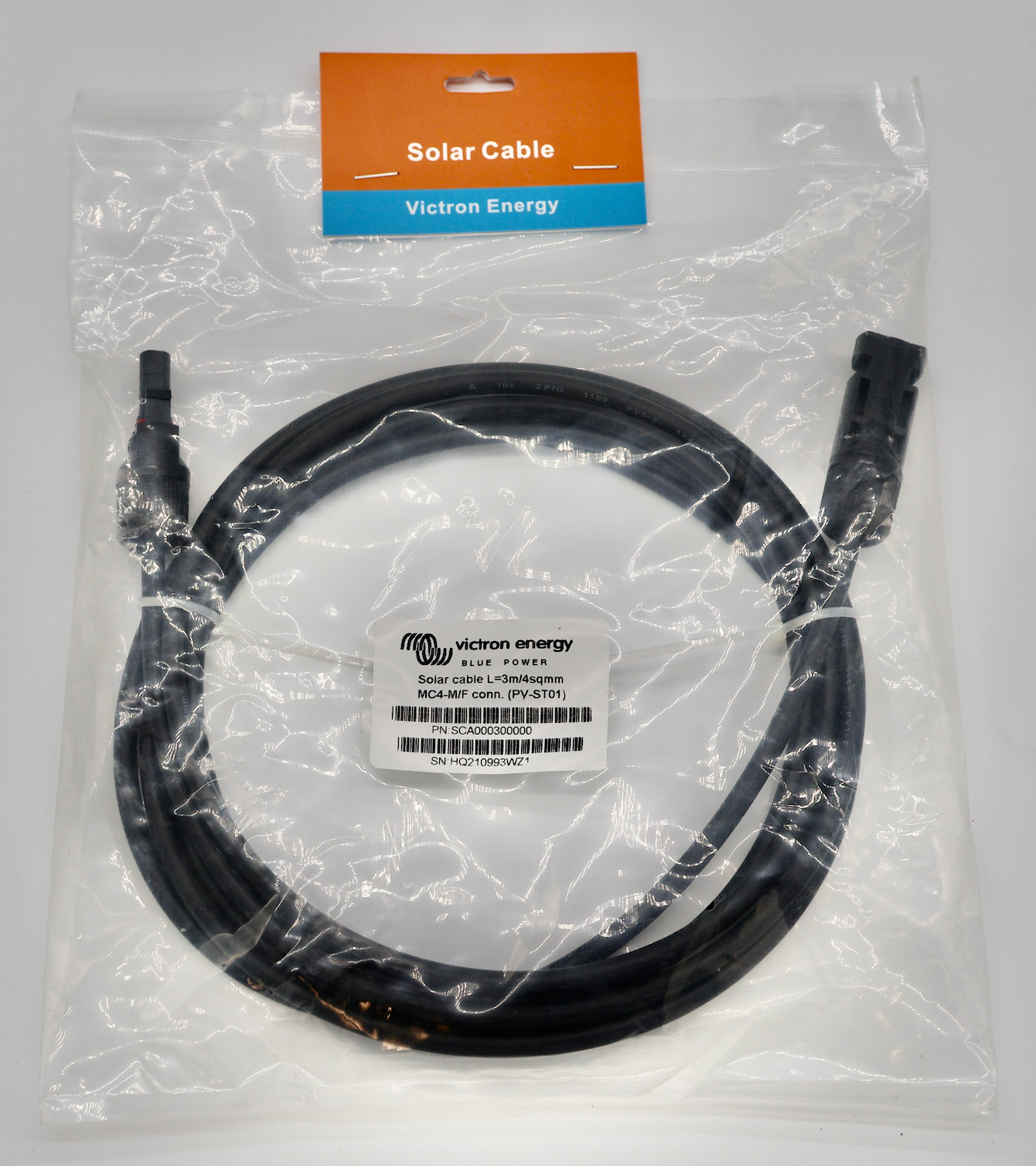

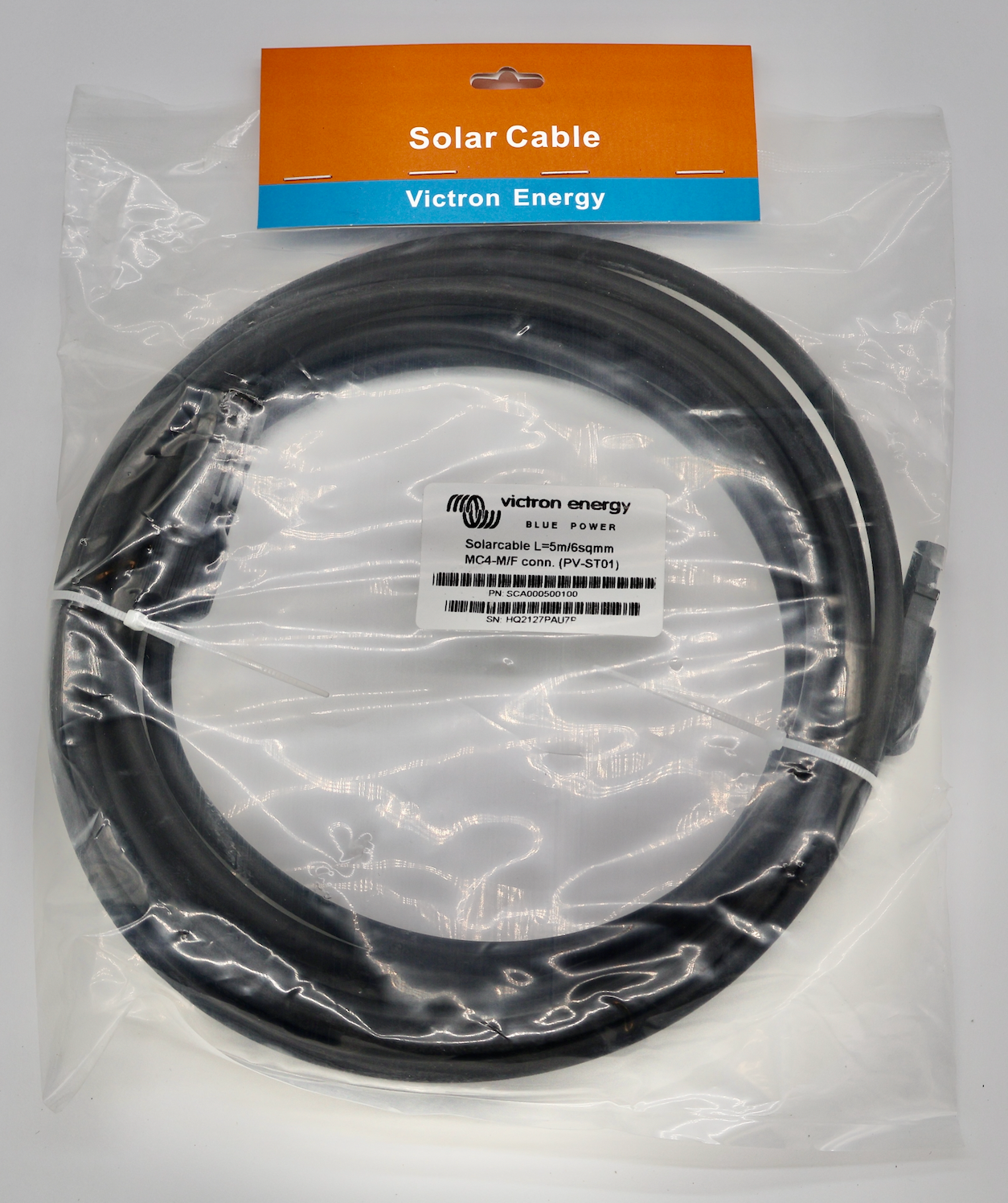

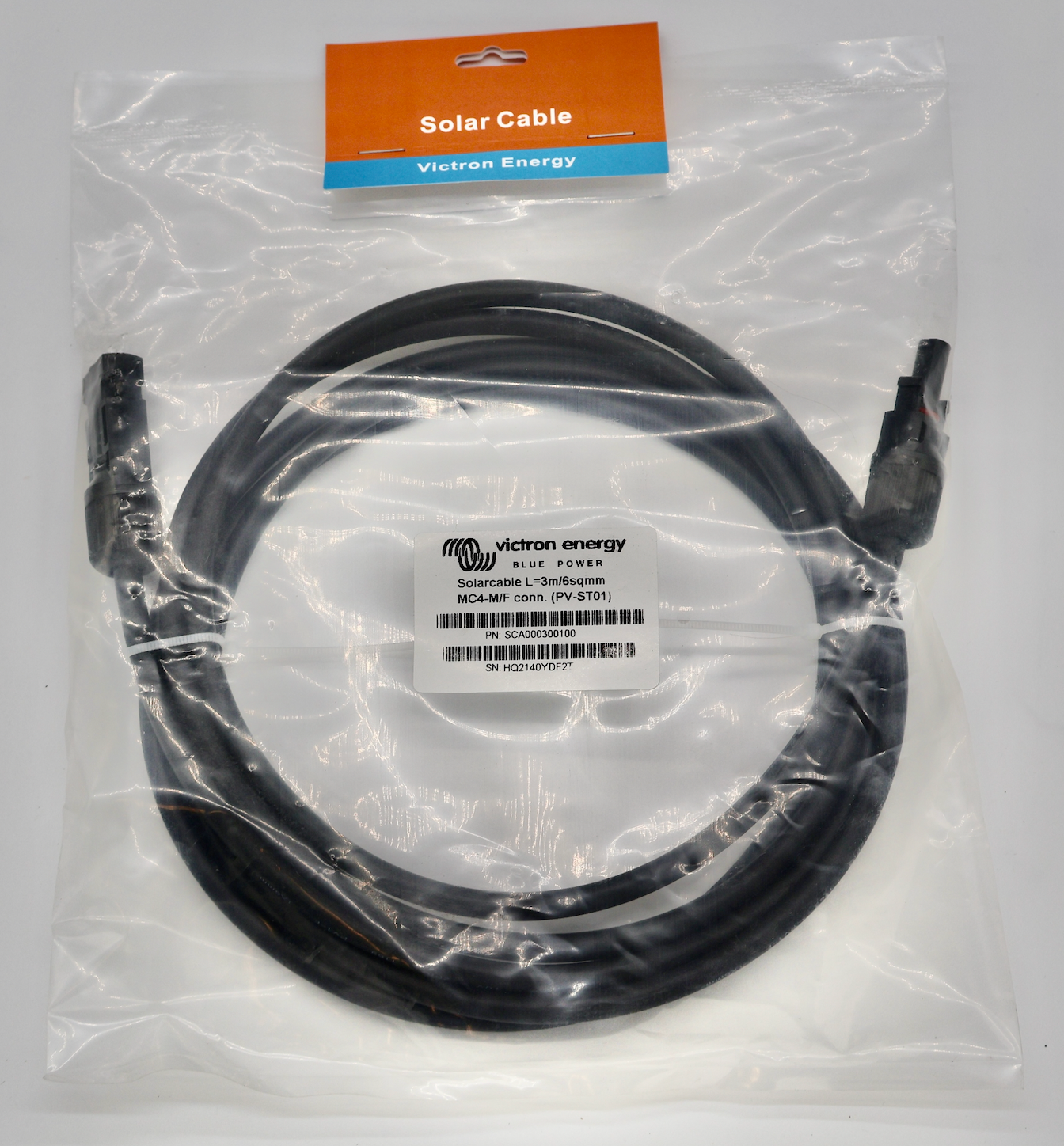

Pre-terminated MC4 solar cable for wiring panels to your Victron MPPT. Each cable is a length of tinned-copper, UV-resistant PV wire with a factory-fitted male MC4 connector on one end and a female MC4 connector on the other (Victron PV-ST01) - so panels click together and run cleanly back to the charge controller with weatherproof, IP68 connections.
- Available in 4 mm2 (approx. AWG 11) and 6 mm2 (approx. AWG 9) - choose 6 mm2 for longer runs or higher array currents to keep voltage drop low.
- Lengths from 1 m to 20 m, each with one male and one female MC4 connector for daisy-chaining panels and reaching the MPPT.
- Tinned-copper conductor with a UV-resistant, double-insulated jacket rated for outdoor and marine exposure.
- Genuine MC4-compatible PV-ST01 connectors - IP68, water-tight, with a secure locking fit.
- Pair two cables (or add MC4-Y splitters) to wire panel strings in series or parallel.
Pairs with: Victron SmartSolar and BlueSolar MPPT charge controllers, MC4-Y splitters for parallel strings, and the MPPT WireBox for terminal protection.
Why buy from Blue Marine
- True Blue Victron Energy Distributor - genuine Victron parts, in stock.
- Free shipping over $49 from our Seattle warehouse.
- Certified technicians on the phone - (800) 628-6306 for sizing and compatibility help.
- 60-day hassle-free returns and local pickup in Seattle, WA.
