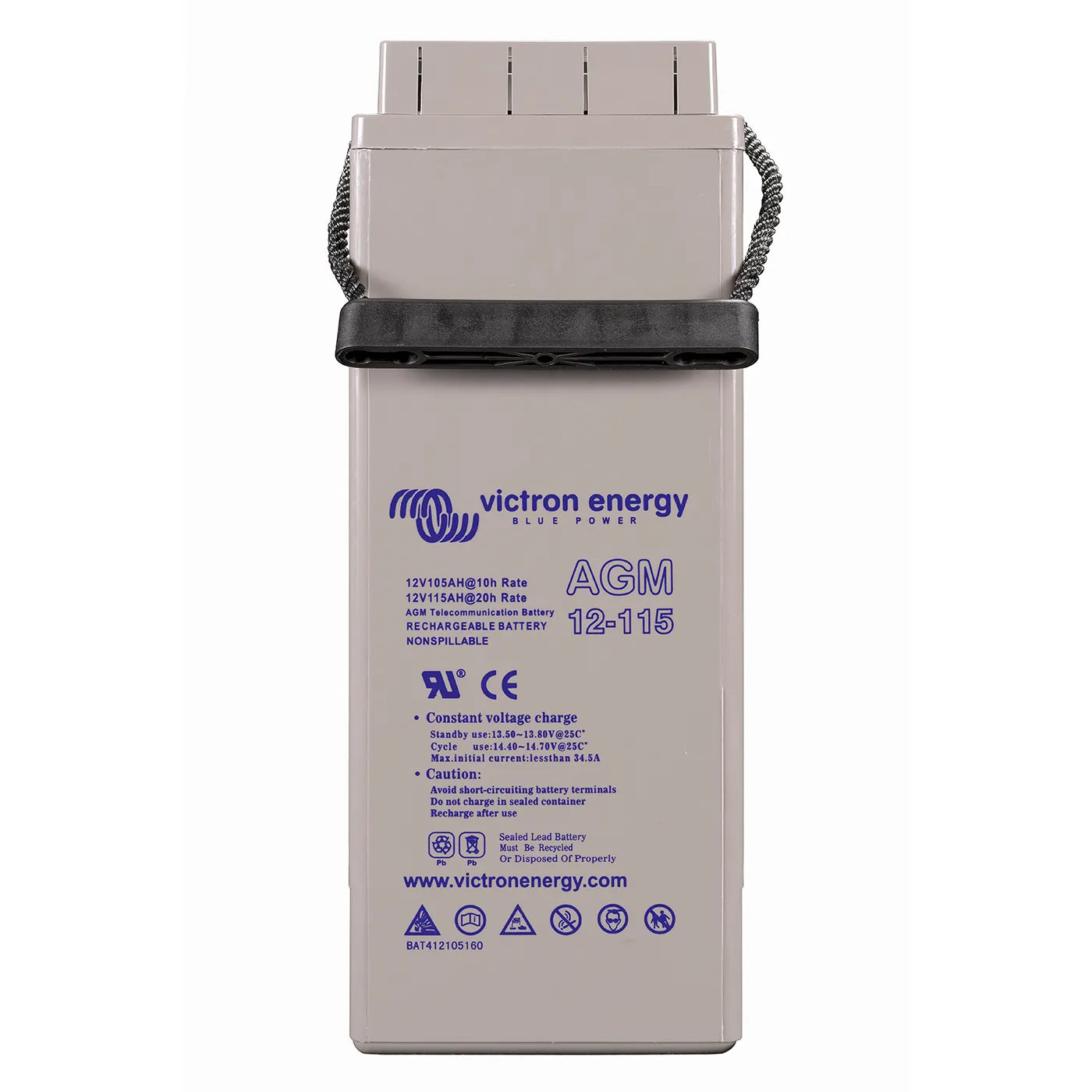

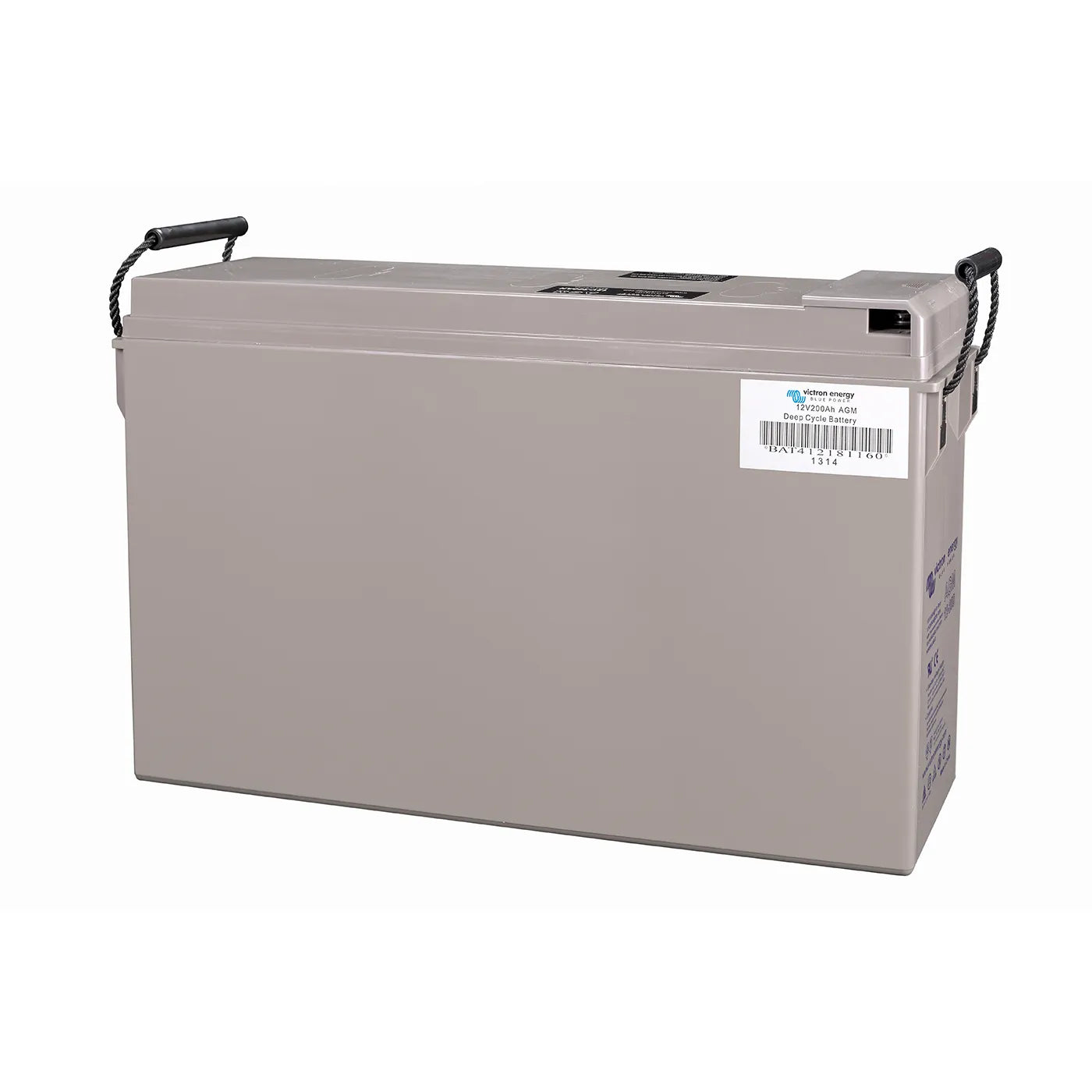

Victron Energy AGM Telecom Batteries (VRLA, Front-Access)

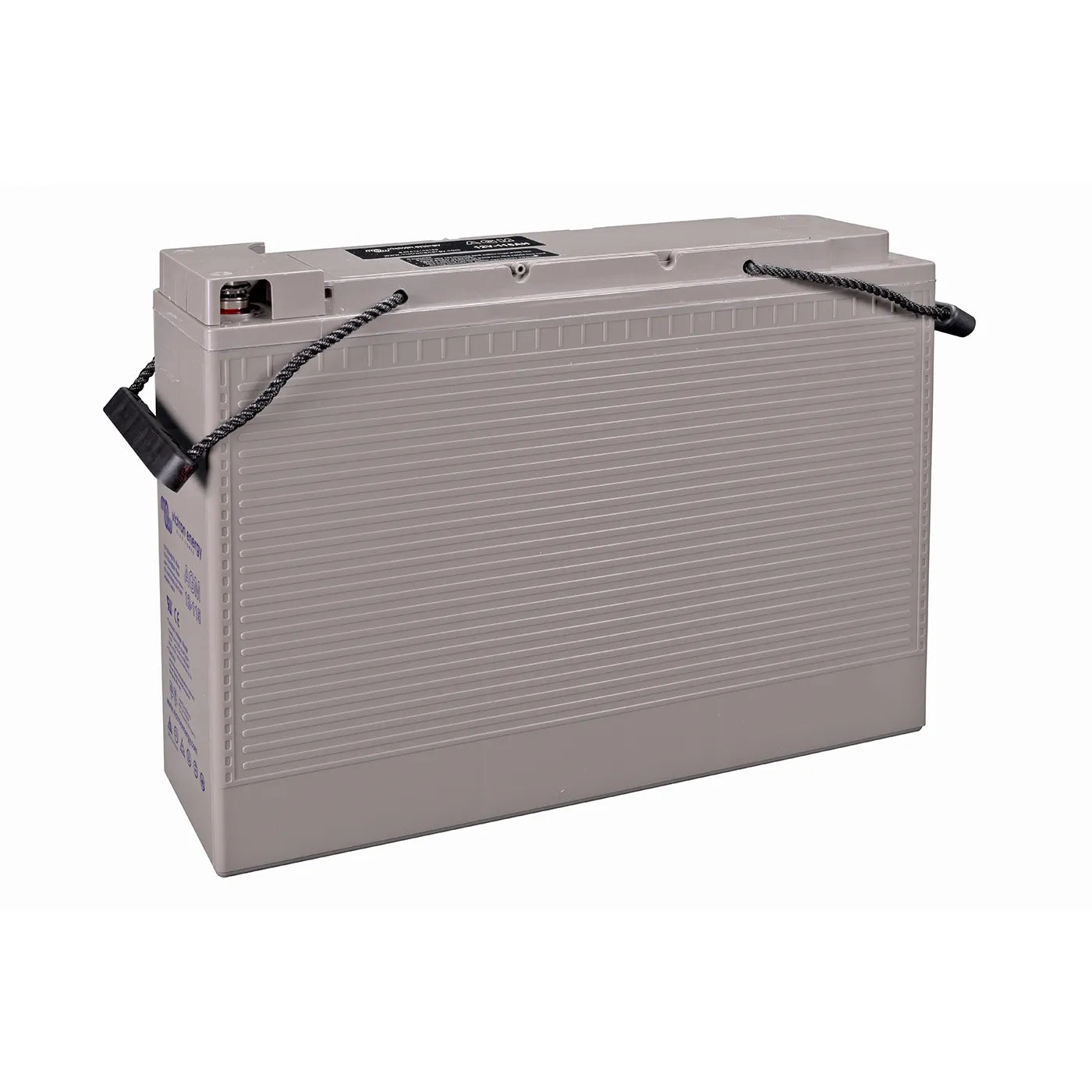

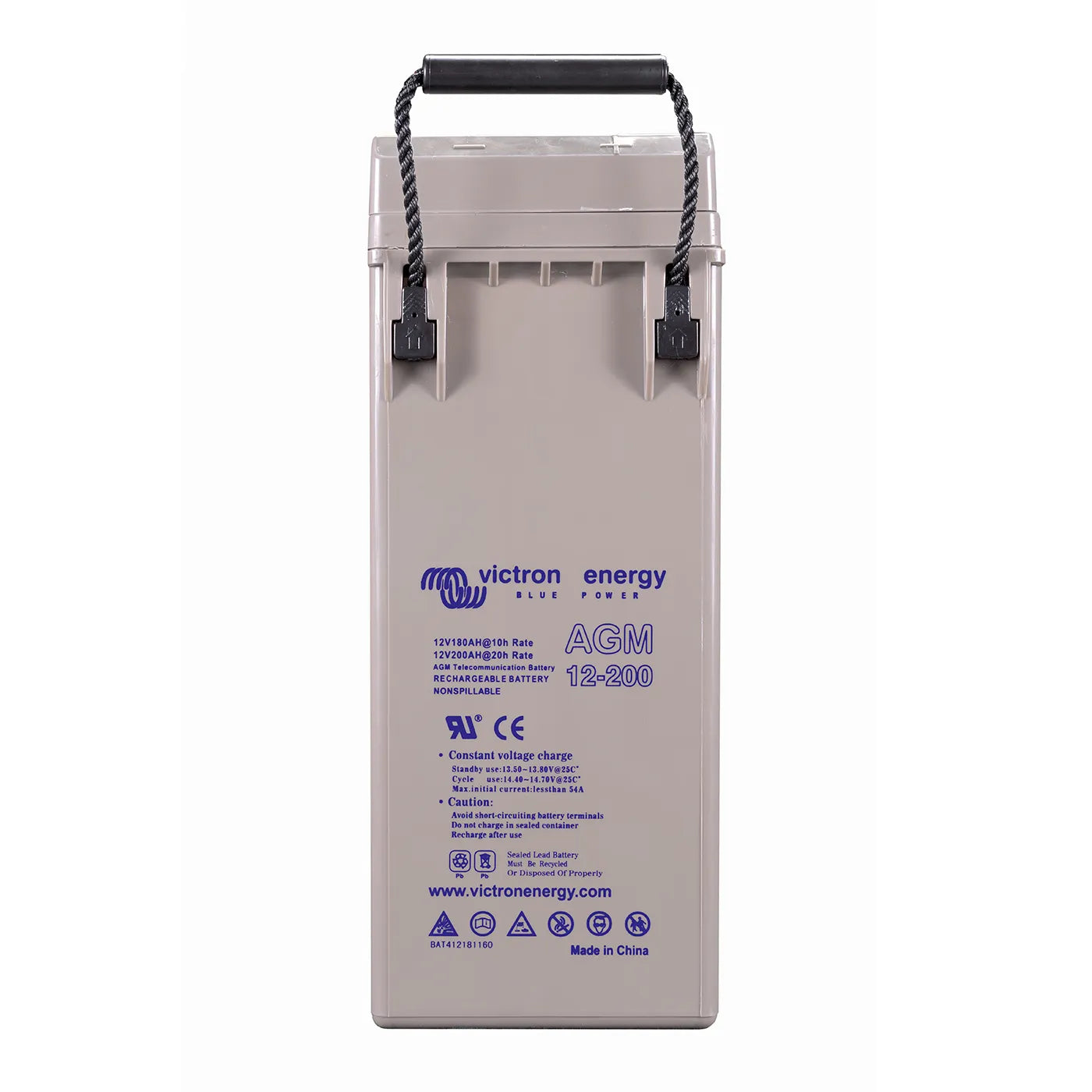

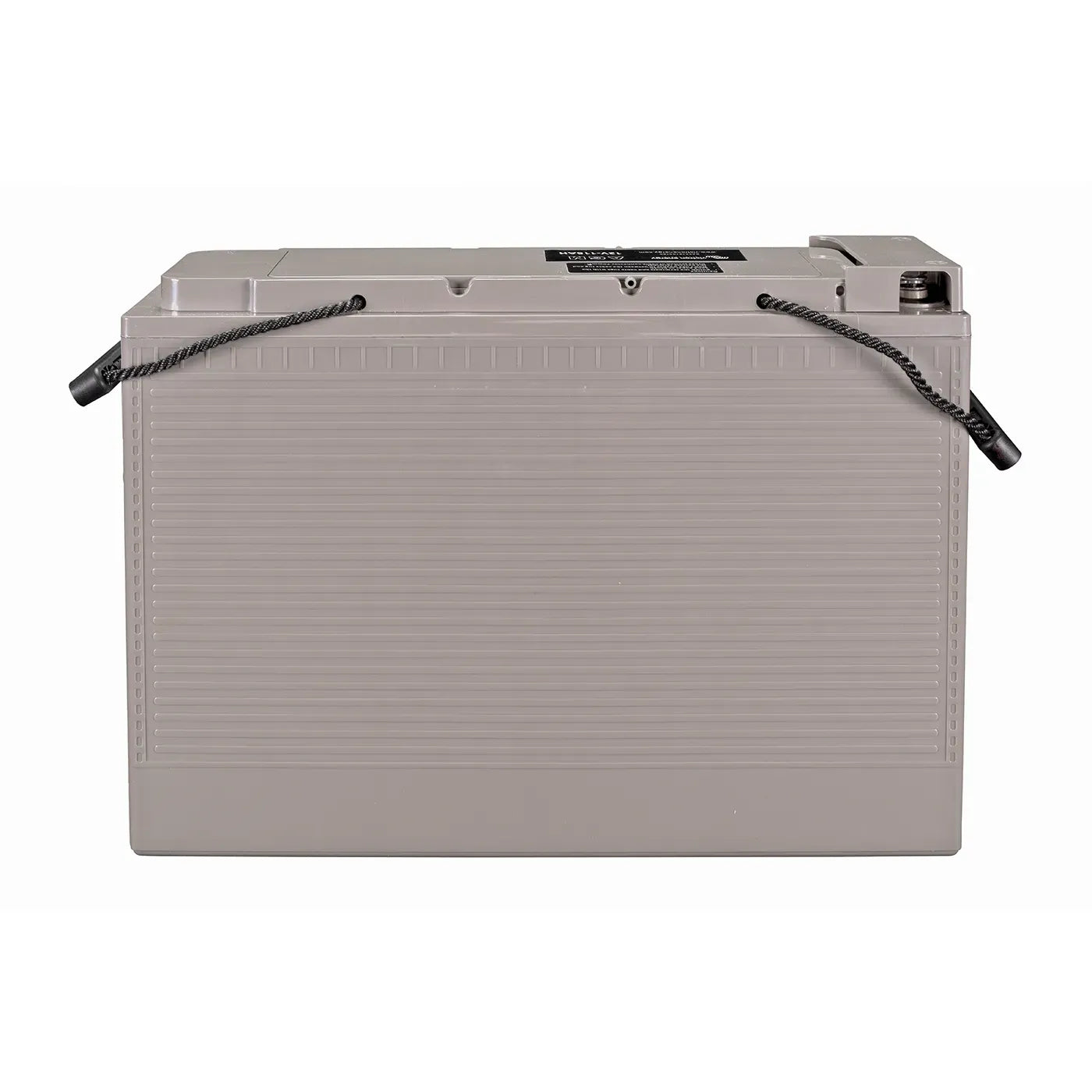

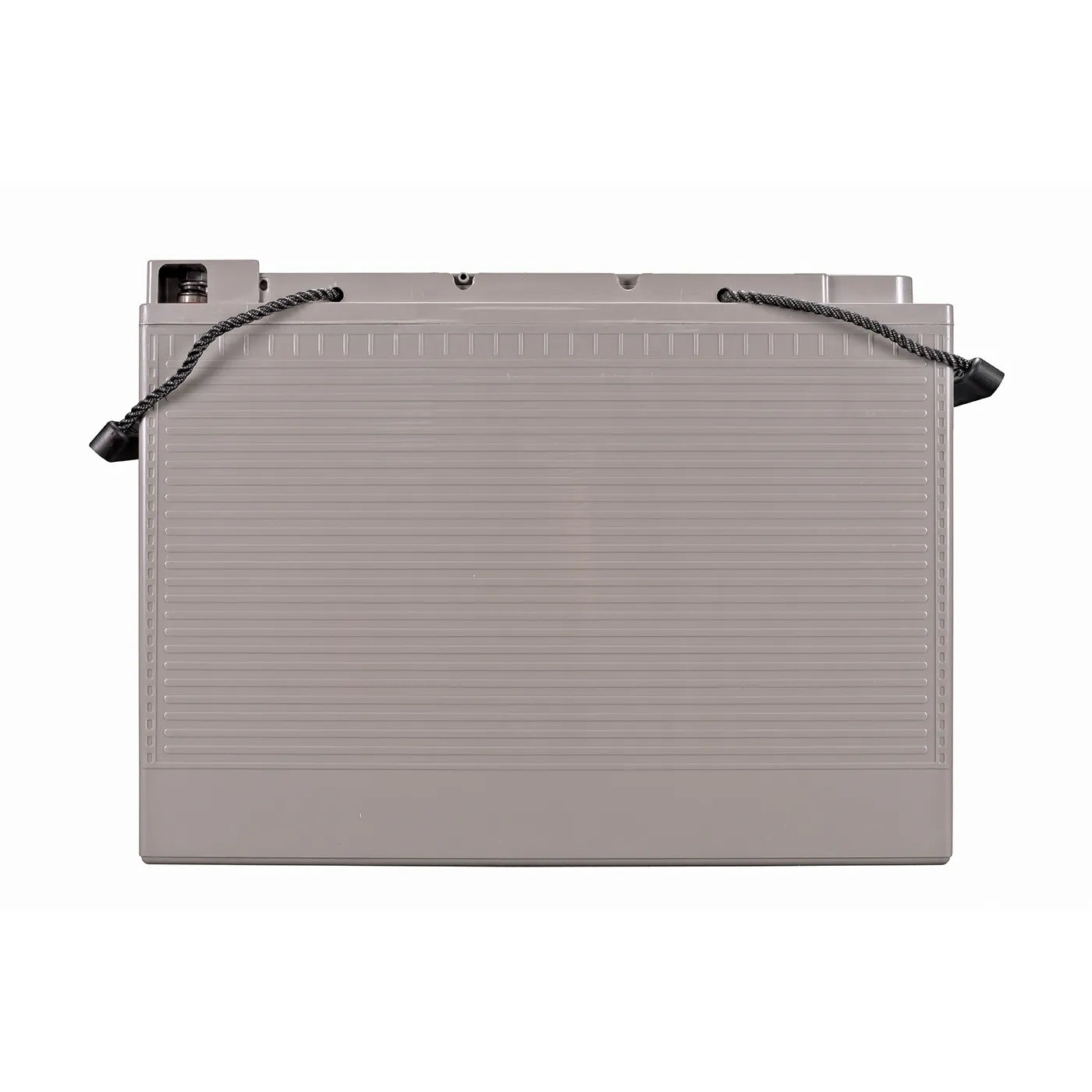

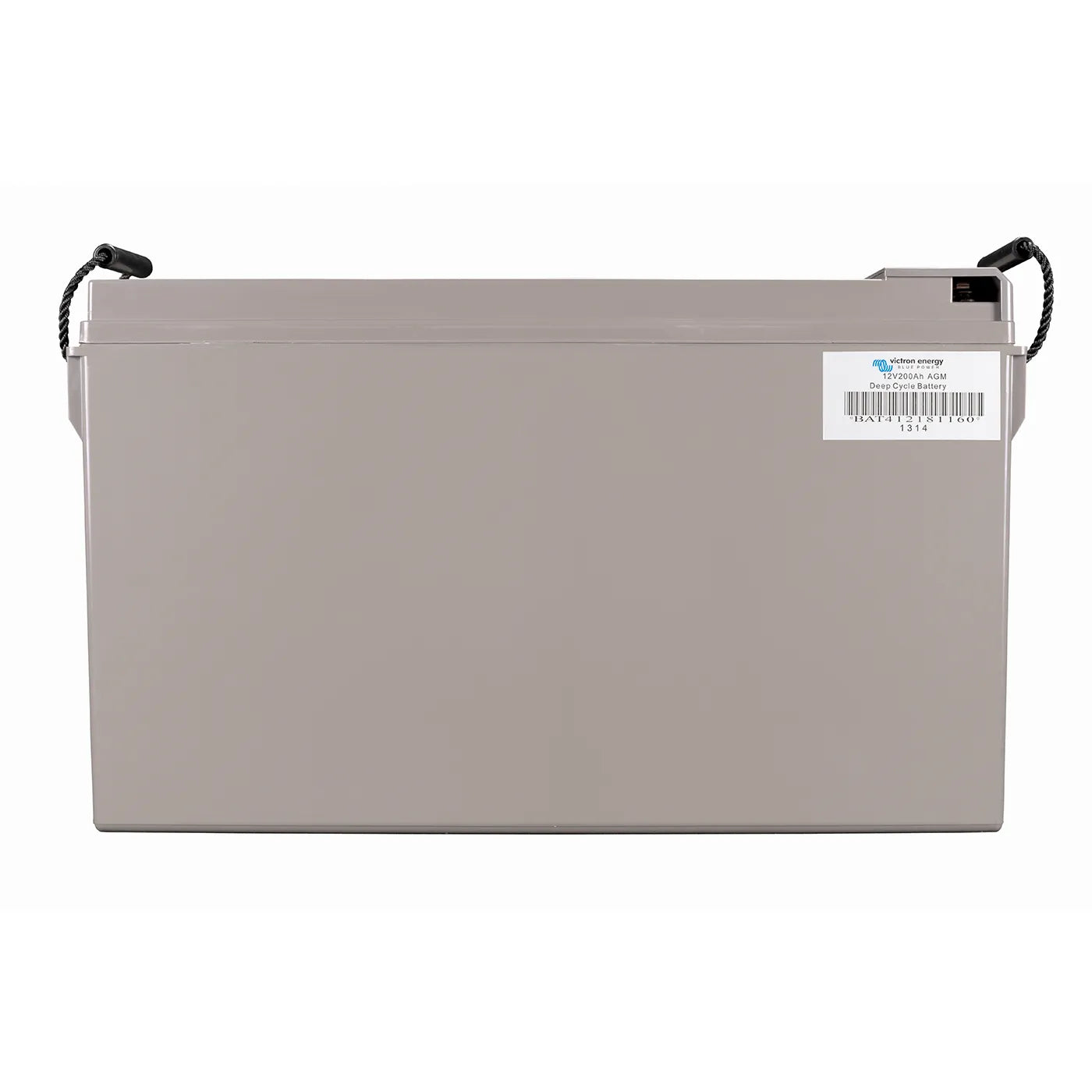

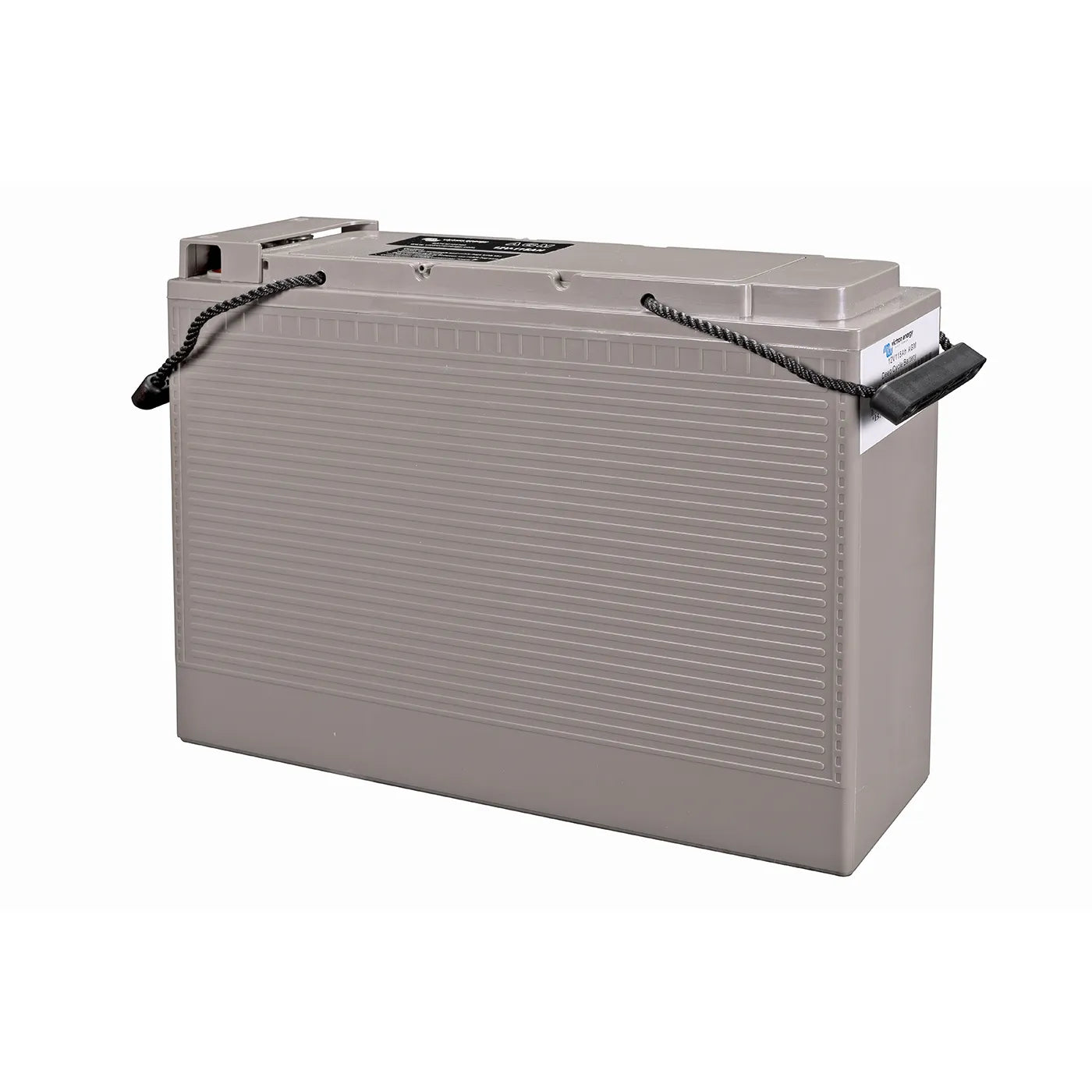

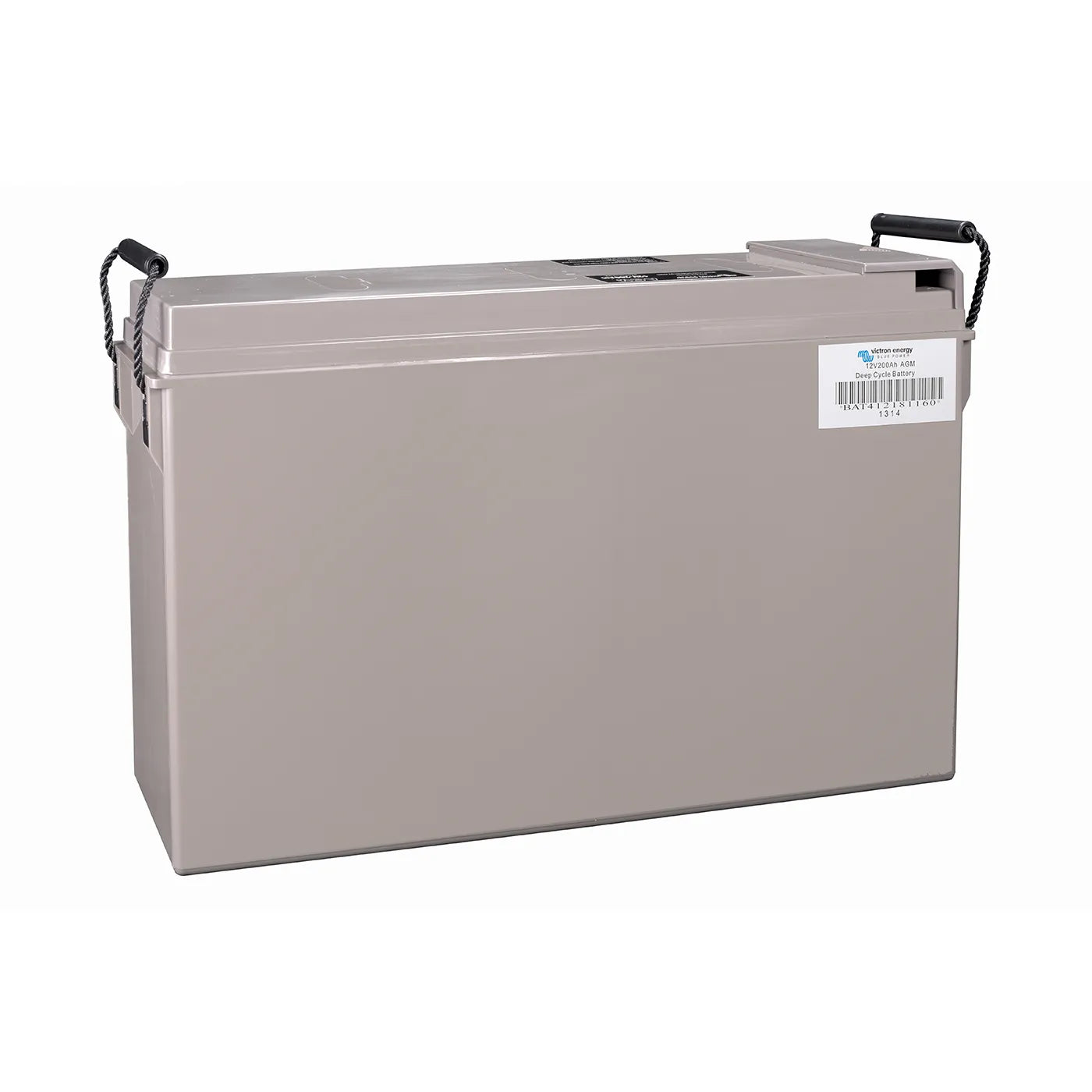

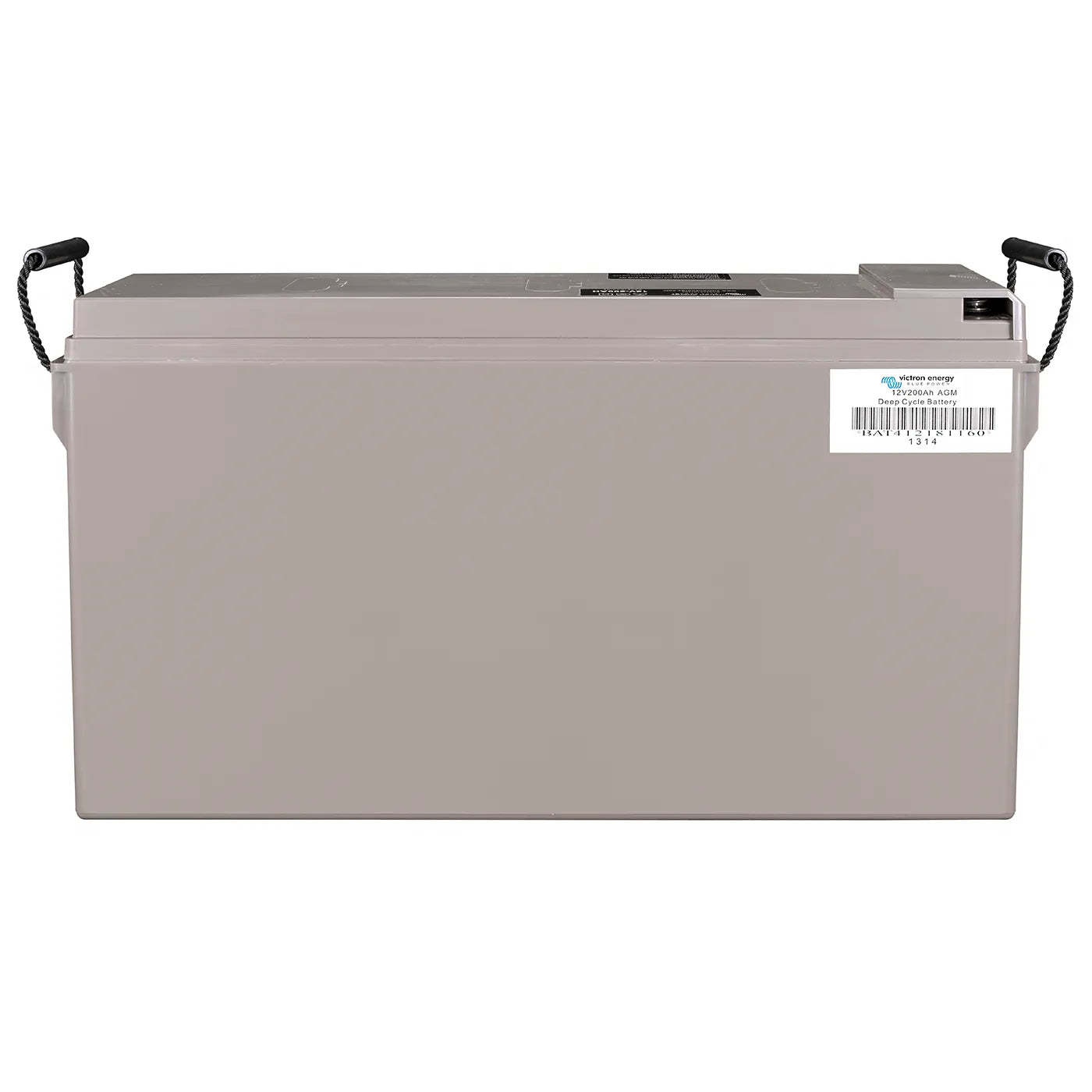

The Victron AGM Telecom battery is a heavy-duty, deep-cycle AGM with front-access terminals and a tall, narrow footprint. Designed for telecom racks, that same shape makes it an excellent space-saver in tight marine and vehicle installs - it slides into narrow lockers and stands where a standard wide battery won't fit, with the terminals reachable from the front. Sealed, maintenance-free, and a true drop-in (no BMS).

Who it's built for

• Tight-space marine and RV installs - the narrow case and front-access terminals fit lockers and racks where a conventional battery can't go.
• Telecom and backup power - the application it was designed for: rack-mounted standby power with a 12-year float design life.
• High-current loads - low internal resistance and very high cranking and short-circuit current suit demanding starting and inverter loads.

Why the Telecom AGM

Front-access terminals, narrow footprint

Terminals are on the front face and the case is tall and slim, so the battery racks neatly and is easy to service in a confined space - a genuine floor-space saver on board.

Very high current capability

Low internal resistance gives strong charge and discharge performance, with cold-cranking amps up to 1,800 A and short-circuit current up to 6,000 A on the 200 Ah.

Long float and cycle life

12-year float design life at 20 C, plus a solid cycle life (over 500 cycles at 50% DoD) for standby and moderate cycling use.

Sealed and maintenance-free

VRLA AGM construction with low self-discharge (under 2% per month at 20 C) - no watering, no routine maintenance.

Available variants

All variants are sold on this page - choose your capacity from the variant selector above.

Tight on space and not sure what will fit? Get a custom quote from our Seattle team or book a system consultation - we'll help you fit the bank to the space.

Cycle and service life

• Cycle design life: 500 cycles at 80% DoD, 750 at 50% DoD, 1,800 at 30% DoD
• Float design life: 12 years at 20 C
• Shelf life: 1 year at 20 C without recharge

Charging

• Charge with a Victron charger or MPPT set to the AGM profile.
• Absorption 14.4-14.7 V; float 13.6-13.8 V; storage 13.2 V (at 20 C).
• Temperature compensation -24 mV/°C for a 12V battery; required below 10 C or above 30 C for long periods.

Full technical specifications

• Technology: sealed VRLA, AGM, front-access terminals (M8)
• Capacity vs rate: 60 / 75 / 82 / 91 / 100% of nominal at the 1 / 3 / 5 / 10 / 20-hour rates (25 C, to 10.5 V)
• Short-circuit current: 3,500 A (115Ah) / 6,000 A (200Ah)
• Self-discharge: under 2% per month at 20 C
• Maintenance: maintenance-free for life
• Mounting: front-access terminals; install per the manual

Recommended accessories

• Victron Blue Smart chargers - with a built-in AGM profile
• SmartSolar MPPT charge controllers - for solar charging
• BMV-712 Smart or SmartShunt - accurate state-of-charge monitoring

Installation and sizing help

Need to confirm a battery will fit a tight locker, or size a bank? Our certified technicians do system consultations and full custom quotes. Email support@bluemarine.com or call (800) 628-6306.

Frequently asked questions

Why would I use a telecom battery on a boat or RV?

The front-access terminals and tall, narrow case fit spaces a standard wide battery can't - and you can reach the terminals without pulling the battery out. They're a popular choice when locker space is tight.

Does it need a BMS?

No. It's a drop-in lead-acid battery - just charge it with the correct AGM profile.

Can it handle high starting loads?

Yes. Low internal resistance and high cold-cranking and short-circuit current make it well suited to engine starting and large inverter surge loads.

What warranty does it come with?

A 2-year worldwide limited warranty from Victron Energy. Blue Marine handles the warranty claim process for you. Email support@bluemarine.com.
