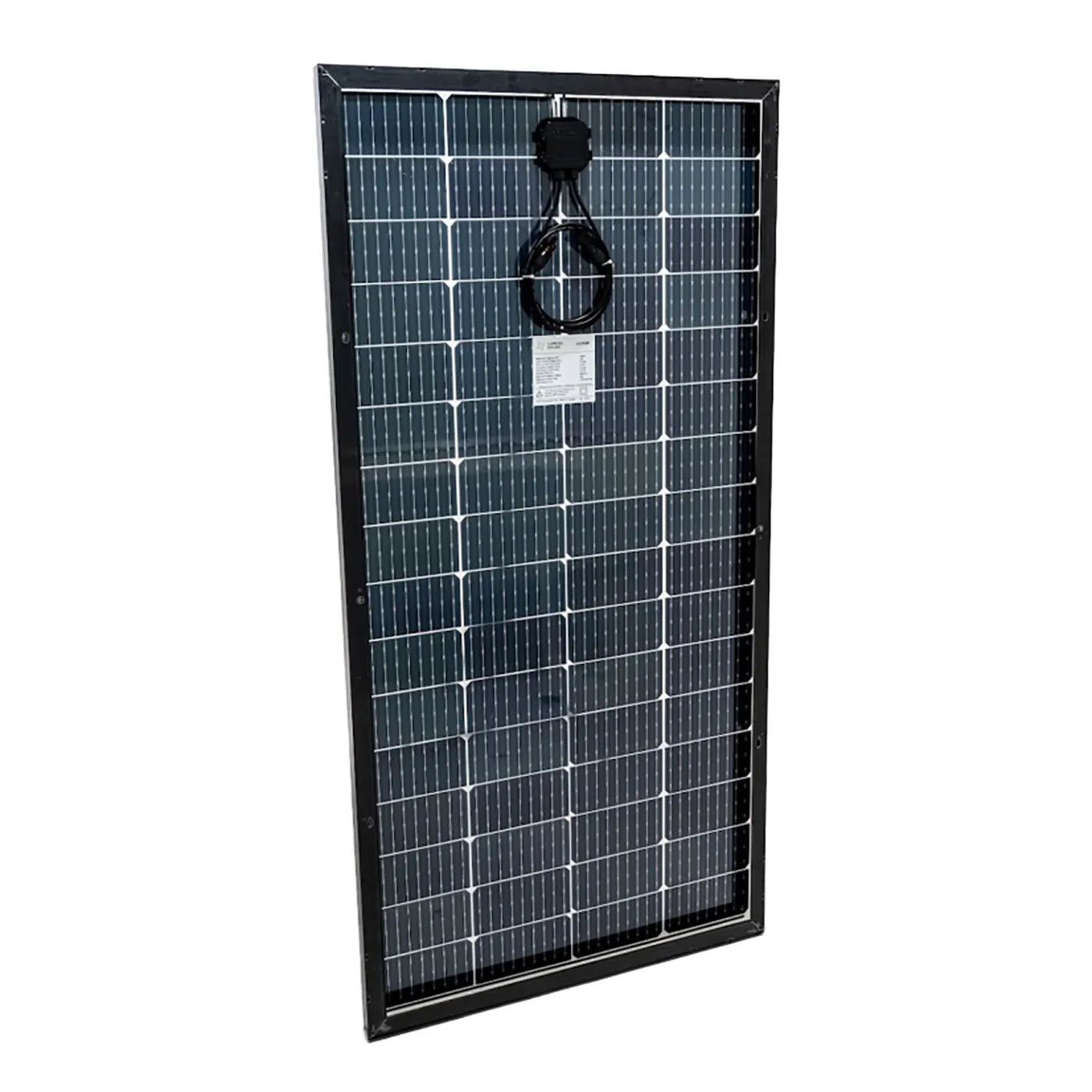

Lumera 220W Bifacial Solar Panel

Canadian‑Made, High‑Yield Solar Panel for Boats, RVs & Off‑Grid Setups

Overview

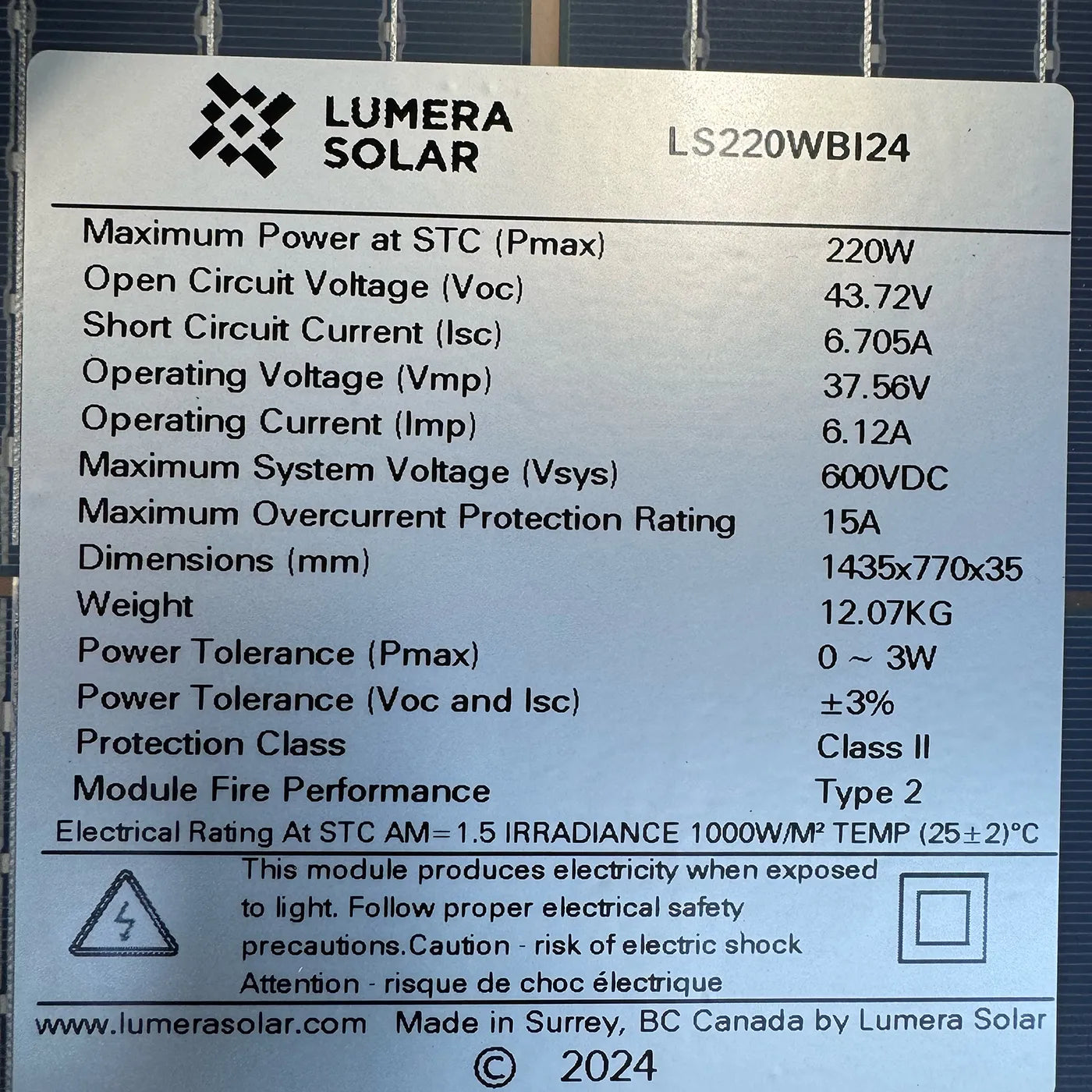

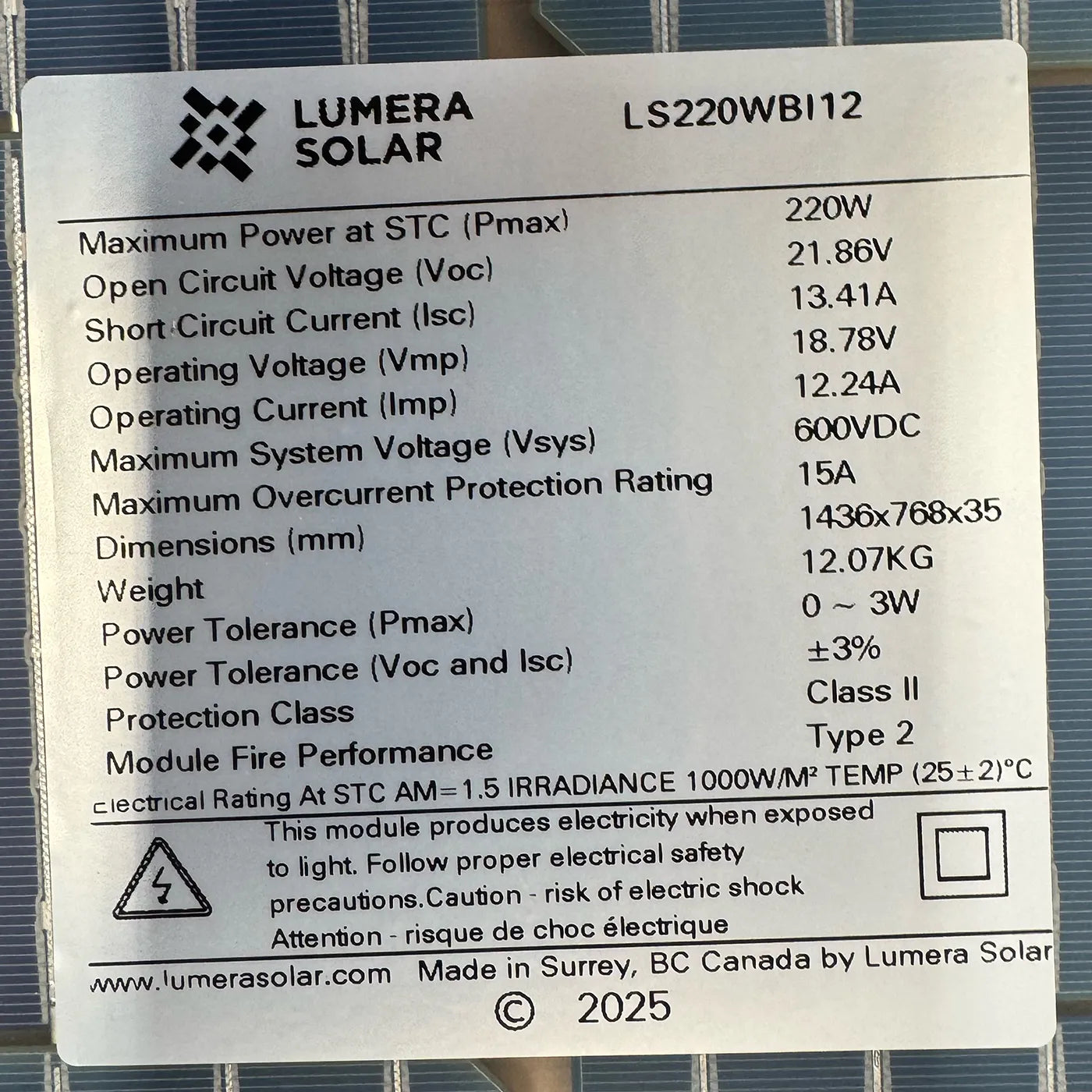

The Lumera 220W Bifacial Solar Panel is a sleek, high-performance solution for mobile and off-grid installations. Made in Western Canada, this panel features bifacial PERC cells that harvest sunlight from both sides—up to 30% more energy gain in reflective environments. It’s designed to endure harsh marine and RV conditions while delivering superior efficiency and reliability. Choose the 12V configuration for shorter, standard 12V/24V bank wiring or the 24V configuration for higher-voltage, longer-run installations—both feed any 12V or 24V battery bank through an MPPT charge controller.

Planning your system? Our Solar & MPPT sizing calculator helps you match this panel's wattage and configuration to the right charge controller.

Key Features

• Bifacial PERC monocrystalline cells for enhanced energy capture

• Durable, low-profile design with anodized aluminum frame and tempered glass

• MC4 connectors with long leads for easy hook-up

• Manufactured in British Columbia with stringent quality control

• Industry-leading warranty: up to 25 years output, including stretch performance guarantees

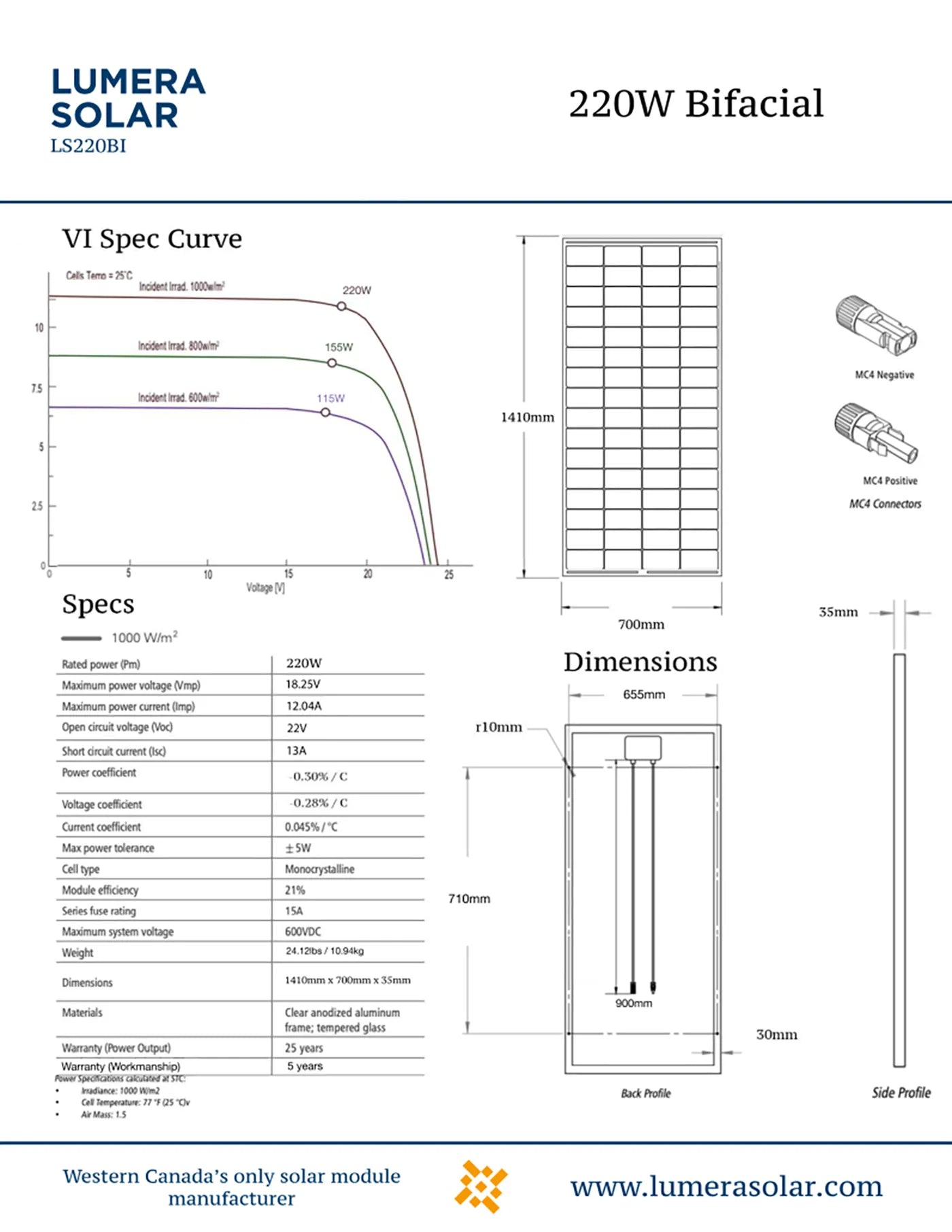

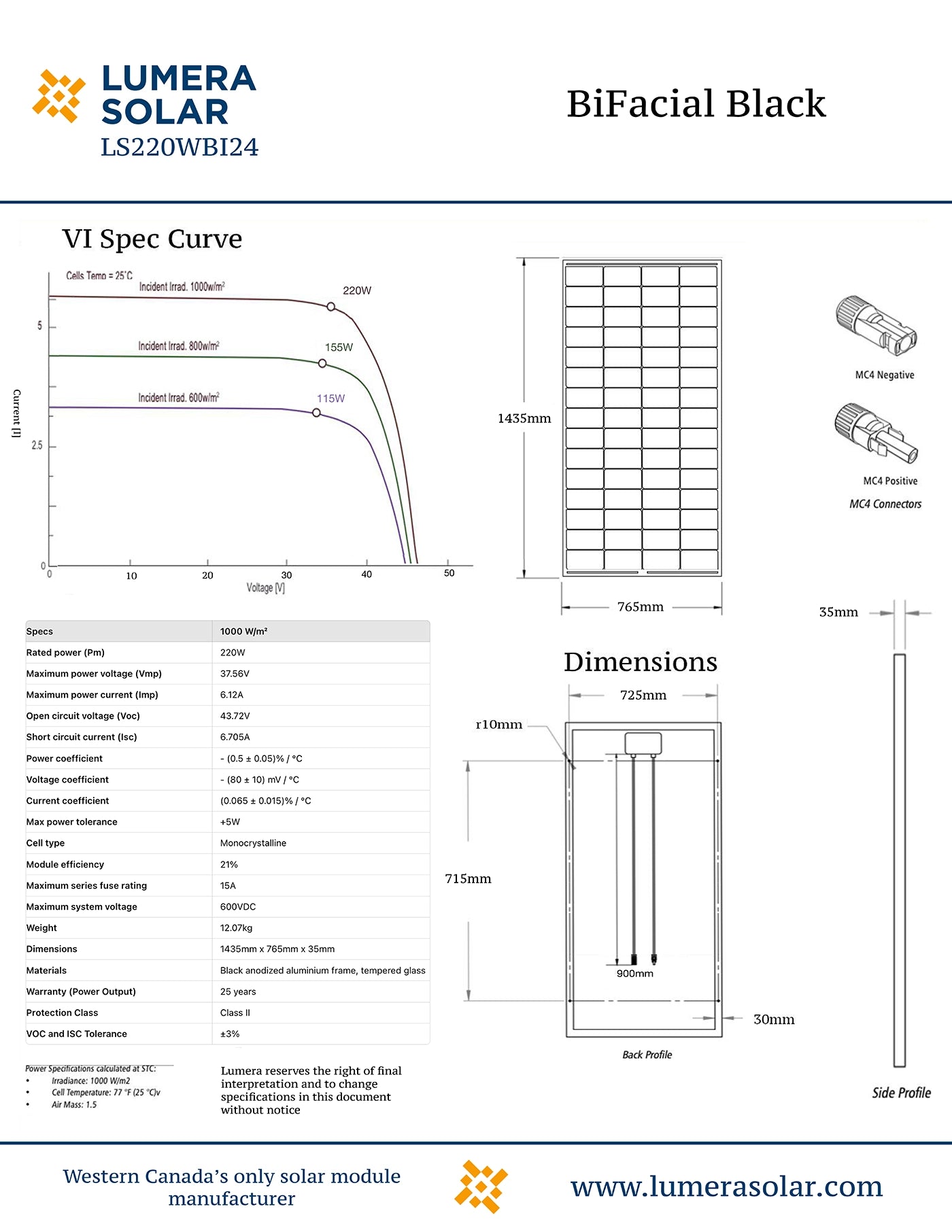

Specifications

Why Choose the Lumera 220W?

• Maximized Output in Compact Areas: The bifacial design captures reflected light—ideal for installations on water, RVs, and light-colored surfaces.

• Exceptional Build Quality: Built to withstand salt spray, vibration, and UV exposure—perfect for marine and mobile environments.

• Reliable Performance Guarantees: Generous output warranty tiers offer peace of mind for long-term use.

• Simple Installation: Equipped with MC4 connectors and standardized mounting dimensions for hassle-free setup.

Ideal Applications:

• Sailboats, tenders, yacht decks

• RV and camper van rooftops

• Off-grid cabins, yurts, tiny homes

• Battery pre-charging for e-dinghies, trailers, and remote power systems

Installation Tips:

• Pair with a Victron MPPT SmartSolar or BlueSolar charge controller for maximum energy efficiency.

• Install over reflective surfaces or water to take full advantage of bifacial boost.

• Use Z‑bracket mounts, tilting bases, or vibration-resistant coatings for secure mounting.

Warranty
Lumera 25-year limited performance warranty: at least 95% of rated output through year 5, 90% through year 10, and 80% through year 25, plus a 5-year workmanship warranty against defects in materials and construction.

Summary
The Lumera 220W Bifacial Solar Panel combines Canadian craftsmanship and advanced cell technology to deliver reliable, high-yield solar power in a compact, durable form. It’s the ideal choice for off-grid and marine-focused systems where space and performance are at a premium.

Blue Marine is an authorized Lumera Solar dealer — ships brand-new with Lumera’s 25-year performance warranty and 5-year workmanship coverage, free shipping, and local pickup available.
