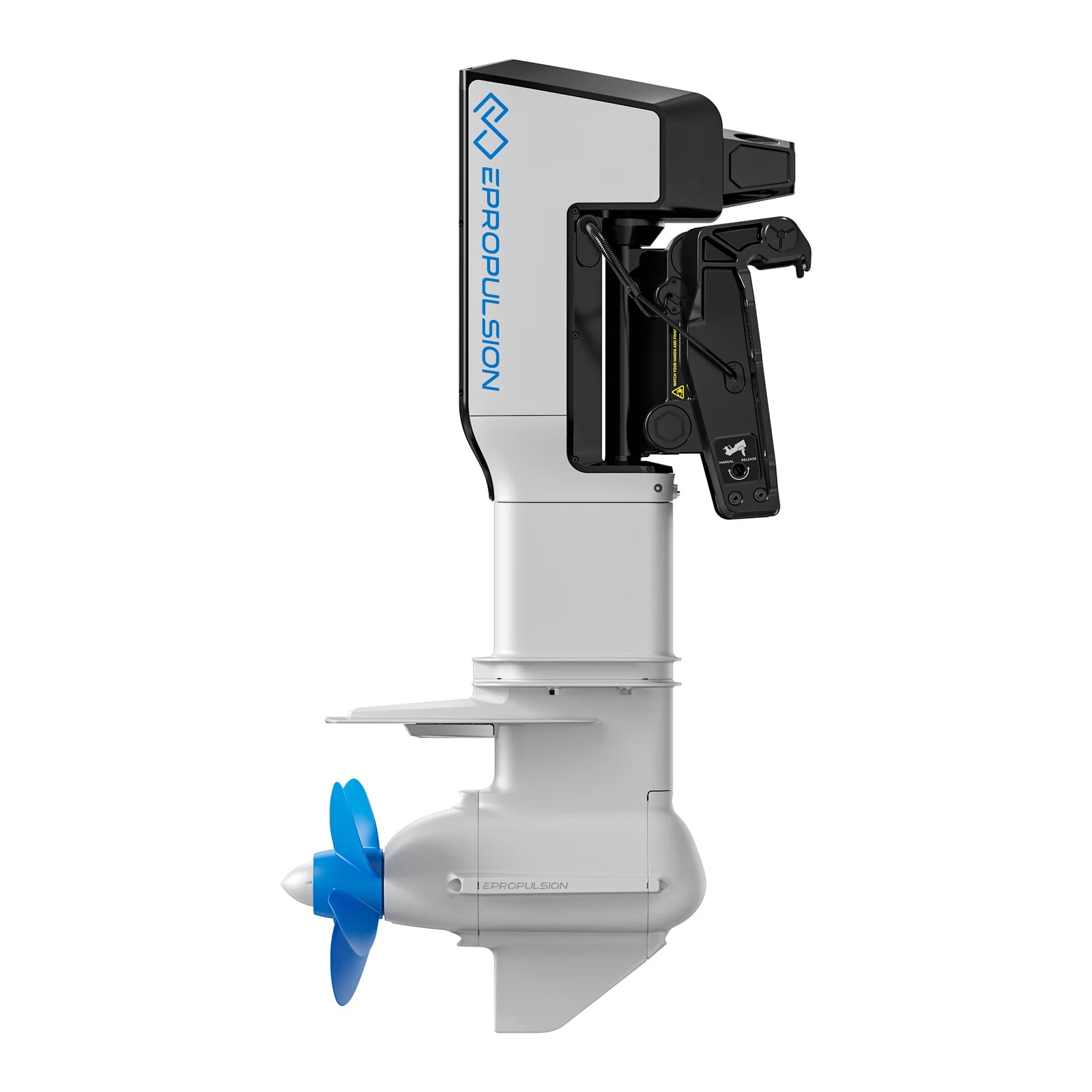

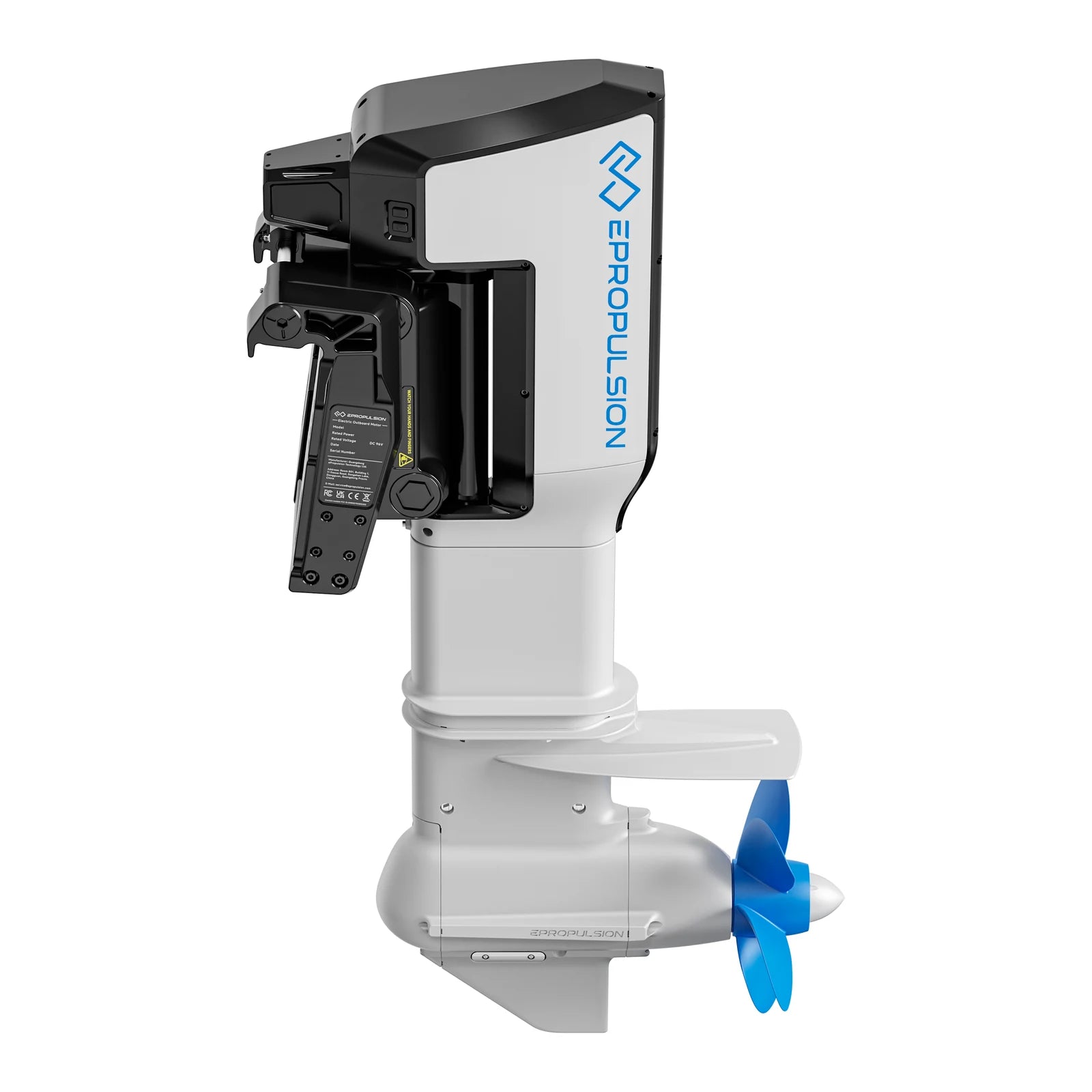

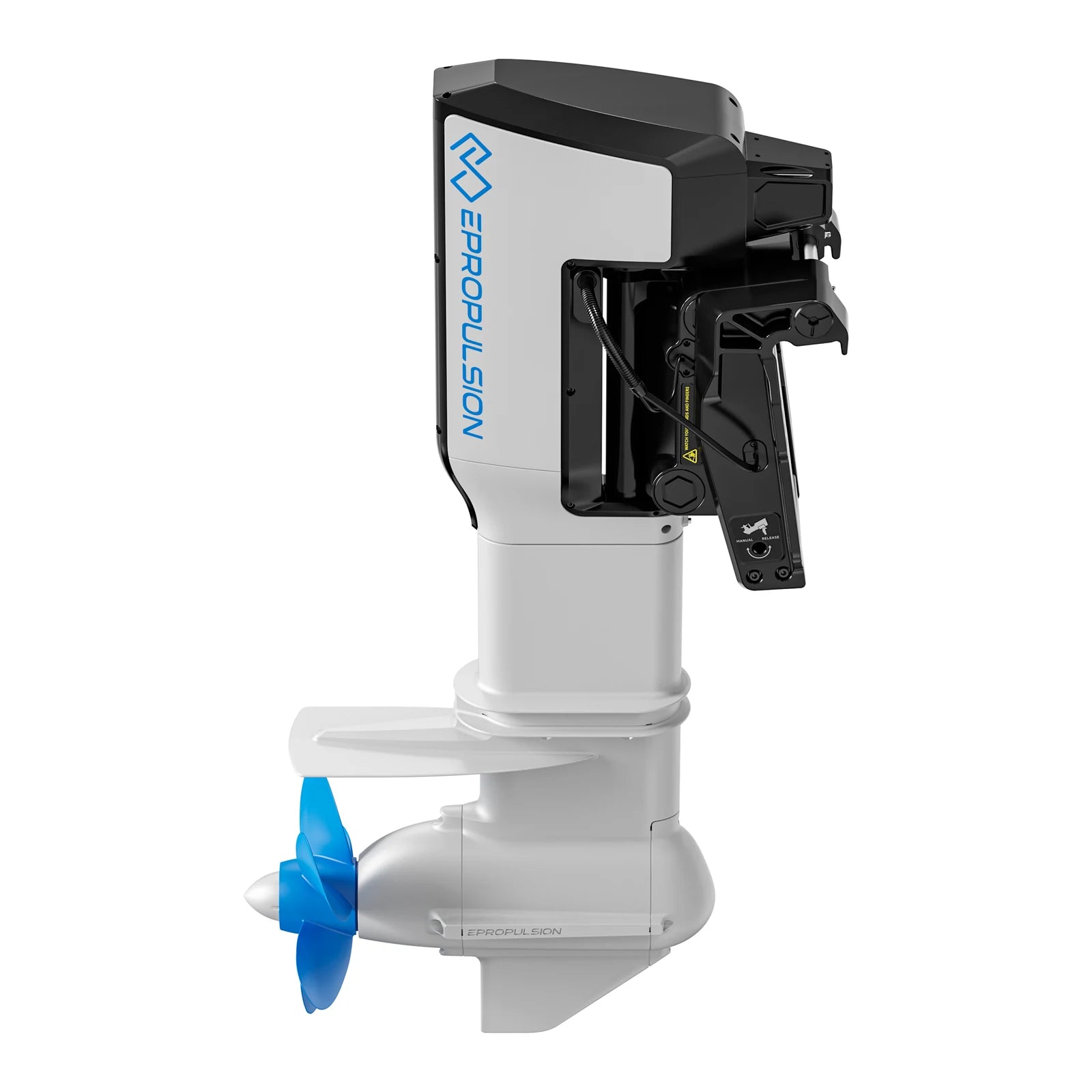

ePropulsion X20 Electric Outboard Motor (20 kW, 96V eSSA)

ePropulsion X20 — 20 kW, 96V Electric Outboard

The X20 steps ePropulsion's next-generation X-Series up to 20 kW — clean, quiet power for larger RIBs, day boats, and small cruisers. Like the rest of the range it integrates electric steering, power trim & tilt, and hydrogeneration into one plug-and-play unit, driven by a unified smart throttle and display.

Why the X-Series

• Compact & fully integrated — roughly 60% less space than a comparable combustion engine.
• Light — 174 lb (Long shaft) / 179 lb (XL shaft), far lighter than combustion and most electric inboards.
• Hydrogeneration — recovers energy from water flow while sailing or drifting.
• Integrated electric steering (±45°) and power trim/tilt (−4° to 61°).
• Plug-and-play wiring with keyed eSSA connectors.
• Connected — cloud Connectivity Service and ADAS Level-1 assisted driving, no extra hardware.

One connected system — eSSA

The X20 runs on ePropulsion's eSSA architecture. Complete the system with a 96V G-Series battery (G102-100 or G102-230), a G-Series charger or the 2 kW MPPT solar charge controller, and your choice of Smart control — Tiller, Throttle, Side-Mount, or a 5″ / 10″ Display. Our advisors will size battery, charging, and controls with you.

You also need a 12V battery. Beyond the 96V propulsion pack, the X-Series uses a separate 12V supply for its controls, display, trim/tilt, steering, and electronics. An included 96V→12V DC-DC converter (500W) keeps it charged from the propulsion pack. The 12V battery is not included and should provide at least 120 Ah / 120 A continuous — we'll spec it with the rest of your system.

Specifications

Choosing your shaft length

The Long shaft (20 in) suits most transoms; choose the XL (25 in) for taller transoms or where extra immersion helps. The right mounting height avoids cavitation (too high) and drag (too low) — when in doubt, we'll confirm it with you.

What's in the box

• X20 motor with pre-connected internal wiring
• Bus Box 250A
• 96V→12V DC-DC converter, 5 m 12V power cable, and 12V fuse
• eSSA Communication 3-way and 5-way T connectors
• eSSA Communication Cable 1m and Extension Cable 10m
• eSSA Communication Terminators (120Ω and 360Ω)
• G Battery Output Cable Kit 5m (positive & negative)

To complete the system you'll add a 96V G-Series battery, a 12V battery (≥120 Ah/120 A), a charger, and your chosen control/display.

Applications

Larger RIBs, day boats, center consoles, and small cruisers moving to electric power.

Warranty

Covered by ePropulsion's 24-month limited warranty (from delivery to the first end customer) against defects in materials and workmanship under normal recreational use with proper installation and maintenance. Commercial or professional use is covered by your local statutory warranty instead. Blue Marine is an authorized ePropulsion dealer and will help with any claim.

Support

Professional installation is strongly recommended. Schedule an online consultation and our ABYC-certified advisors will size the propulsion battery, 12V supply, charging, and controls as one system.

Shaft options: Long (20 in, 174 lb) and XL (25 in, 179 lb).
