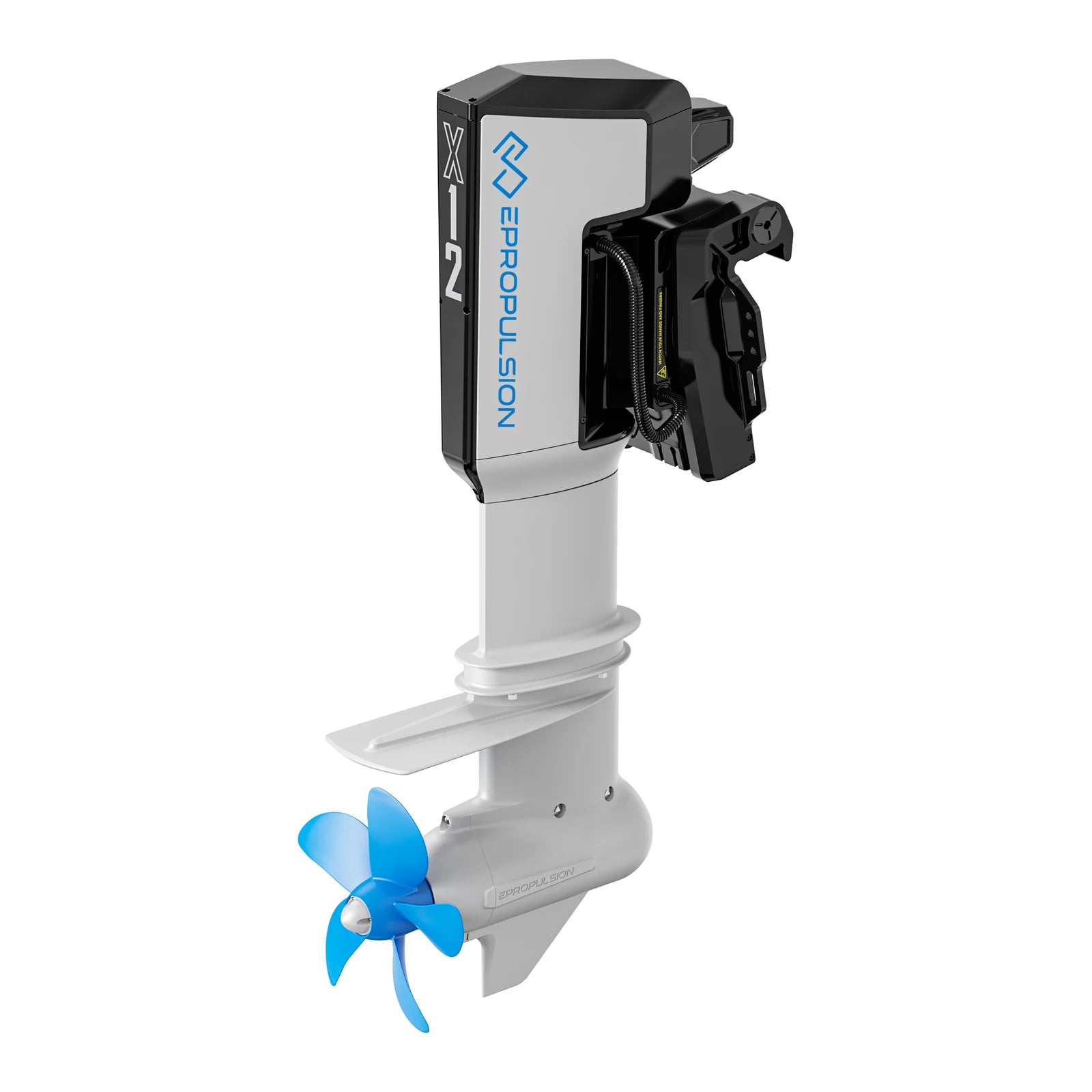

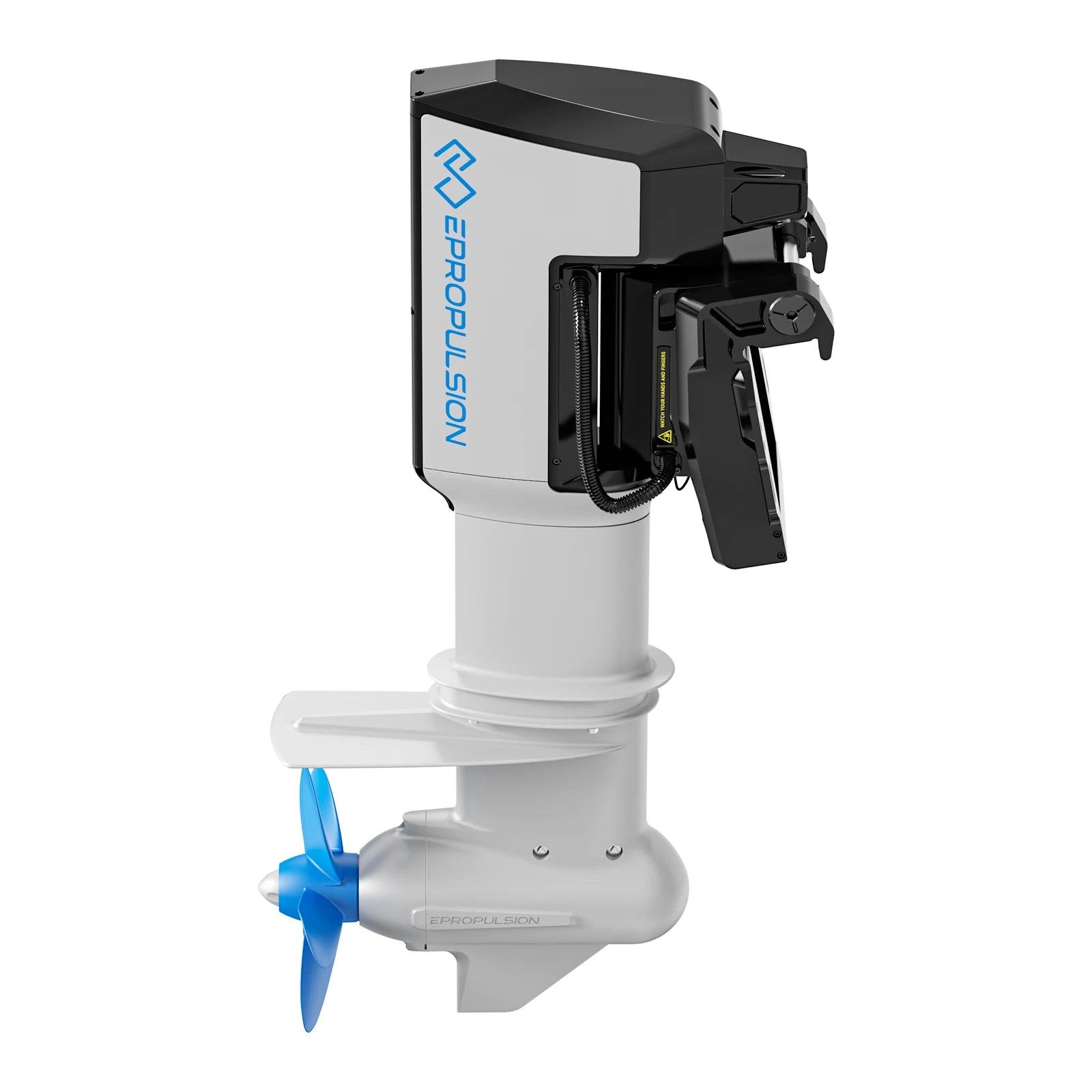

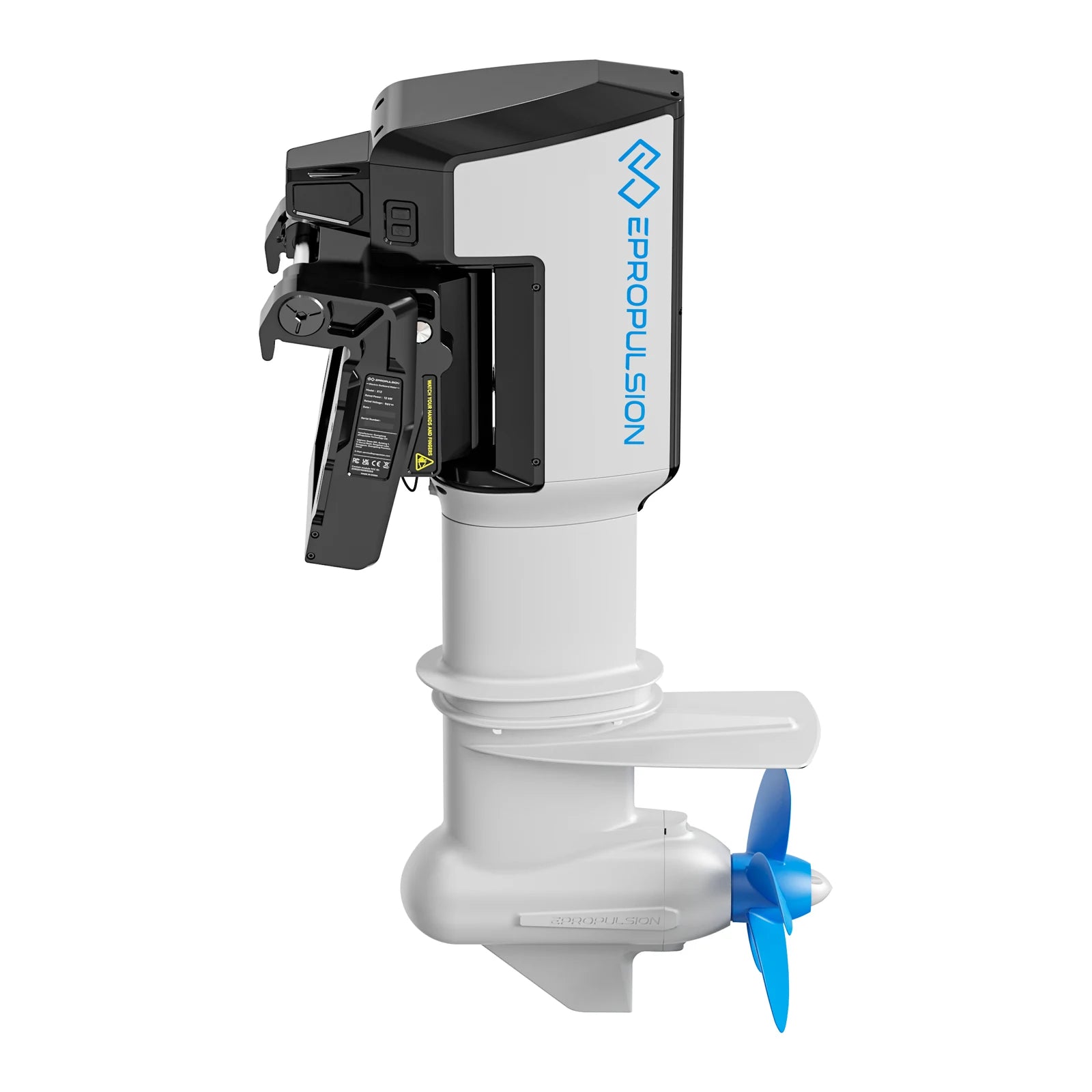

ePropulsion X12 Electric Outboard Motor (12 kW, 96V eSSA)

ePropulsion X12 — 12 kW, 96V Electric Outboard

The X12 is the entry point to ePropulsion's next-generation X-Series — a fully integrated 96-volt electric outboard that brings serious, clean power to RIBs, tenders, and small craft. It folds electric steering, power trim & tilt, and hydrogeneration into one tidy, plug-and-play unit, with a unified smart throttle and display for an effortless helm.

Why the X-Series

• Compact & fully integrated — roughly 60% less space than a comparable combustion engine, freeing up the transom and cockpit.
• Light — 106 lb (Short shaft) / 110 lb (Long shaft), far lighter than combustion and most electric inboards.
• Hydrogeneration — recovers energy from water flow while sailing or drifting to help recharge the battery.
• Integrated electric steering (±45°) and power trim/tilt (−4° to 61°).
• Plug-and-play — pre-connected internal wiring and keyed eSSA connectors make for a straightforward install.
• Connected — ePropulsion's cloud Connectivity Service and ADAS Level-1 assisted driving, with no extra hardware.
• Scales — supports up to four motors and twin helm stations for larger and multi-engine builds.

One connected system — eSSA

The X12 runs on ePropulsion's eSSA architecture. To complete a system, pair it with a 96V G-Series battery (G102-100 or G102-230), a G-Series charger or the 2 kW MPPT solar charge controller, and your choice of Smart control — Tiller, Throttle, Side-Mount, or a 5″ / 10″ Display. Everything connects with keyed eSSA cables. Our advisors will size the battery, charging, and controls with you.

You also need a 12V battery. Beyond the 96V propulsion pack, the X-Series uses a separate 12V supply to run its controls, display, trim/tilt, steering, and electronics. An included 96V→12V DC-DC converter (500W) keeps that 12V battery charged from the propulsion pack. The 12V battery is not included and should provide at least 120 Ah capacity and 120 A continuous output — we'll spec it with the rest of your system.

Specifications

Choosing your shaft

Mounting height matters: a Short shaft suits transoms up to about 17 in (440 mm), and a Long shaft suits roughly 17–22 in (440–550 mm). The right height avoids cavitation (too high) and extra drag (too low) — when in doubt, we'll confirm it with you.

What's in the box

• X12 motor with pre-connected internal wiring
• Bus Box 250A
• 96V→12V DC-DC converter, 5 m 12V power cable, and 12V fuse
• eSSA Communication 3-way and 5-way T connectors
• eSSA Communication Cable 1m and Extension Cable 10m
• eSSA Communication Terminators (120Ω and 360Ω)
• G Battery Output Cable Kit 5m (positive & negative)

To complete the system you'll add a 96V G-Series battery, a 12V battery (≥120 Ah/120 A), a charger, and your chosen control/display.

Applications

RIBs, tenders, dinghies, day boats, and other small craft moving to clean, quiet electric power.

Warranty

Covered by ePropulsion's 24-month limited warranty (from delivery to the first end customer) against defects in materials and workmanship under normal recreational use with proper installation and maintenance. Commercial or professional use is covered by your local statutory warranty instead. Blue Marine is an authorized ePropulsion dealer and will help with any claim.

Support

Professional installation is strongly recommended. Schedule an online consultation and our ABYC-certified advisors will size the propulsion battery, 12V supply, charging, and controls as one system.

Shaft options: Short (15 in, 106 lb) and Long (20 in, 110 lb).
