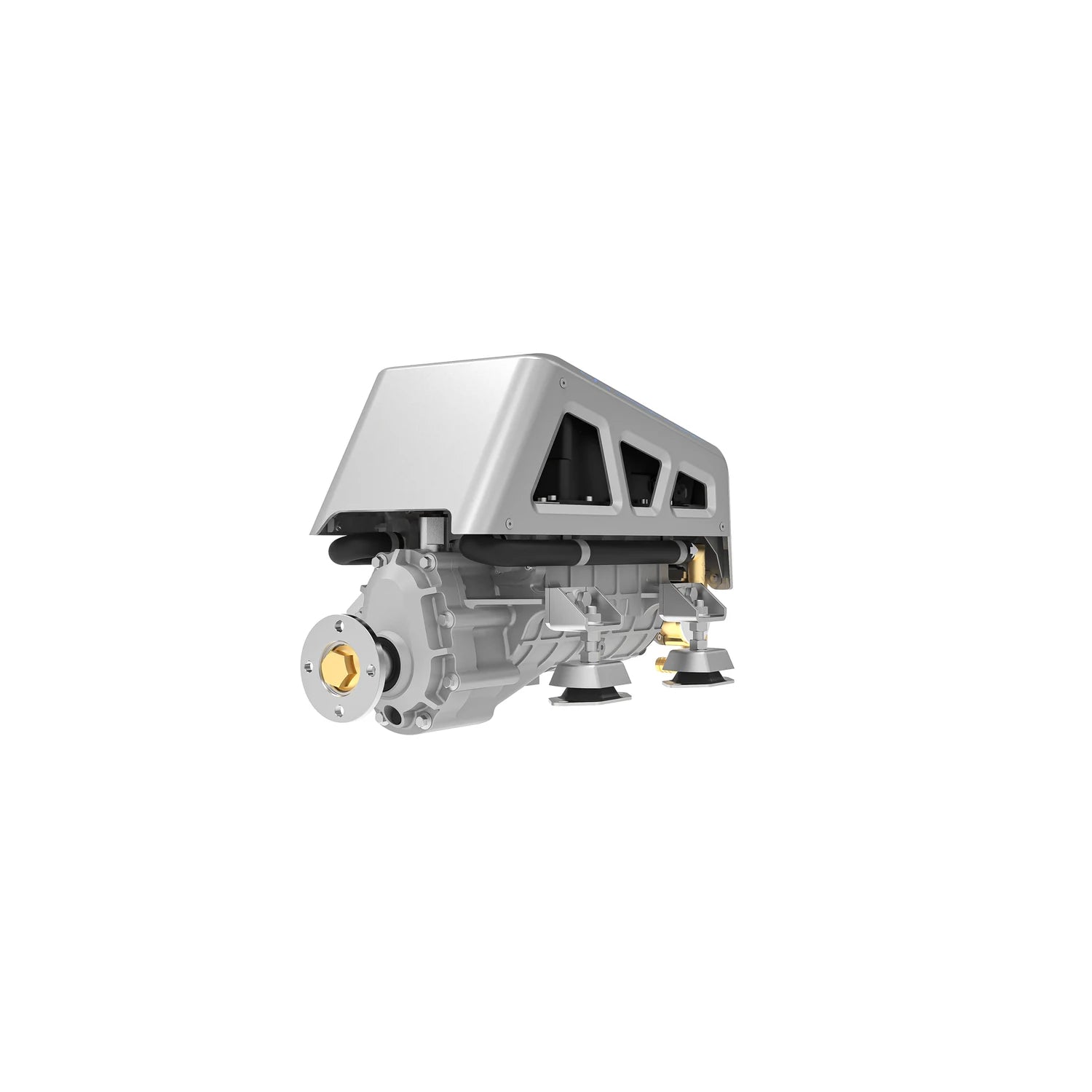

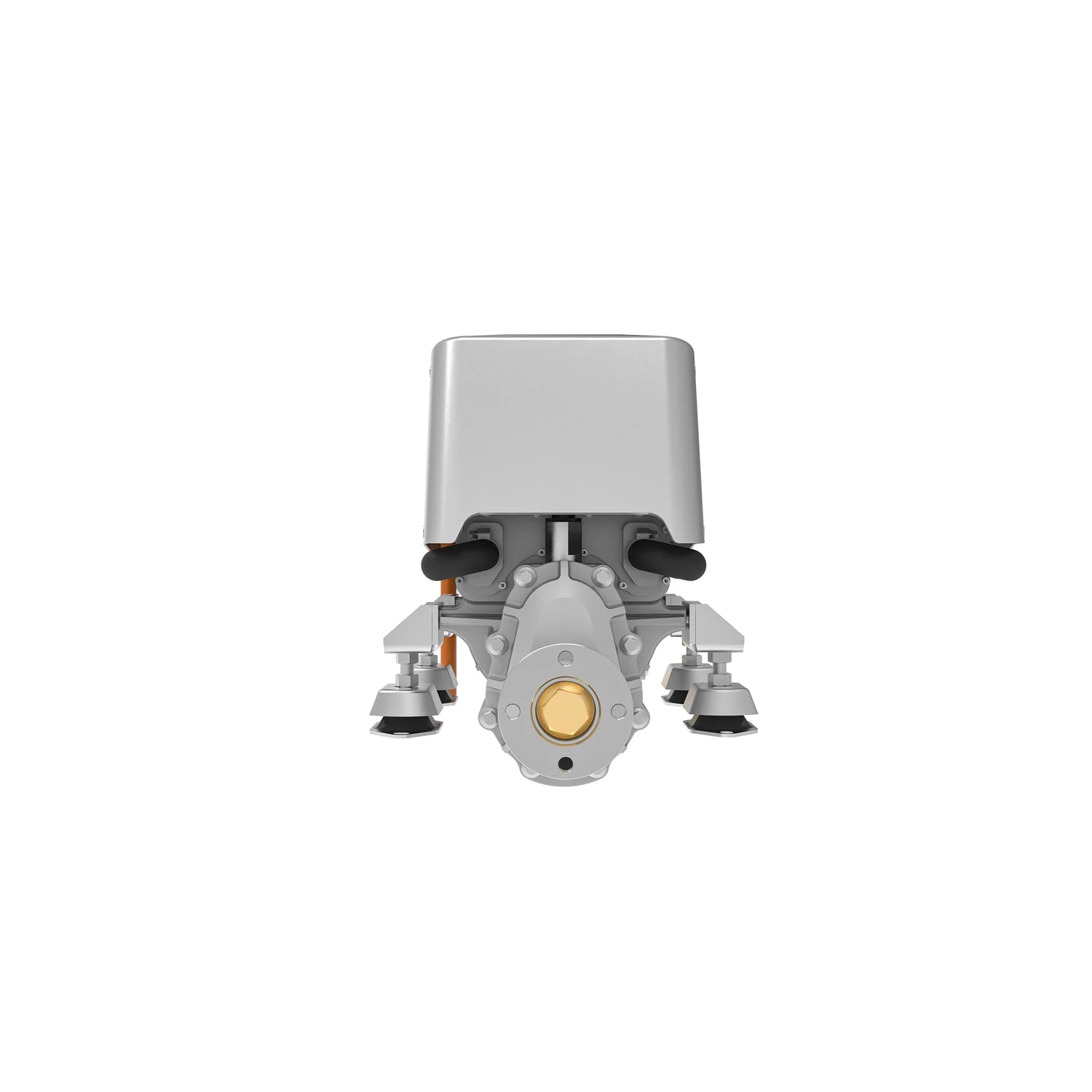

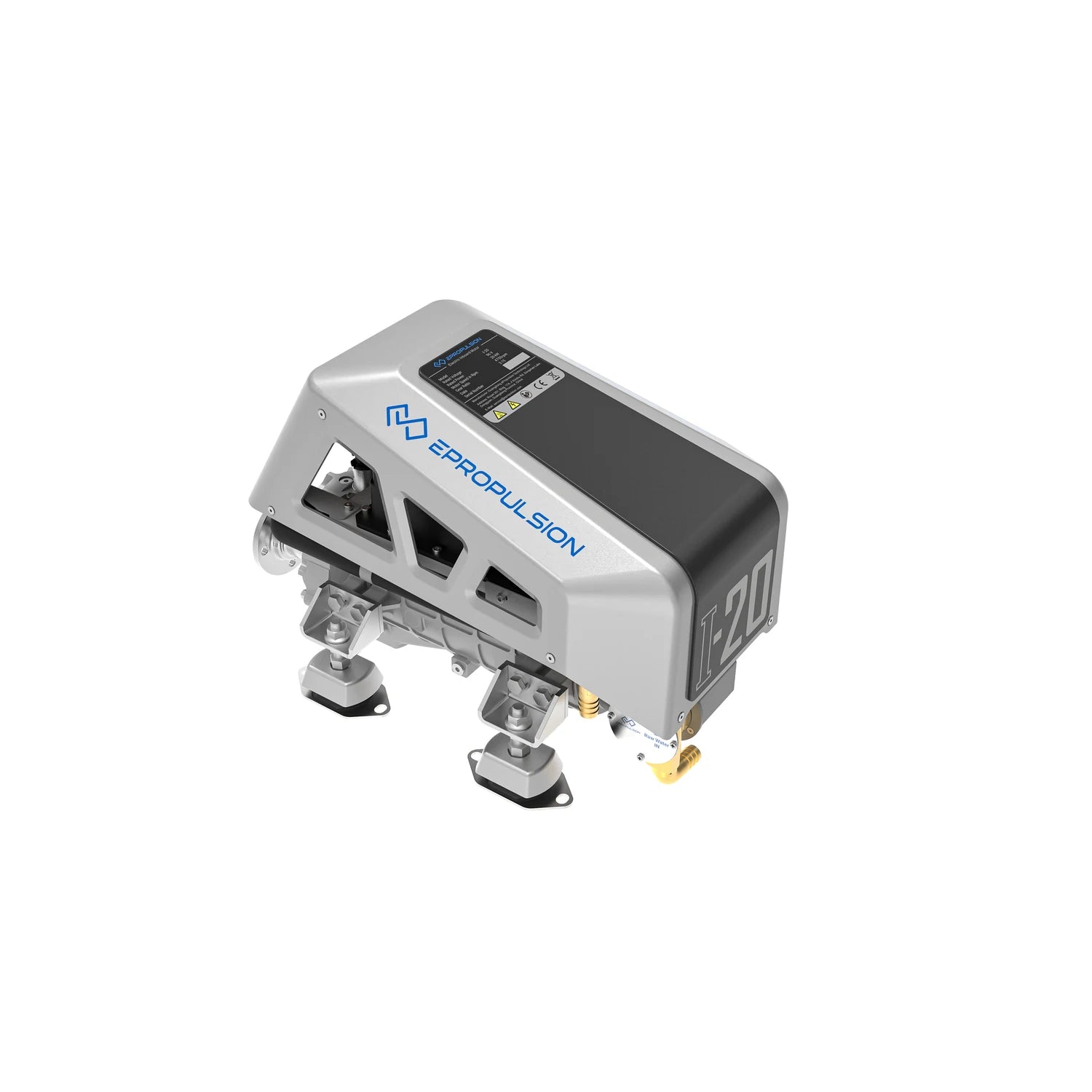

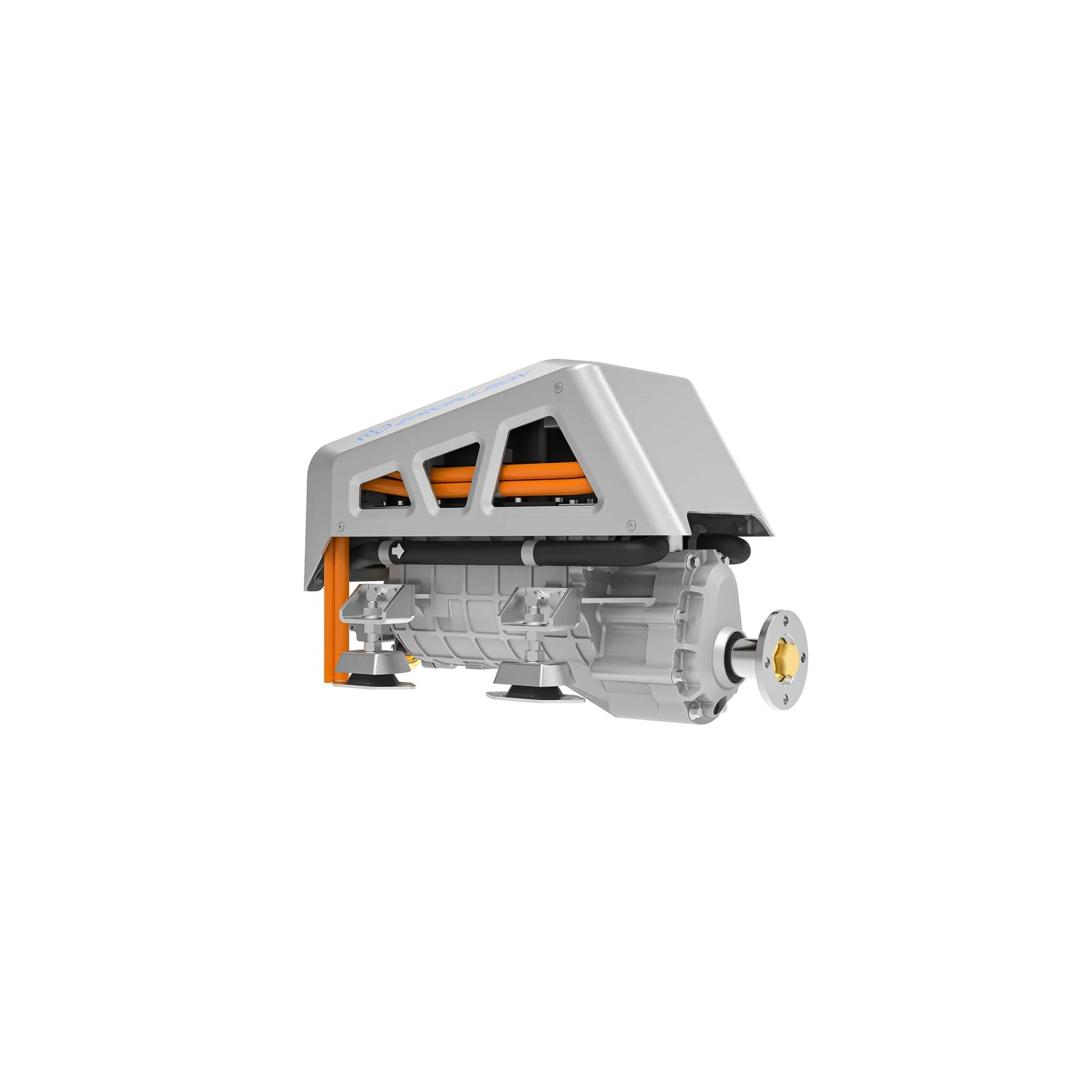

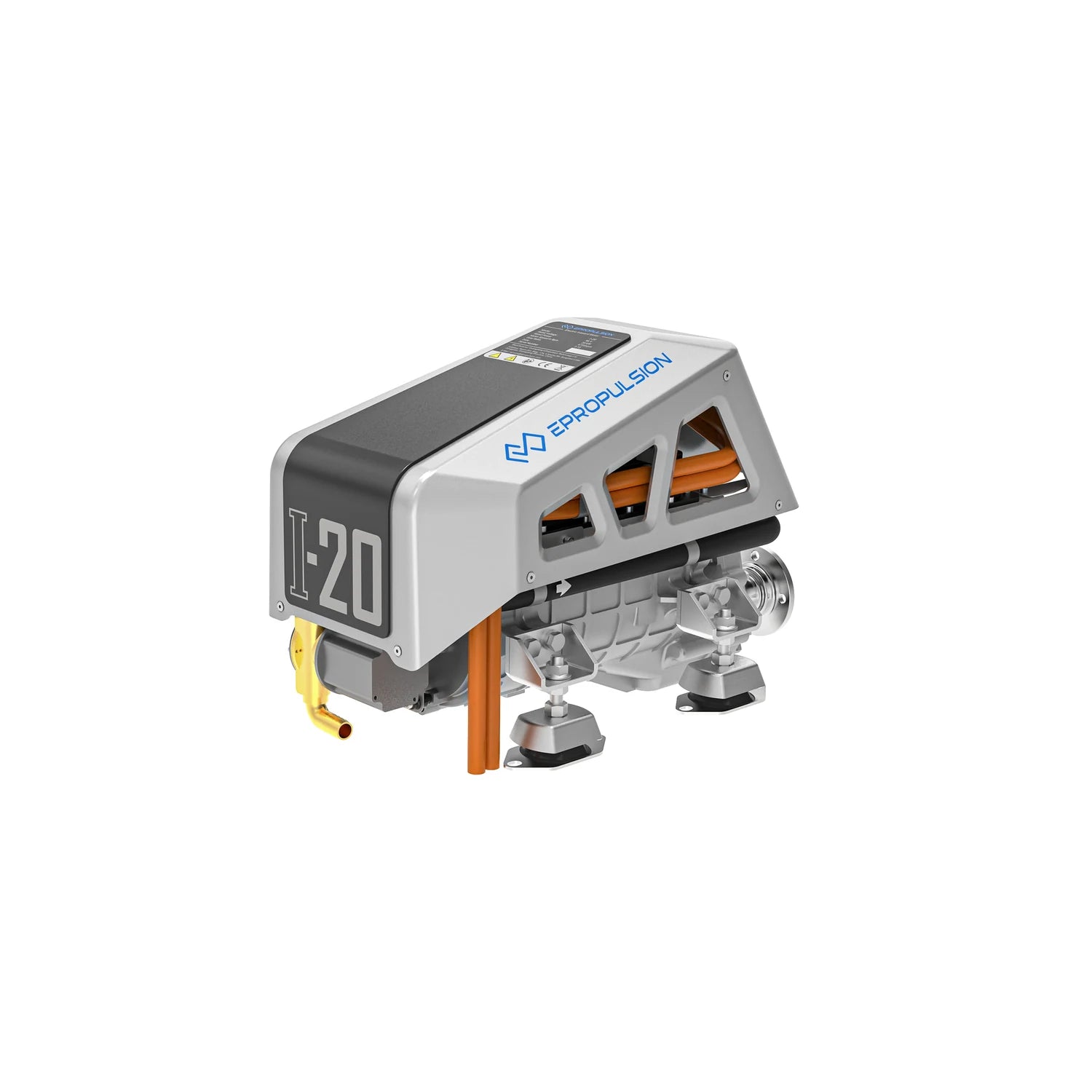

ePropulsion I-20 Electric Inboard Motor (20 kW, 96V eSSA)

ePropulsion I-20 — 20 kW, 96V Electric Inboard

The I-20 steps ePropulsion's 96-volt I-Series up to 20 kW — clean, quiet inboard power for cruising sailboats, multihulls, and small powerboats. Like the rest of the range it integrates motor, gearbox, controller, system control and cooling into one compact, plug-and-play unit built for new installs and electric repowers.

Why the I-Series

• 5-in-1 integration — ~60% less space than a comparable combustion engine.
• Light — 109 lb; up to 65% lighter than combustion and ~30% lighter than comparable electric inboards.
• Hydrogeneration — recharges the battery from water flow while sailing.
• Plug-and-play pre-connected wiring; connected via the cloud Connectivity Service.
• Unified Smart Throttle + 5″ display; dual-motor route planning supported.

One connected system — eSSA

The I-20 runs on ePropulsion's eSSA architecture. Complete the system with a 96V G-Series battery (G102-100 or G102-230), a G-Series charger or 2 kW MPPT solar controller, and your choice of Smart control/display, all on keyed eSSA cabling. Our advisors will size it with you.

You also need a 12V battery. Beyond the 96V propulsion pack, the I-Series uses a separate 12V supply for its controls, display, and electronics. An included 96V→12V DC-DC module keeps it charged from the propulsion pack. The 12V battery is not included and should provide at least 18 A continuous discharge — we'll spec it with the rest of your system.

Specifications

What's in the box

• I-20 inboard motor (pre-connected internal wiring)
• High-voltage power cable (2 m)
• 96V→12V DC-DC module and 12V power cable
• Bus Box
• eSSA communication cable and terminators

To complete the system you'll add a 96V G-Series battery, a 12V battery (≥18 A continuous), a charger, and your chosen control/display.

Applications

Cruising sailboats, multihulls, narrowboats, leisure powerboats, and light commercial craft.

Warranty

Covered by ePropulsion's 24-month limited warranty (from delivery to the first end customer) against defects in materials and workmanship under normal recreational use with proper installation and maintenance. Commercial or professional use is covered by your local statutory warranty instead. Blue Marine is an authorized ePropulsion dealer and will help with any claim.

Support

Professional installation is strongly recommended. Schedule an online consultation and our ABYC-certified advisors will size the whole system and advise on repower fit.
