ePropulsion G-Series Battery Charger (16A / 32A, 96V eSSA)

ePropulsion G-Series Battery Charger (16A / 32A, 96V eSSA)

The G-Series chargers recharge ePropulsion's 96-volt G-Series (and E100) batteries from shore power or an onboard generator. Each one communicates with the battery's BMS over CAN for a fully managed, safe charge, and is built marine-tough — a fully potted, IP67-sealed case that runs reliably from −40 to 55 °C. Choose the 16 A for everyday charging or the 32 A for faster turnarounds and larger banks.

Key features

• Made for ePropulsion 96V batteries — required for warranty; third-party chargers aren't supported.
• Managed CAN charging — talks to the battery BMS, with constant-voltage / constant-current control.
• IP67, fully potted — sealed against water and dust; built-in thermal protection that auto-recovers.
• High efficiency — up to 93% on the 16 A model.
• Parallel-ready — run several chargers together (with the Parallel Charge CANHub) for more current on big banks.

A note on charge speed and voltage

Output depends on your AC supply: on 110–120 V (typical US shore power) the 16 A charger delivers up to about 1650 W (~16 A to a 96V bank); on 220–240 V it delivers up to about 3300 W (~32 A). The 32 A model roughly doubles charge current again for the quickest turnaround — we'll match the right charger to your dock power and bank size.

Models

• 16 A — GB-C001-00: AC input 90–265 V; DC output 65–161 V, up to 32 A / 3300 W at 220 V (1650 W at 110 V); ≥93% efficiency; fanless (fully potted); IP67.

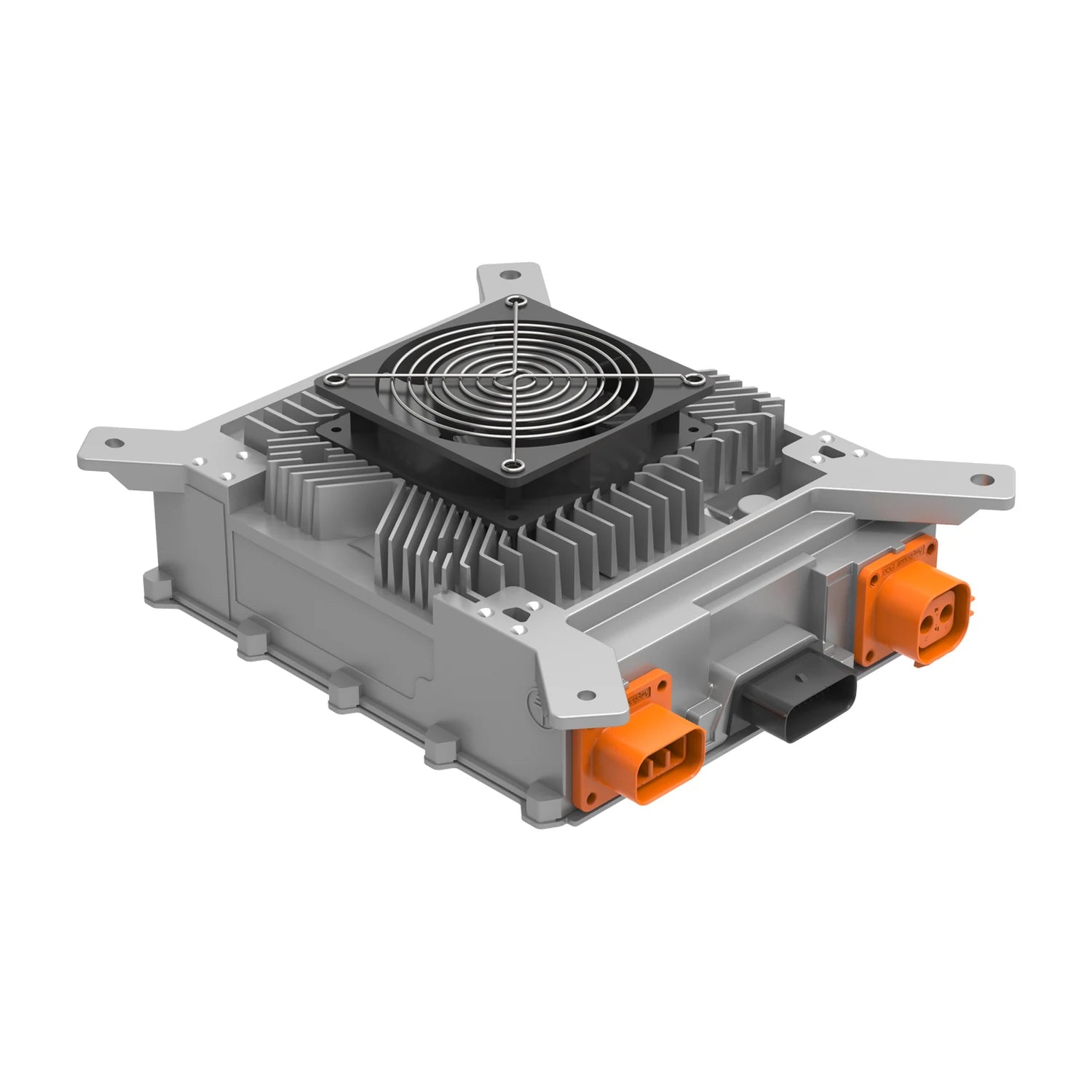

• 32 A — GB-C004-00 (model HK-LF-115-58): AC input 100–240 V; higher output for faster charging and larger banks; fan-cooled; IP67; 19.8 lb (9 kg); 9.2 × 10.3 × 3.9 in (233 × 262 × 100 mm).

What's in the box

• Charger
• AC power cable (2 m)
• DC output cable
• Communication cable
• Mounting bracket (32 A model)

Which one?

• 16 A — everyday charging for a single battery or modest bank.
• 32 A — about double the charge rate; better for larger banks or short dock time.

For off-grid or supplemental charging, pair with the ePropulsion 2 kW MPPT Solar Charge Controller; for fast multi-charger setups, add the Parallel Charge CANHub.

Warranty

Covered by ePropulsion's 24-month limited warranty (from delivery to the first end customer) against defects in materials and workmanship under normal recreational use with proper installation and maintenance. Commercial or professional use is covered by your local statutory warranty instead. Blue Marine is an authorized ePropulsion dealer and will help with any claim.

Support

Want us to match charger output to your bank and dock power? Schedule an online consultation and our ABYC-certified advisors will spec it with you.
