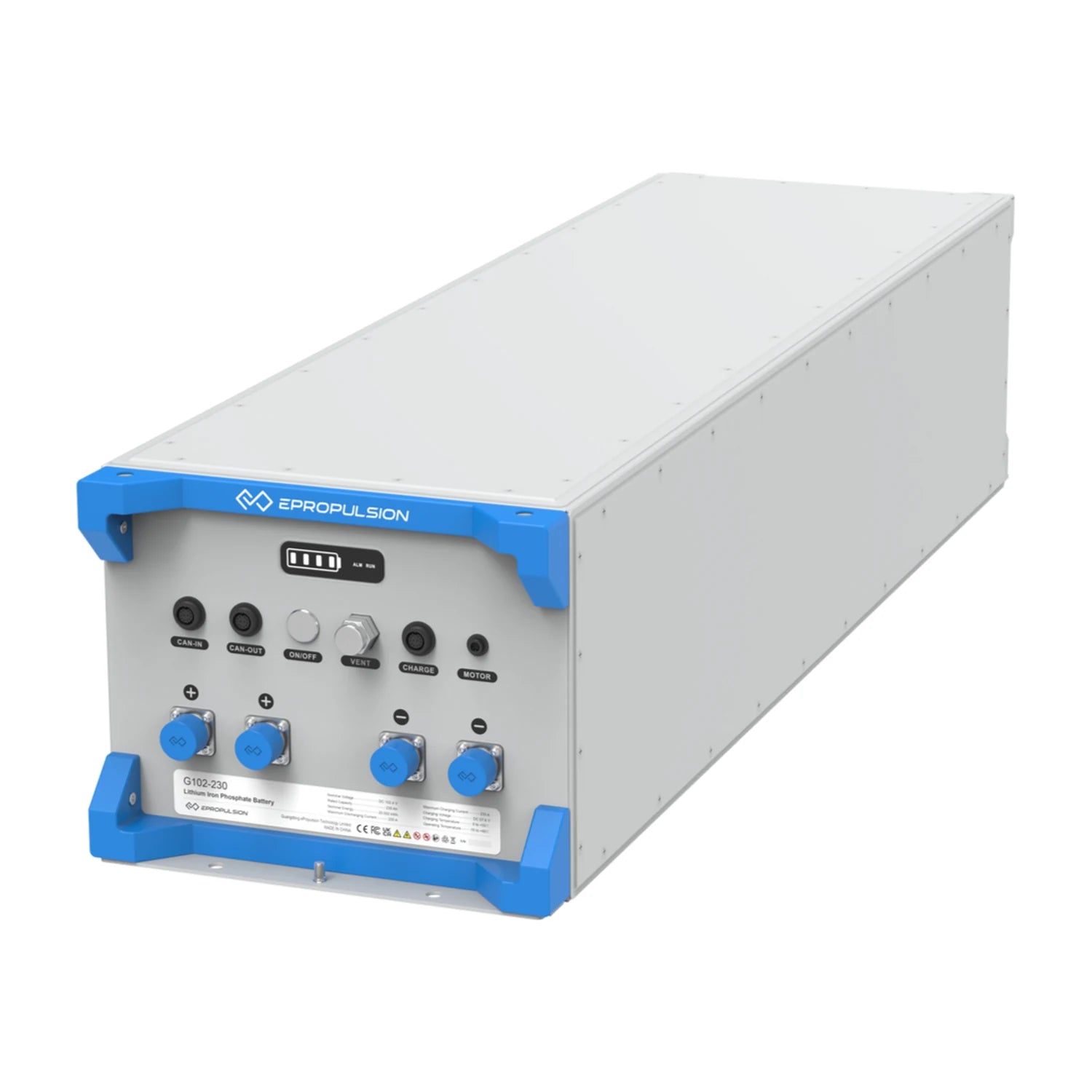

ePropulsion G-Series 96V LiFePO4 Battery (G102-100 / G102-230)
Free shipping over $49
60-day hassle-free returns
ePropulsion G-Series 96V LiFePO4 Battery
The G-Series is ePropulsion's high-capacity 96-volt marine battery, engineered to power the 10–40 kW eSSA range — the X-Series outboards, I-Series inboards, and POD Drive eSSA. Built on lithium iron phosphate (LiFePO4) with an integrated smart BMS and a rugged, IP67 all-metal housing, it delivers stable voltage, high energy density, and a long service life for demanding marine use.
Key features
- Made for ePropulsion eSSA motors — communicates directly with the motor over CAN for accurate state-of-charge and optimized performance.
- High energy density — about 3× the density and ~70% less weight than equivalent lead-acid.
- Long life — 3,000 cycles (G102-100) / 3,500 cycles (G102-230) at 80% state of health.
- 1C fast charging for minimal downtime.
- Waterproof to IP67; integrated smart BMS for safety.
- Scalable — connect up to 8 batteries in parallel per cluster (multiple clusters supported). Parallel only — series connection is not supported.
- Certified CE, UKCA, FCC, UN38.3.
Specifications
| G102-100 | G102-230 | |
| Chemistry | LiFePO4 | LiFePO4 |
| Rated voltage | 102.4 V | 102.4 V |
| Capacity | 10,240 Wh / 100 Ah | 23,552 Wh / 230 Ah |
| Cycle life | 3,000 @ 80% SoH | 3,500 @ 80% SoH |
| Max charge / discharge current | 100 A / 100 A | 230 A / 230 A |
| Final charge / cut-off voltage | 115.2 V / 83.2 V | 115.2 V / 83.2 V |
| Weight | 220.5 lb (100 kg) | 396.8 lb (180 kg) |
| Dimensions (L×W×H) | 26.8 × 19.7 × 11.8 in | 50.7 × 14.4 × 11.6 in |
| Charging temperature | 32–131°F (0–55°C) | 32–131°F (0–55°C) |
| Discharging temperature | 14–140°F (−10 to 60°C) | 14–140°F (−10 to 60°C) |
| Protection | IP67 | IP67 |
| Connection | Parallel up to 8 per cluster | Parallel up to 8 per cluster |
Mounting
Mount lay-flat (handle facing up) or stand-up (connector facing up). For storage, keep the battery around 45–50% state of charge.
Charging
Charge with the ePropulsion G-Series chargers (16 A or 32 A) or the 2 kW MPPT solar charge controller. Per ePropulsion's warranty terms, third-party chargers are not supported — we'll spec the right charging for your system.
Compatibility
Works with the X-Series outboards, I-Series inboards, and POD Drive eSSA. Parallel multiple G-Series to grow capacity for higher-power motors and longer range.
Warranty
Covered by ePropulsion's 24-month limited warranty (from delivery to the first end customer) against defects in materials and workmanship under normal recreational use with proper installation and maintenance. Commercial or professional use is covered by your local statutory warranty instead. Blue Marine is an authorized ePropulsion dealer and will help with any claim.
Support
Schedule an online consultation and our ABYC-certified advisors will size the bank, charging, and protection as one system.
Shipping & Returns
We offer free shipping over $49. Lithium batteries & oversize items may have an applicable shipping charge.
We know returns are no fun so we aim to make the return process as hassle free as possible! We have a 60-day return policy, which means you have 60 days after receiving your item to request a return.
Lithium batteries and products with lithium batteries inside are non returnable: Due to carrier regulations surrounding the shipment of lithium batteries (classified as a fully regulated hazardous material), we are unable to accept returns unless arranged locally. We appreciate your understanding and encourage you to contact us with any questions prior to purchase.
For more information on returns, visit our return policy page.
Product Attachments
