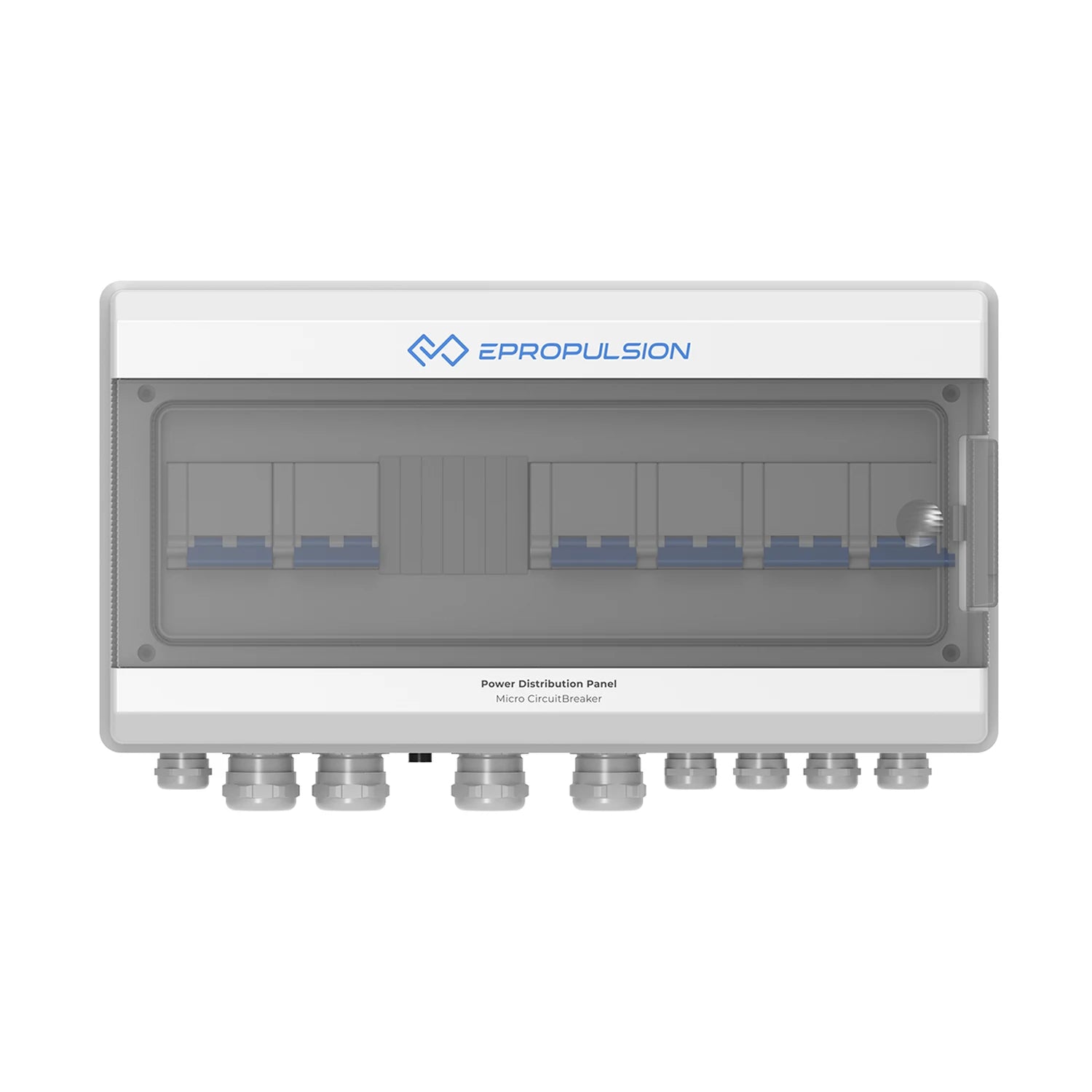

ePropulsion eSSA Distribution Box 96VDC

ePropulsion eSSA Distribution Box 96VDC

The 96VDC Distribution Box is the organized, protected hub for the high-voltage DC side of an ePropulsion eSSA system. Built around appropriately rated micro circuit breakers (MCBs), it splits the 96V bus into multiple individually protected branch circuits — so each motor, DC-DC converter, or DC accessory gets its own breaker, on/off switch, and overcurrent protection in one tidy panel. It's purpose-built for eSSA and eSSA EMS installations.

What it does

• Branch power distribution — distributes the 96V DC bus to multiple circuits through internal MCBs (up to 18 positions).
• Per-branch switching — on/off control for each circuit (switch under no load).
• Overcurrent & overload protection — built-in circuit breakers protect each branch.
• Status monitoring — RS485 communication reports breaker/switch status into the eSSA system.
• Marine-ready — IP44 enclosure; CE and FCC certified.

Specifications

Where it fits

An installer-grade component for larger eSSA builds where the 96V DC bus feeds several circuits — multiple motors, DC-DC converters, and high-voltage DC accessories — and each needs its own breaker and isolation. Pairs with the eSSA Battery Isolator (main disconnect + fusing) and, for AC circuits, the 220VAC Distribution Box.

Warranty

Covered by ePropulsion's 24-month limited warranty (from delivery to the first end customer) against defects in materials and workmanship under normal recreational use with proper installation and maintenance. Commercial or professional use is covered by your local statutory warranty instead. Blue Marine is an authorized ePropulsion dealer and will help with any claim.

Support

Professional installation is strongly recommended — this is high-voltage equipment. Schedule an online consultation and our ABYC-certified advisors will lay out the DC distribution and protection for your build.
