Epoch V2 Elite Series Heated LiFePO4 Batteries

Epoch Heated LiFePO4 Batteries with Bluetooth & Victron Integration

The Epoch Heated LiFePO4 Battery Series delivers reliable, high-capacity power storage engineered for demanding marine, RV, and off-grid applications. Each variant features an integrated self-heating system for cold-weather performance, advanced Bluetooth monitoring, and native Victron GX system compatibility via CAN communication. Designed for durability and safety, these IP67-rated batteries are built with robust internal battery management systems (BMS) and high-discharge capability, making them ideal for inverter loads, trolling motors, and energy storage systems.

Available in 12V, 24V, and 48V configurations, these batteries offer scalable solutions for a wide range of system voltages and capacities.

Key Features

• Integrated Heating System: Operates in cold climates with automatic self-heating during charging.

• Smart BMS: Protects against overcharge, over-discharge, overcurrent, short circuits, and temperature extremes.

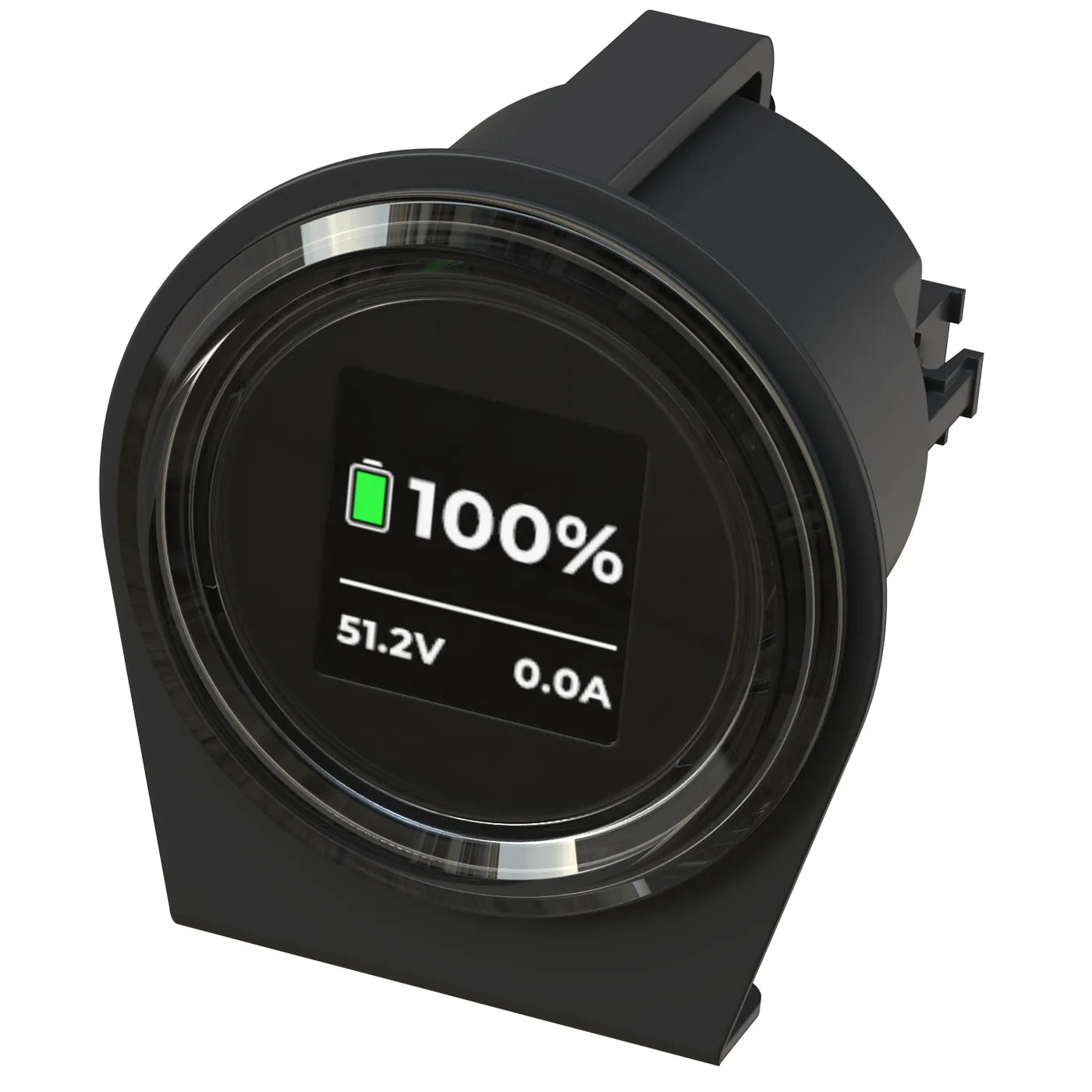

• Bluetooth Monitoring: Real-time insights into battery health and status via smartphone app.

• Victron-Ready: Plug-and-play CAN bus communication with Victron GX devices.

• IP67 Waterproof Housing: Rugged design resists water and dust ingress for marine-grade reliability.

• Expandable Design: Connect multiple batteries in parallel to scale your system.

• 11 Year Manufacturer Warranty



Specifications by Model:

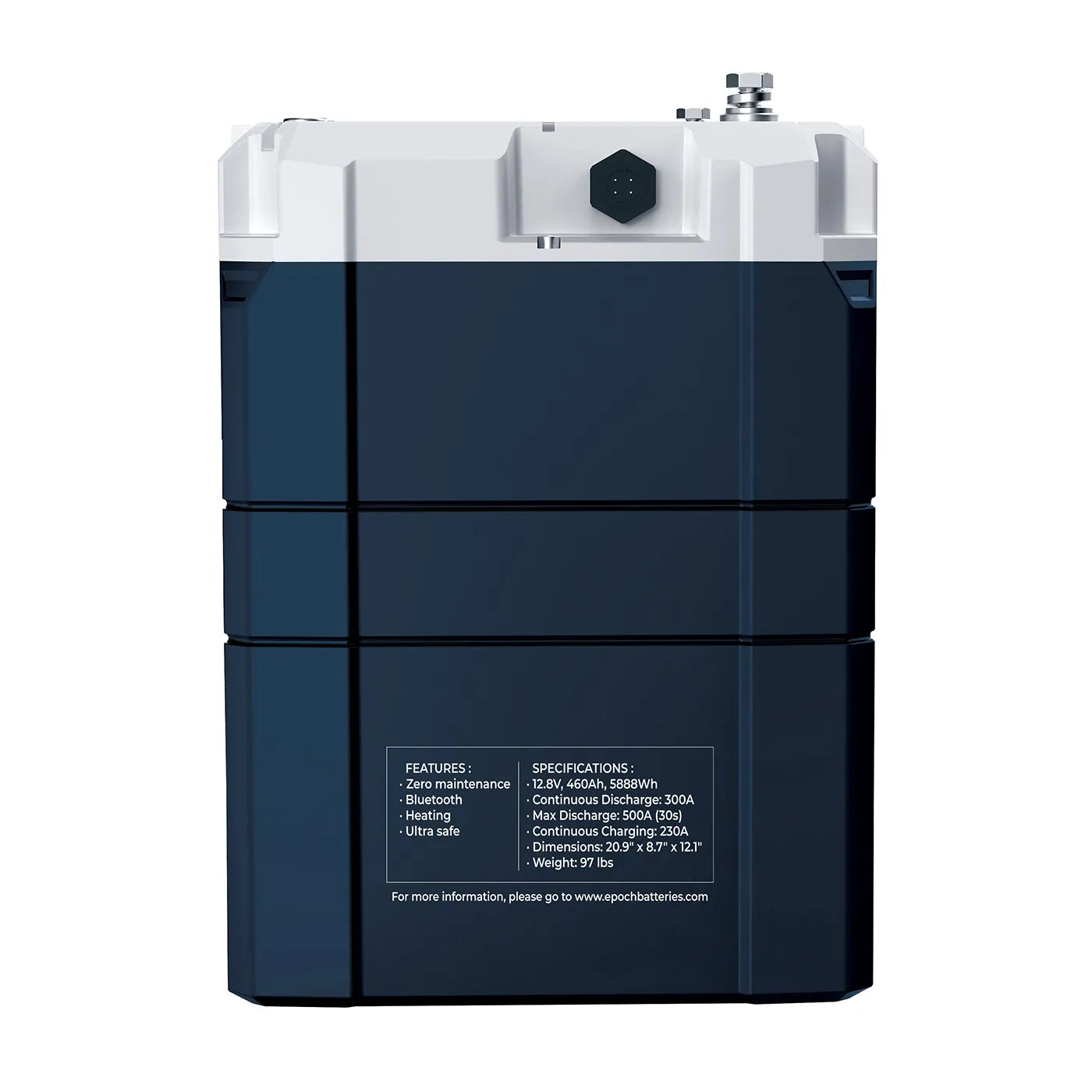

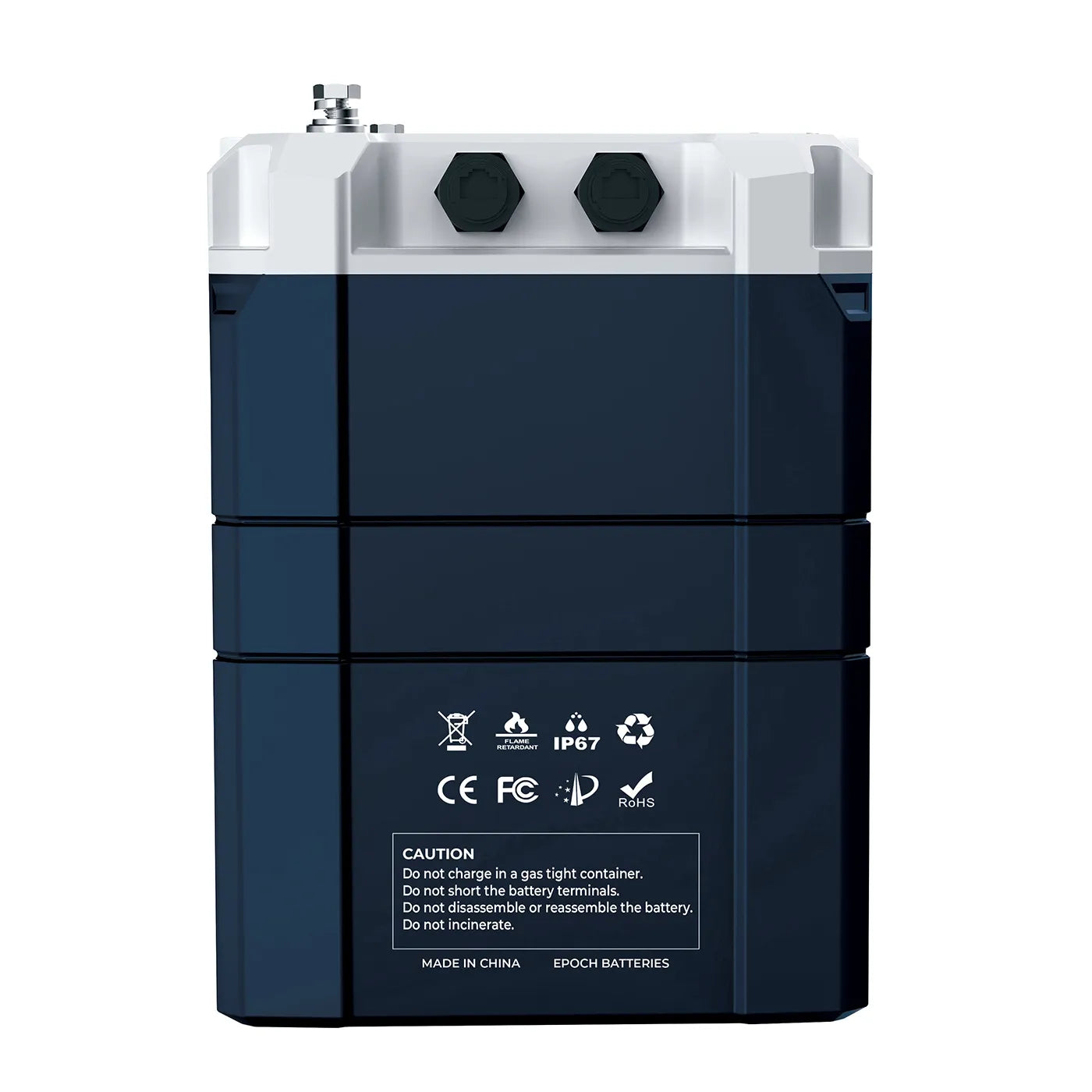

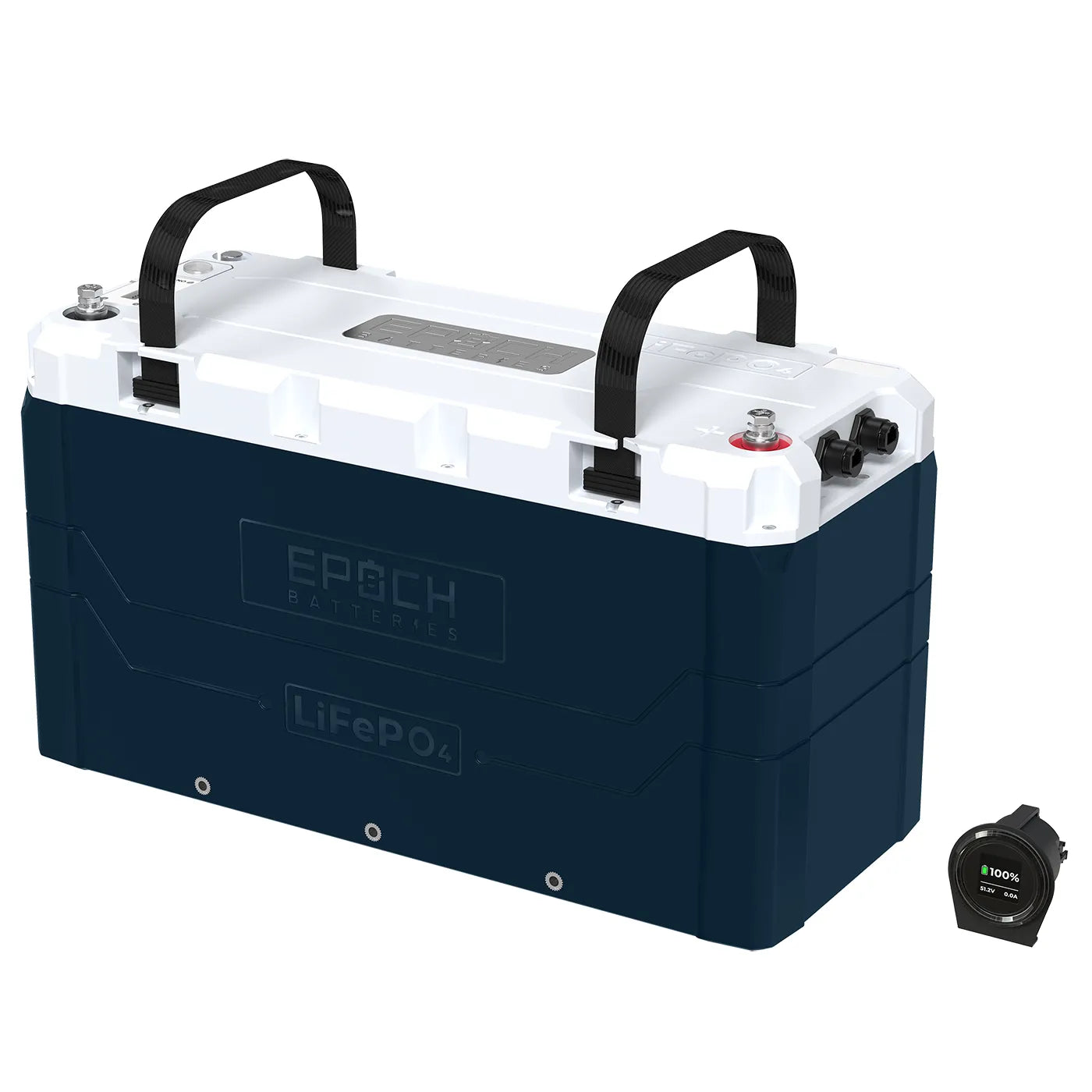

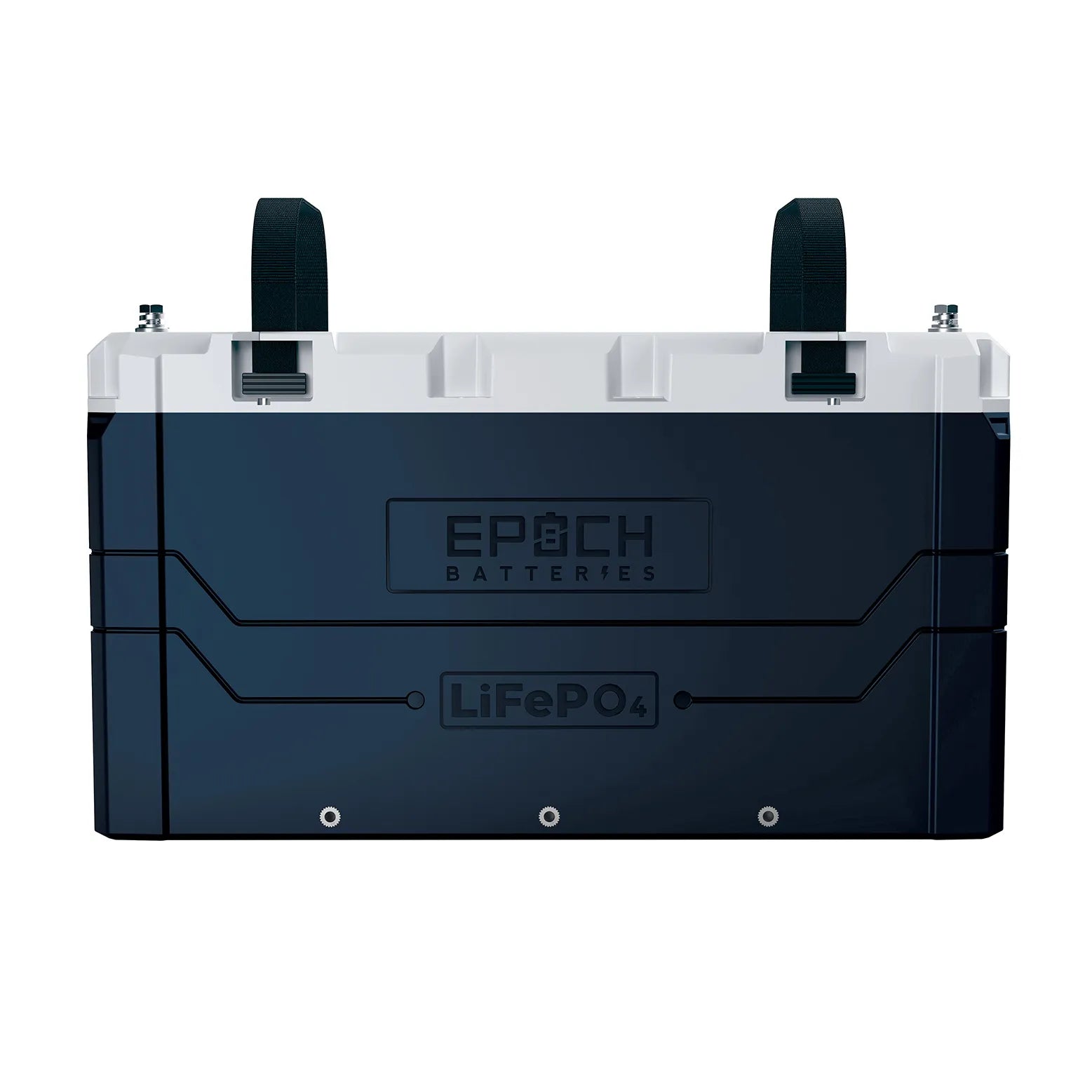

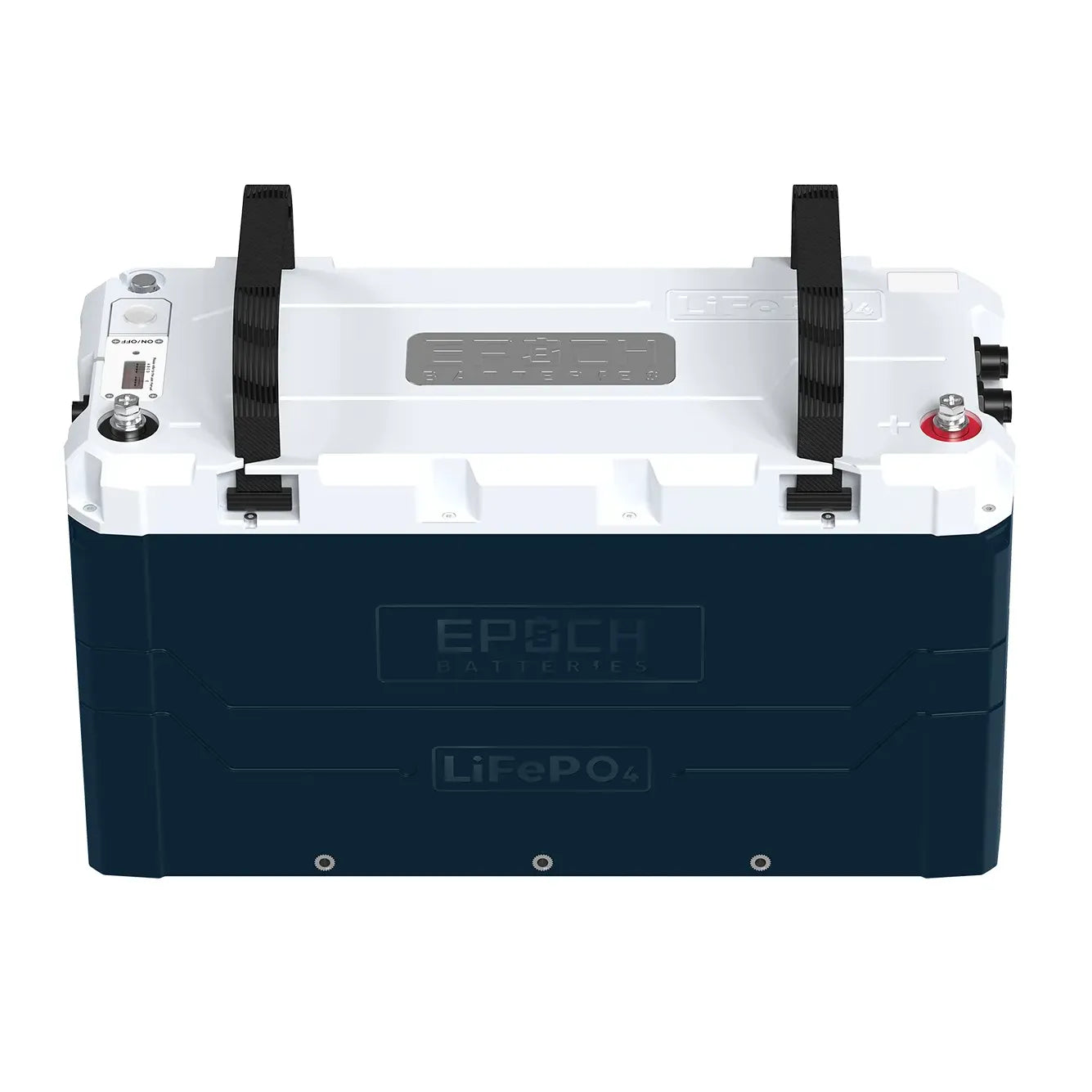

Epoch V2 Elite 12V 460Ah Heated LiFePO₄ Battery

• Nominal Voltage: 12.8V

• Capacity: 460Ah (5.89 kWh)

• Max Continuous Discharge: 250A

• Series | Parallel: Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P

• Max Charge Current: 250A

• Cycle Life: 3,500+ cycles @ 80% DoD

• Operating Temperature:

  • Charge: -4°F to 131°F (with heating)

  • Discharge: -4°F to 140°F

• Bluetooth & CAN Communication: Yes

• Ingress Rating: IP67

• Weight: 97 lbs

• Dimensions (L x W x H): 20.9 x 8.7 x 12.1 in (Group D Size)

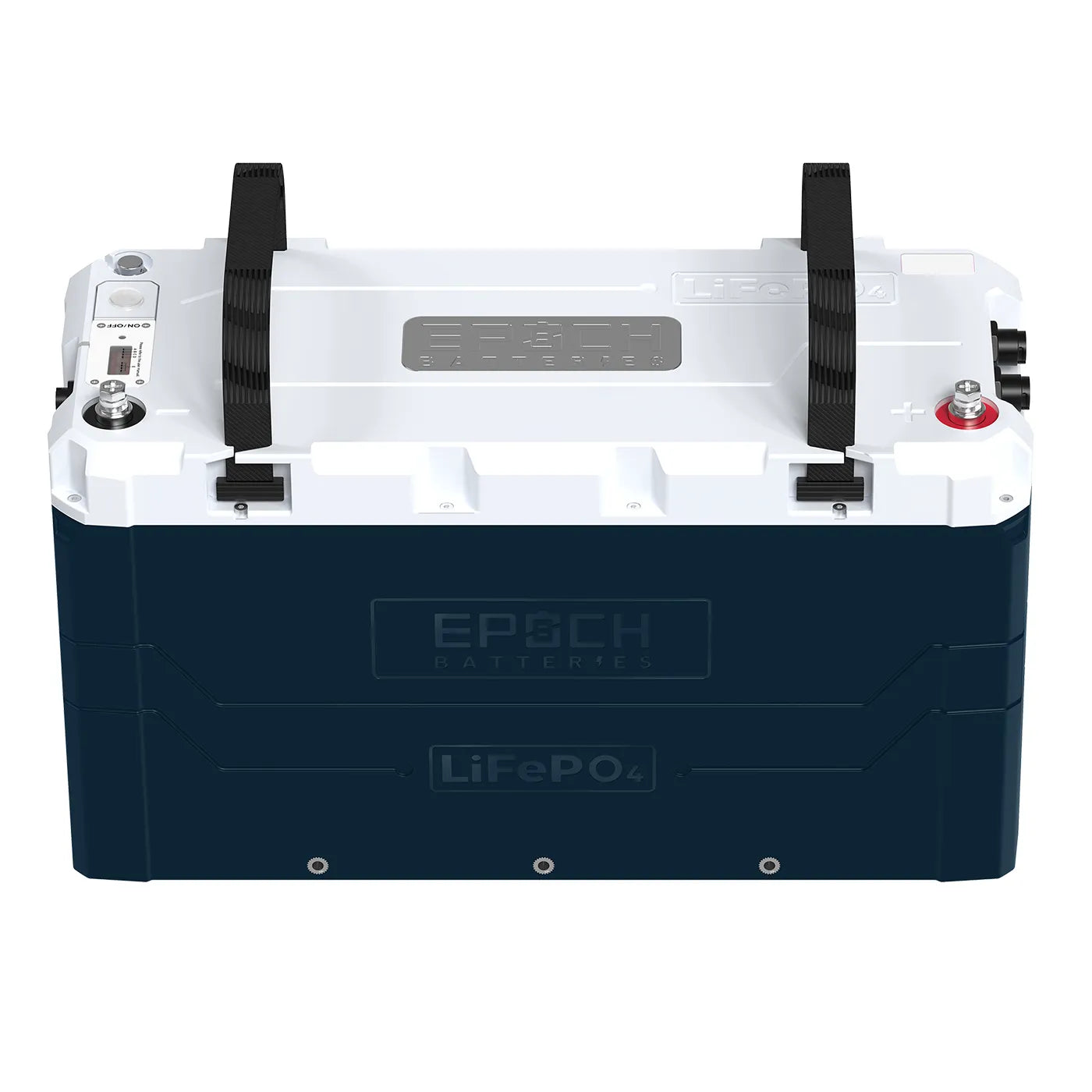

Epoch V2 Elite 24V 230Ah Heated LiFePO₄ Battery (V2)

• Nominal Voltage: 25.6V

• Capacity: 230Ah (5.89 kWh)

• Max Continuous Discharge: 200A

• Max Charge Current: 230A

• Series | Parallel: Max (2) in Series OR Max (16) in Parallel - 2S1P or 1S16P

• Cycle Life: 3,500+ cycles @ 80% DoD

• Operating Temperature:

  • Charge: -4°F to 131°F (with heating)

  • Discharge: -4°F to 140°F

• Bluetooth & CAN Communication: Yes

• Ingress Rating: IP67

• Weight: 97 lbs

• Dimensions (L x W x H): 20.7 x 8.5 x 12 in

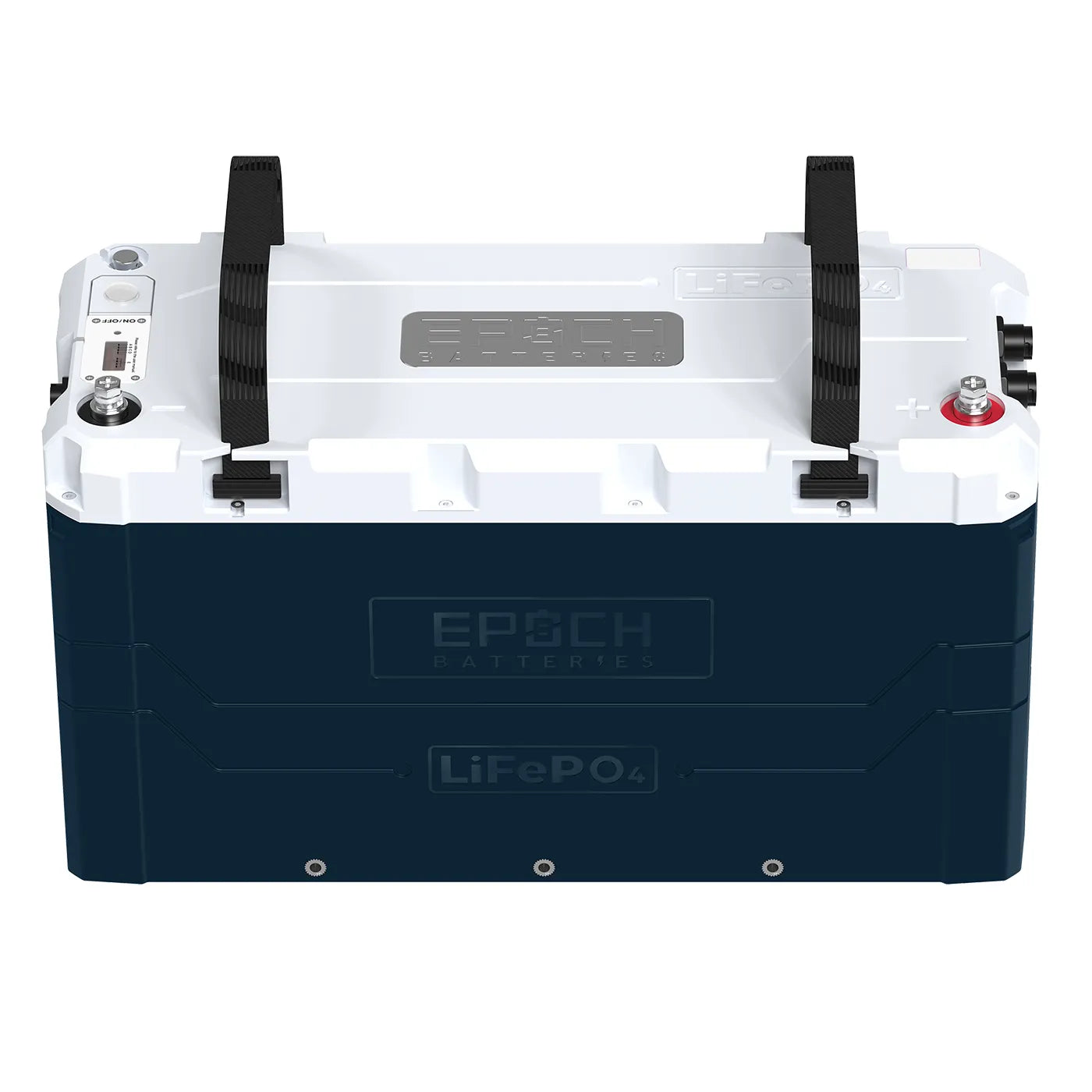

Epoch V2 Elite 48V 100Ah Heated LiFePO₄ Battery

• Nominal Voltage: 51.2V

• Capacity: 100Ah (5.12 kWh)

• Max Continuous Discharge: 150A

• Max Charge Current: 150A

• Series | Parallel: Max (16) in Parallel, Plug & Play

• Cycle Life: 3,500+ cycles @ 80% DoD

• Operating Temperature:

  • Charge: -4°F to 131°F (with heating)

  • Discharge: -4°F to 140°F

• Bluetooth & CAN Communication: Yes

• Ingress Rating: IP67

• Weight: 97 lbs

• Dimensions (L x W x H): 20.75 x 8.5 x 12 in

These high-performance Epoch batteries offer a plug-and-play solution for marine electrification, off-grid storage, and renewable power systems—backed by robust engineering and smart integration.
