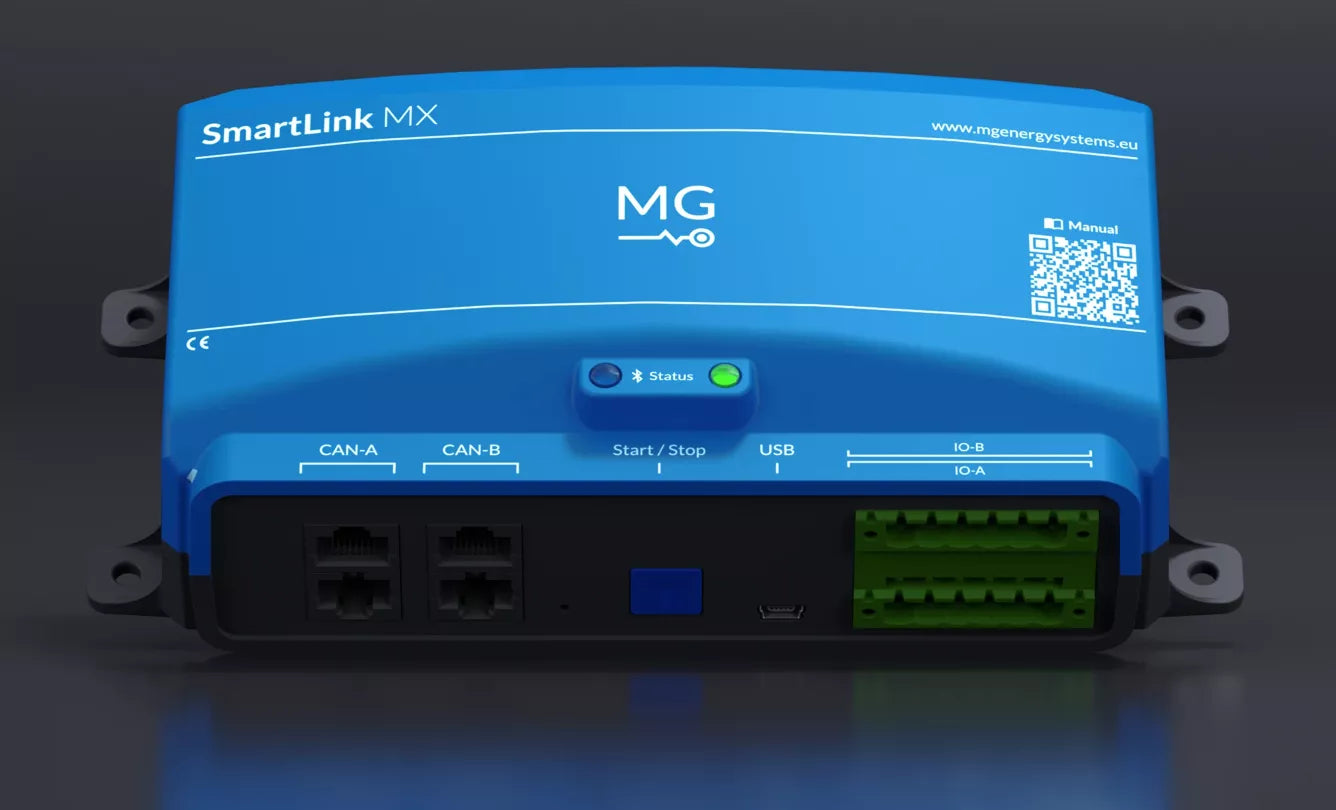

MG SmartLink MX Battery Data Combiner & System Controller

The MG SmartLink MX is the smart link between an MG battery system and the rest of your install. In banks running two or more MG Masters (LV or HV), it collects and combines all of their data and presents parallel-connected systems as a single battery bank — then transmits that combined data over CAN-Bus for third-party devices to use. It also actively controls the Masters, detecting system state plus warnings and errors and providing the controls to start, stop, and reset the whole bank. The MG Connect app over Bluetooth lets you monitor status, change settings, and update firmware.

Key Features

• Combines data from multiple MG Masters (LV and HV) into one view
• Presents parallel-connected systems as a single battery bank
• Transmits combined data over CAN-Bus (standard protocol based on NMEA2000) for third-party devices
• System control: start, stop, and reset the entire battery system
• Three programmable relays with selectable switching modes (e.g. combined allow-to-charge / allow-to-discharge)
• Bluetooth and the MG Connect app for monitoring, settings, and firmware updates

Warranty

MG Energy Systems backs this controller with a 4-year limited warranty covering defects in materials or workmanship. Normal end-of-life wear, which varies with usage and operating conditions, is not covered.

Blue Marine is an authorized MG Energy Systems dealer — ships brand-new with MG's 4-year limited warranty, free shipping, and local pickup available.
