Victron Energy Orion XS DC-DC Battery Charger

Delivering industry-leading efficiency and programmable charging for dual-battery systems—especially those with modern smart alternators—the Orion XS family combines adaptive 4-stage algorithms, rugged IP65 protection, and full remote monitoring to keep your service batteries in peak condition without risking your starter battery.

Common Features

• Wide Input & Output Range: Perfect for vehicles and marine systems with voltage drops or Euro 5/6 alternators

• Adjustable Charge Current (1–50 A): Protect alternators and fine-tune charging via VictronConnect in 0.1 A steps

• Engine Shutdown Detection: Charger only draws power when the engine runs, preventing starter-battery drain

• Adaptive 4-Stage Algorithm: Short absorption after light discharge, extended absorption after deep discharge—ideal for lead-acid and lithium batteries

• Comprehensive Protection: Overload, short circuit, low-temperature shutdown, undervoltage lockout, and thermal power-reduction safeguard both batteries and charger

• Scalable & Networked: Parallel multiple units for higher current; Bluetooth Smart, VE.Smart Networking, and VE.Direct/DVCC for advanced monitoring and control

• Fan-Free, IP65 Enclosure: Up to 98.5 % efficiency with aluminium circuit-board cooling—runs full power up to 40 °C without moving parts

Orion XS 12/12-50A

Ideal for 12 V → 12 V systems

• Input Voltage: 9–17 V DC

• Output Voltage Adjust: 10–17 V DC

• Continuous Power: 700 W (50 A) up to 40 °C

• Efficiency: 98.5 %

• Dimensions: 137.3 × 123.1 × 40 mm (5.4 × 4.85 × 1.6 in)

• Weight: 0.330 kg (0.73 lb)

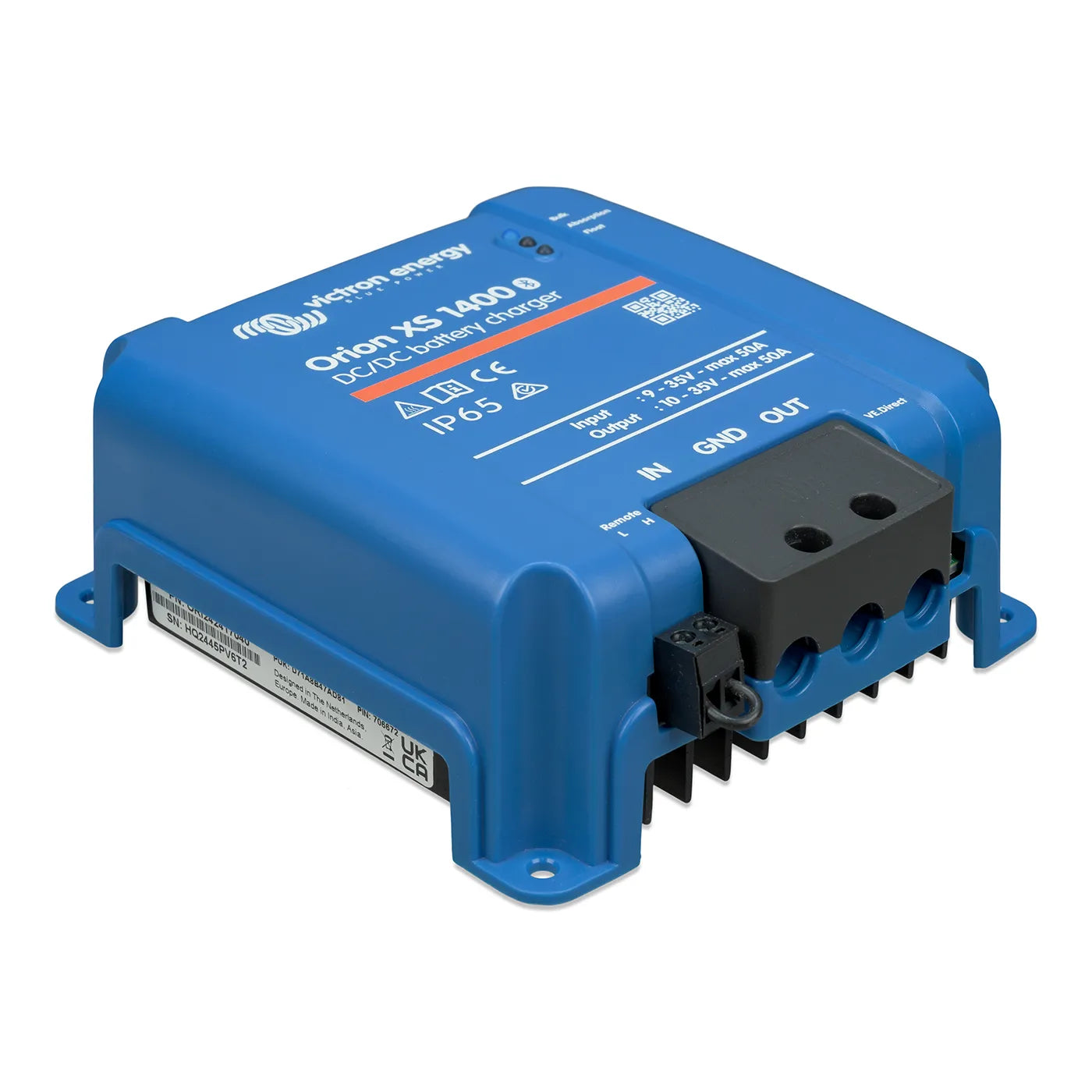

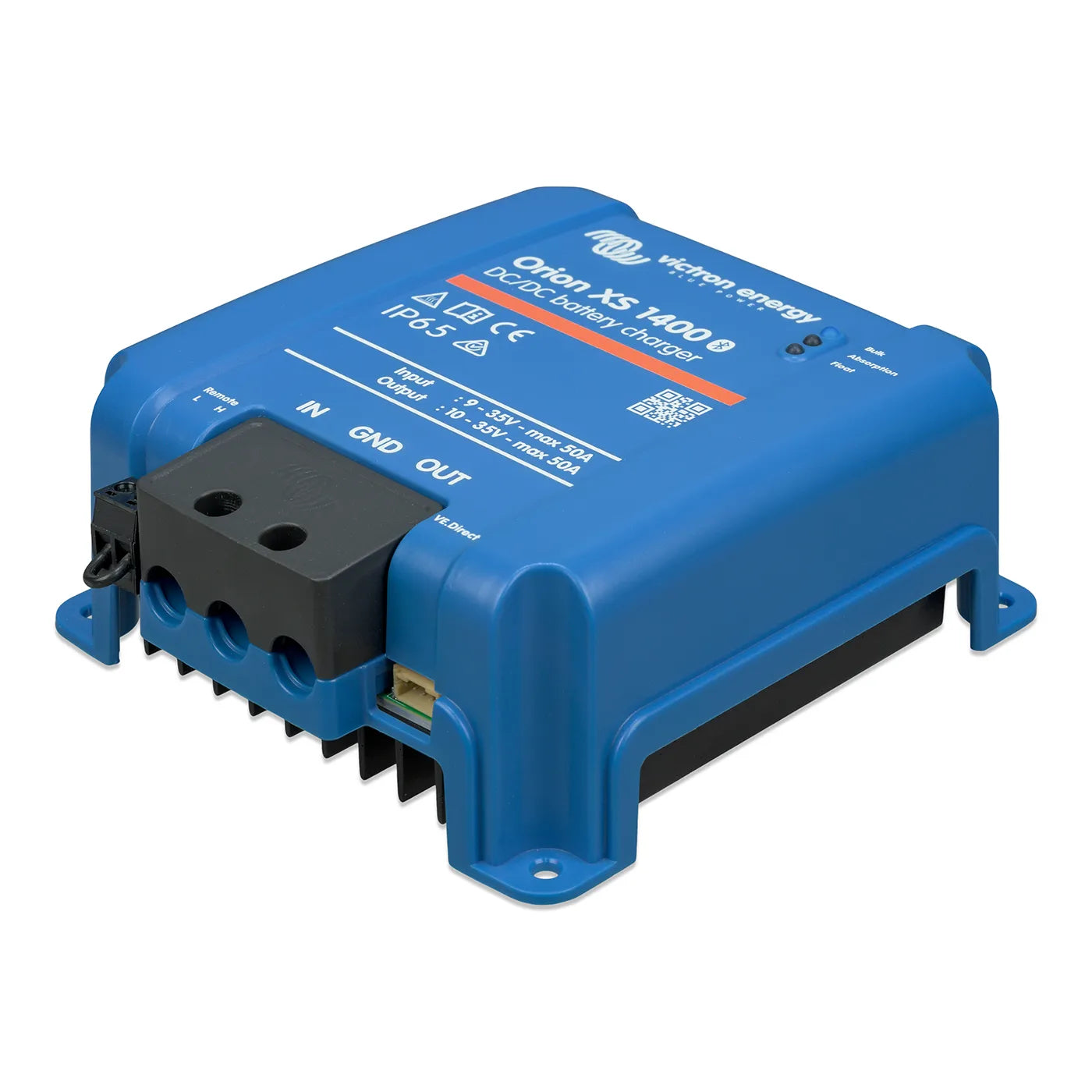

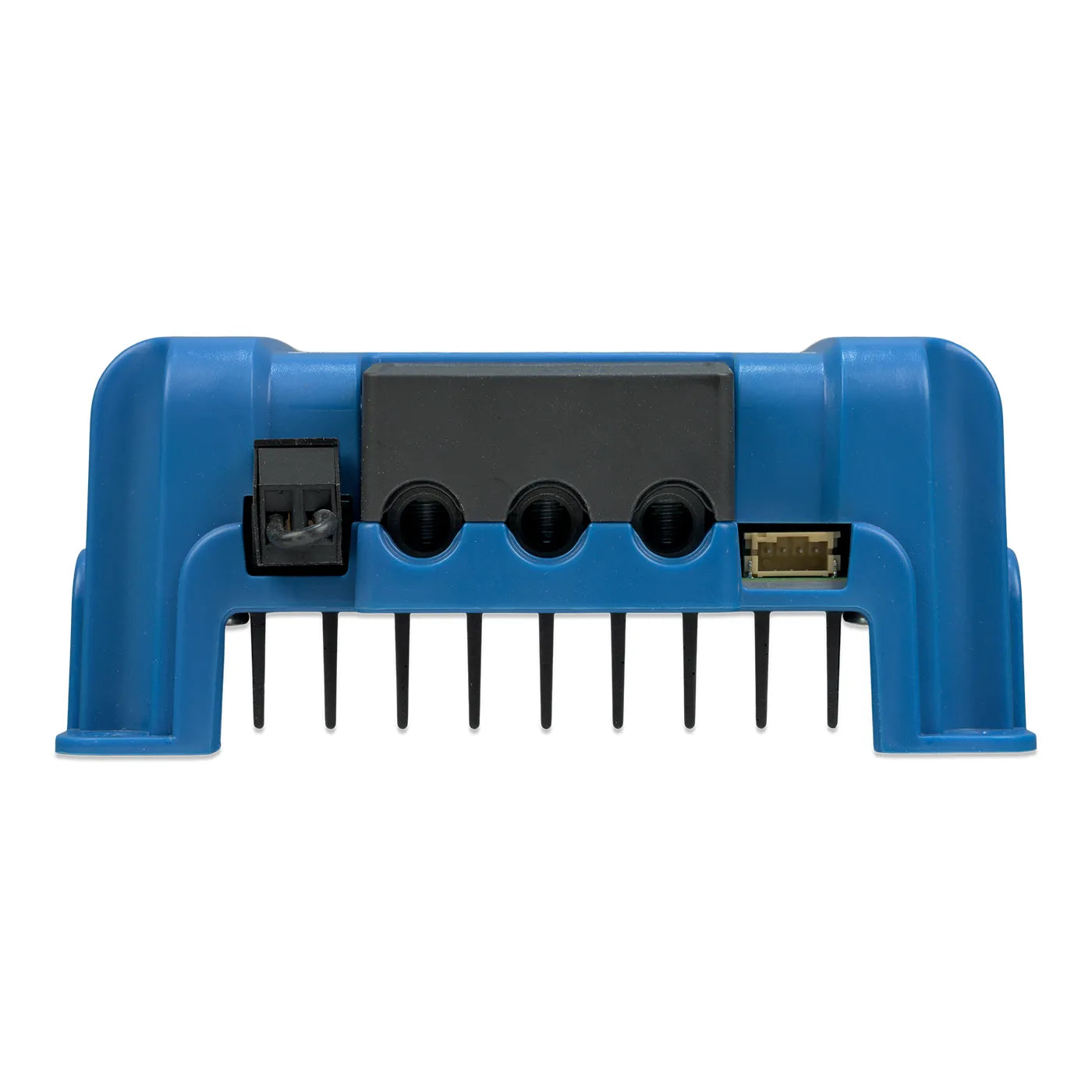

Orion XS 1400

Flexible for 12 V or 24 V systems

• Input Voltage: 9–35 V DC

• Output Voltage Adjust: 10–35 V DC

• Continuous Power: 1,400 W (50 A at 28 V) up to 40 °C

• Efficiency: 98.5 %

• Dimensions: 138.1 × 124.4 × 53 mm (5.44 × 4.9 × 2.1 in)

• Weight: 0.520 kg (1.14 lb)
