ePropulsion G-Series Lithium Batteries - 96V
Free shipping over $49 Batteries & Oversize Items Flat Rate $149
60-day hassle-free returns

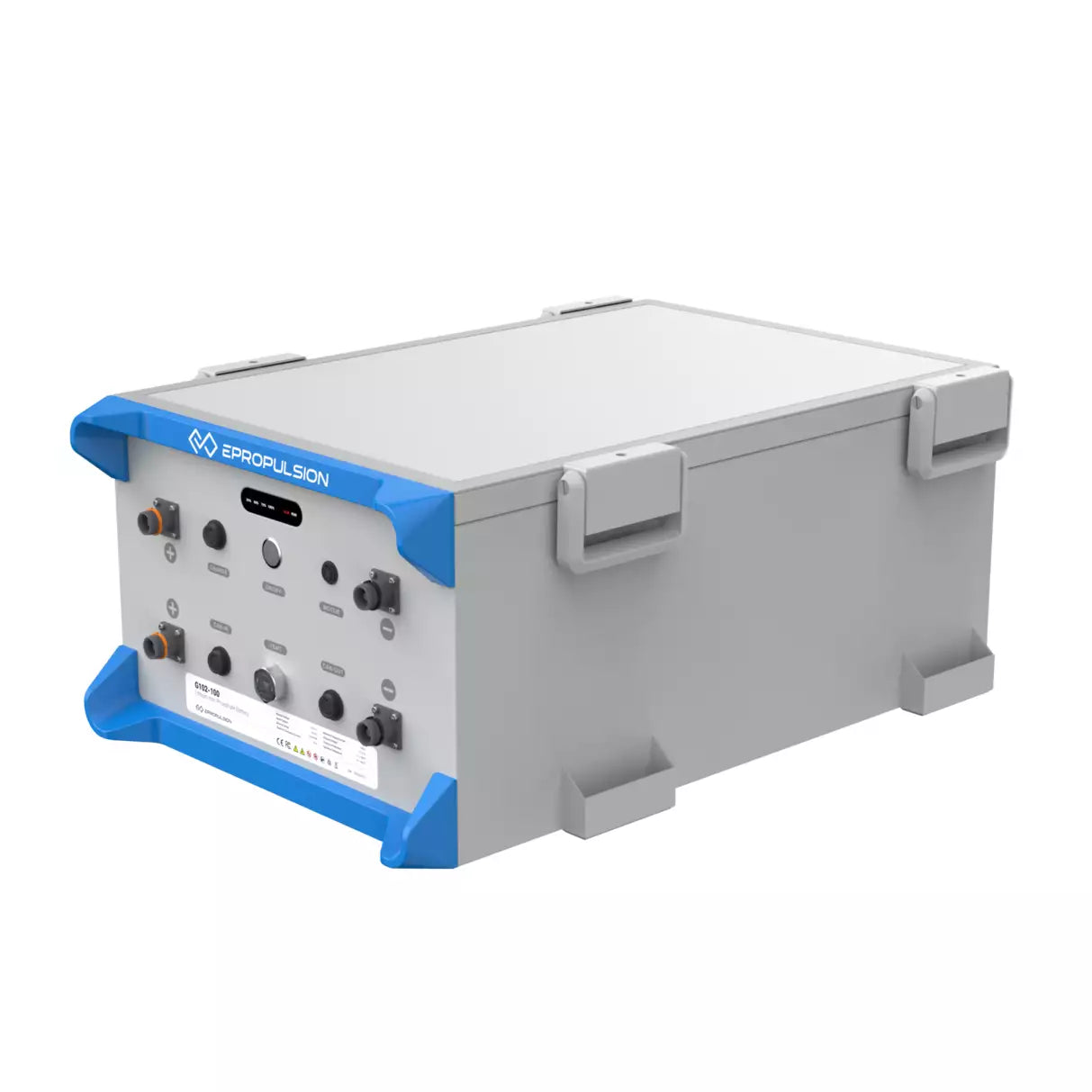

The ePropulsion G-Series Lithium Battery is engineered for high-performance electric boating, delivering exceptional power, durability, and safety. Utilizing advanced Lithium Iron Phosphate (LiFePO₄) chemistry and a sophisticated Battery Management System (BMS), the G-Series offers a reliable energy solution for demanding marine applications.
Designed to seamlessly integrate with ePropulsion's 96V systems, including the I-Series inboards, X-Series outboards, and Pod Drive eSSA, the G-Series ensures optimal performance and longevity. Its robust all-metal housing provides enhanced protection against environmental factors, while the IP67 waterproof rating guarantees resilience in harsh marine conditions.
Key Features:
-
High Energy Density: Offers up to 3 times the energy density and 70% less weight compared to traditional lead-acid batteries.
-
Extended Cycle Life: Delivers up to 3,500 cycles at 80% Depth of Discharge (DOD), significantly outlasting conventional batteries.
-
Advanced Safety: Equipped with an intelligent BMS for real-time monitoring and multi-layer protection.
-
Effortless Installation: Features one-handed connectors and reduces wiring complexity, eliminating the need for series-parallel connections.
-
Robust Construction: Encased in an all-metal housing that is impact-resistant, weatherproof, and drop-proof.
-
Seamless Integration: Fully compatible with ePropulsion motors, enabling smart operation strategies through synchronized data exchange.
Specifications:

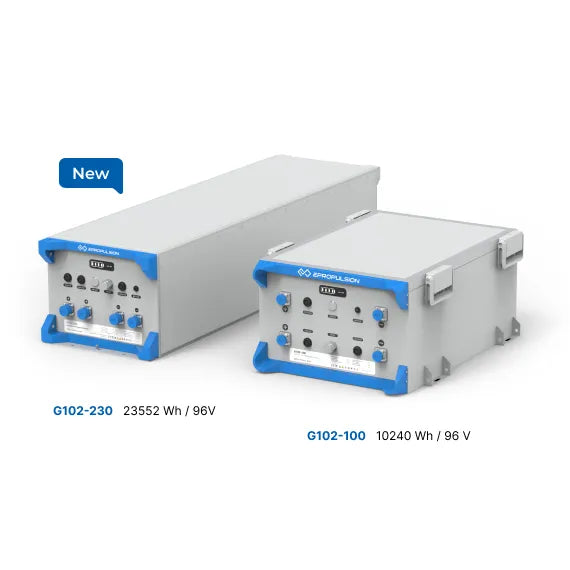

| Specification | G102-100 | G102-230 |
|---|---|---|
| Chemistry | LiFePO₄ | LiFePO₄ |
| Rated Voltage | 102.4 V | 102.4 V |
| Capacity | 10,240 Wh / 100 Ah | 23,552 Wh / 230 Ah |
| Cycle Life | 3,000 cycles @ 80% DOD | 3,500 cycles @ 80% DOD |
| Weight | 100 kg (220.5 lbs) | 180 kg (396.8 lbs) |
| Dimensions (L × W × H) | 680 × 500 × 300 mm | 1,287 × 366 × 295 mm |
| Dimensions (inches) | 26.8 × 19.7 × 11.8 in | 50.7 × 14.4 × 11.6 in |
| Cut-off Voltage | 83.2 V | 83.2 V |
| Final Charging Voltage | 115.2 V | 115.2 V |
| Max Continuous Discharge Current | 100 A | 230 A |
| Parallel Connection | Up to 8 in 1 cluster | Up to 8 in 1 cluster |
| Cell Configuration | 32S1P | 32S1P |
| Charging Temperature | 0°C to 55°C | 0°C to 55°C |
| Discharging Temperature | -10°C to 60°C | -10°C to 60°C |
| Communication Interfaces | CAN for motor, parallel batteries, and charger | CAN for motor, parallel batteries, and charger |
| Ingress Protection | IP67 | IP67 |
| Certifications | CE, UKCA, FCC, UN38.3 | CE, UKCA, FCC, UN38.3 |
| Warranty (Non-Commercial Use) | 2 years | 2 years |
